Nano
Nano

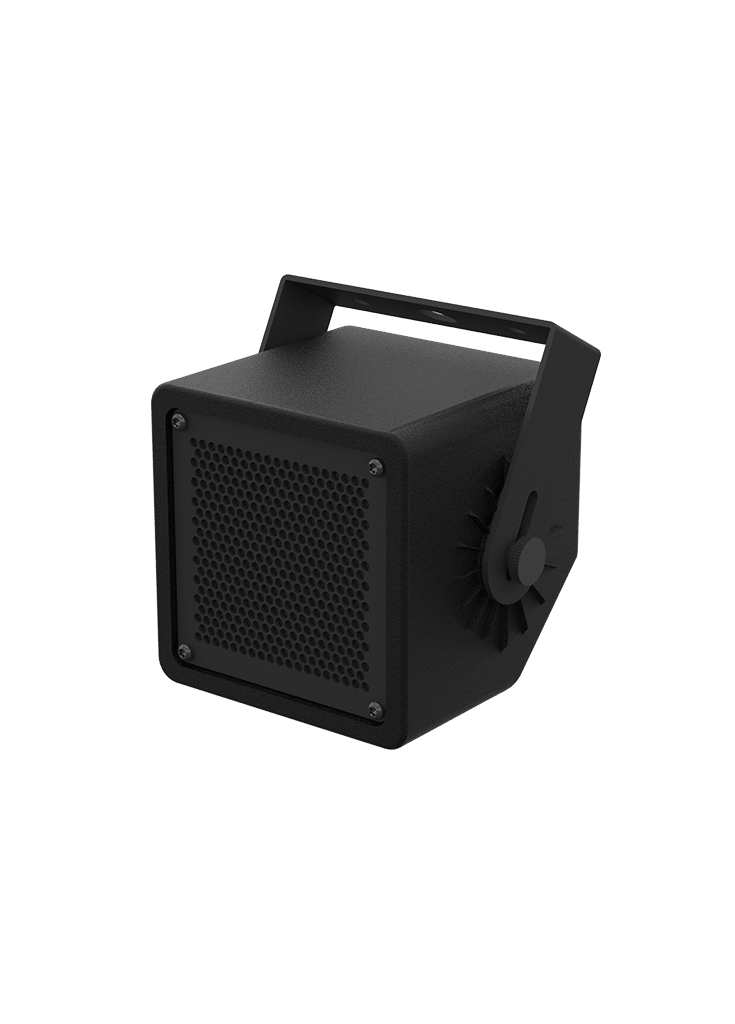

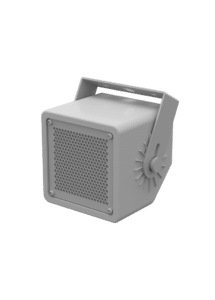

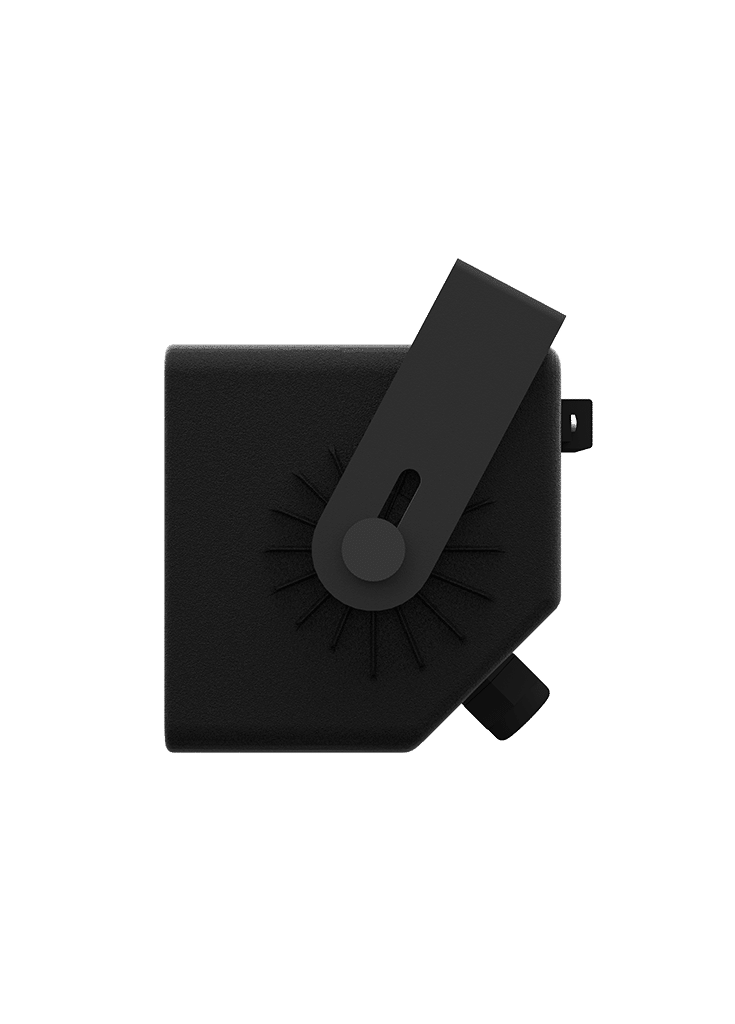

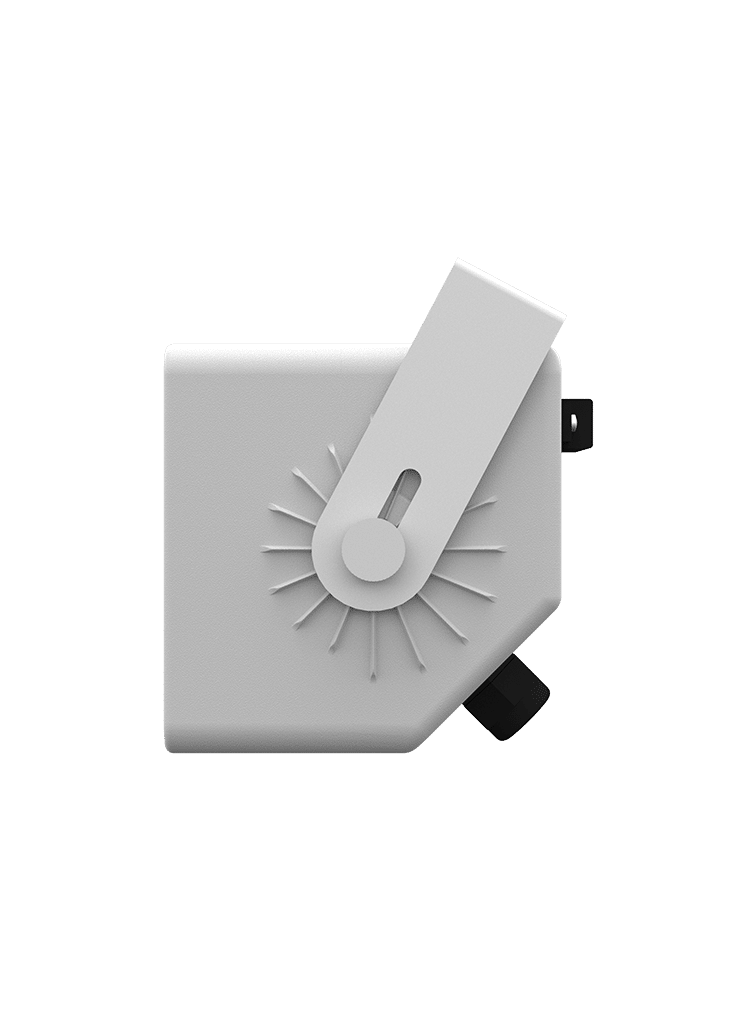

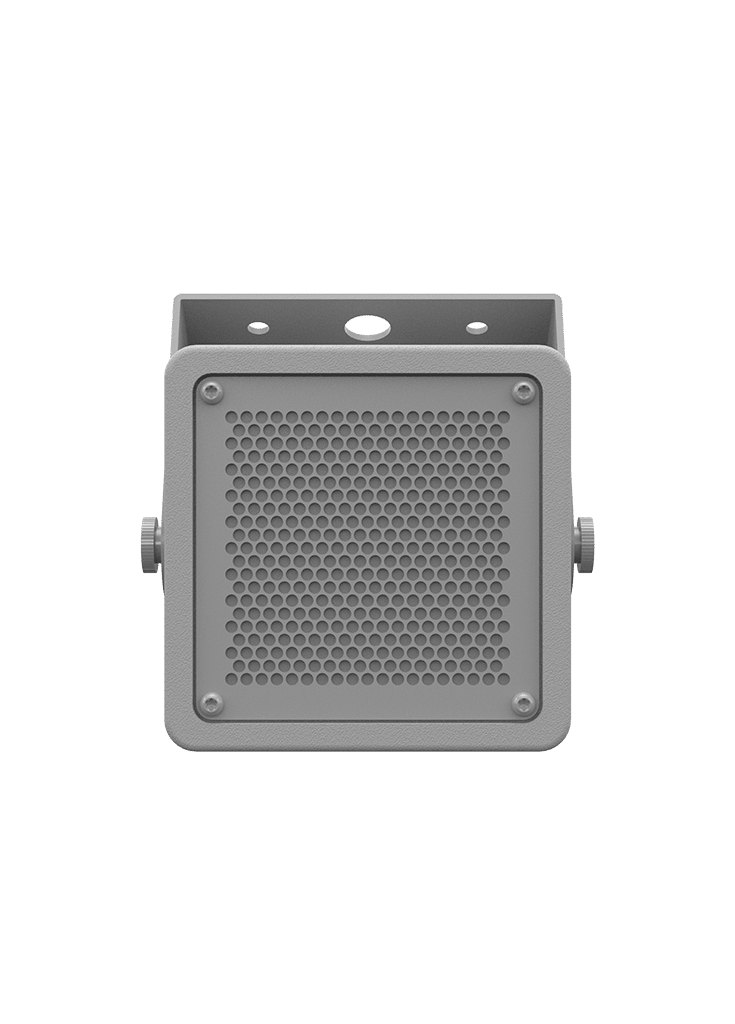

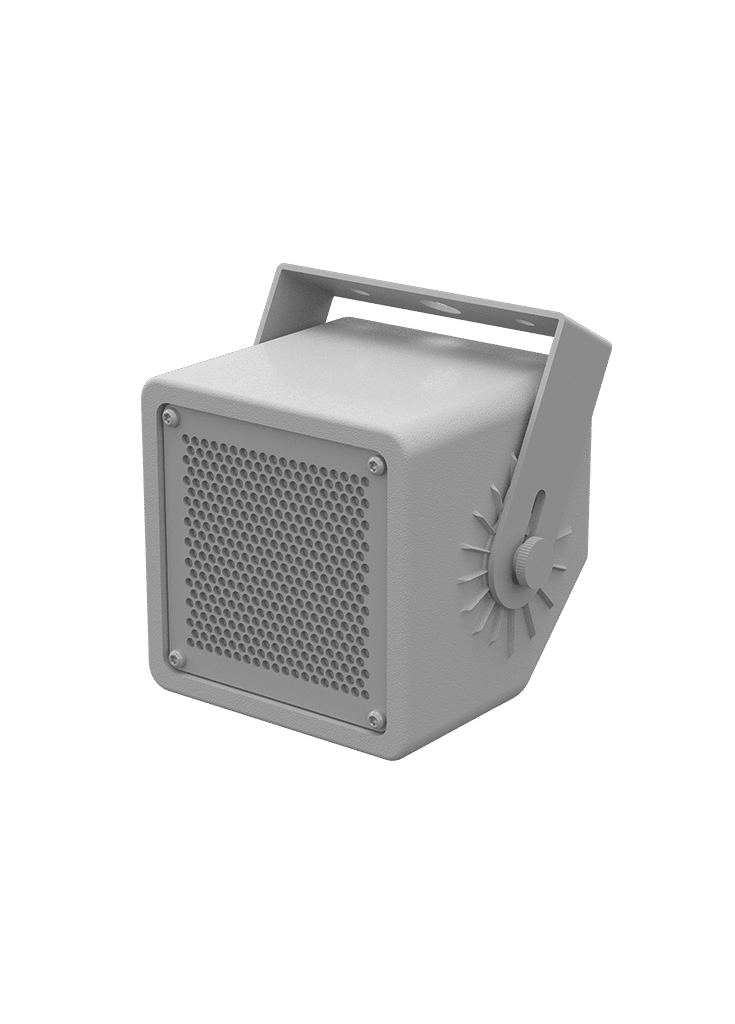

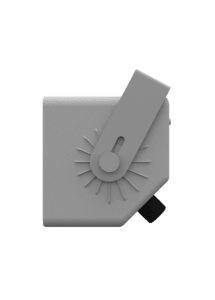

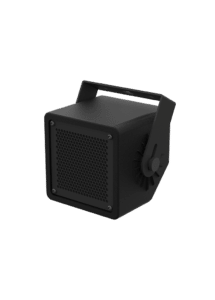

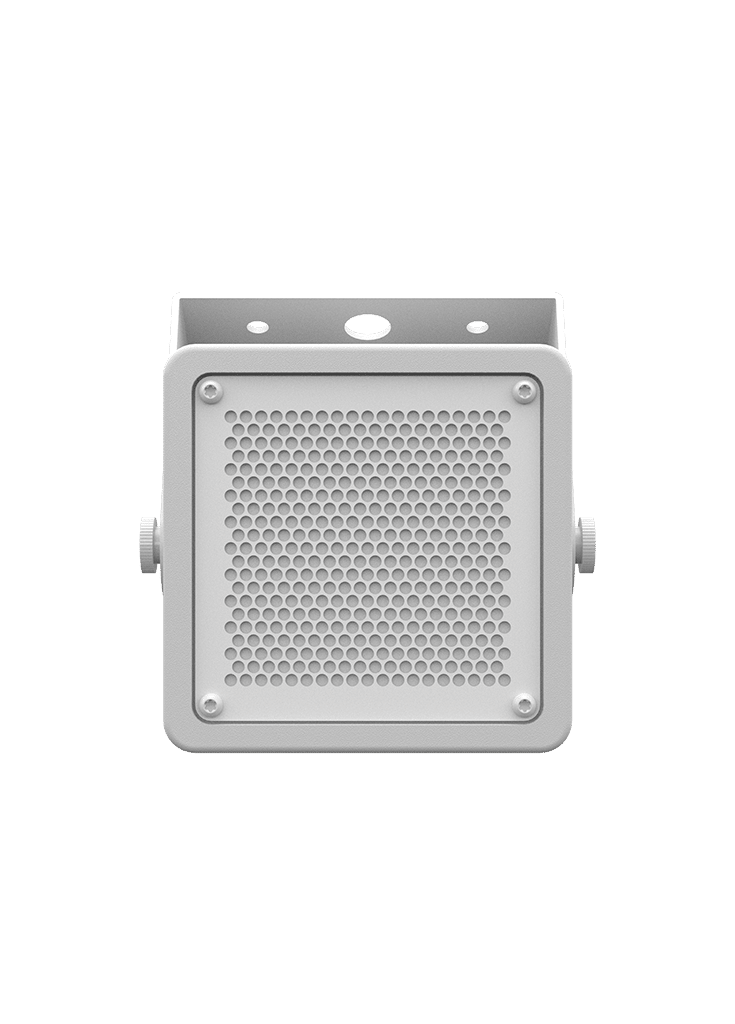

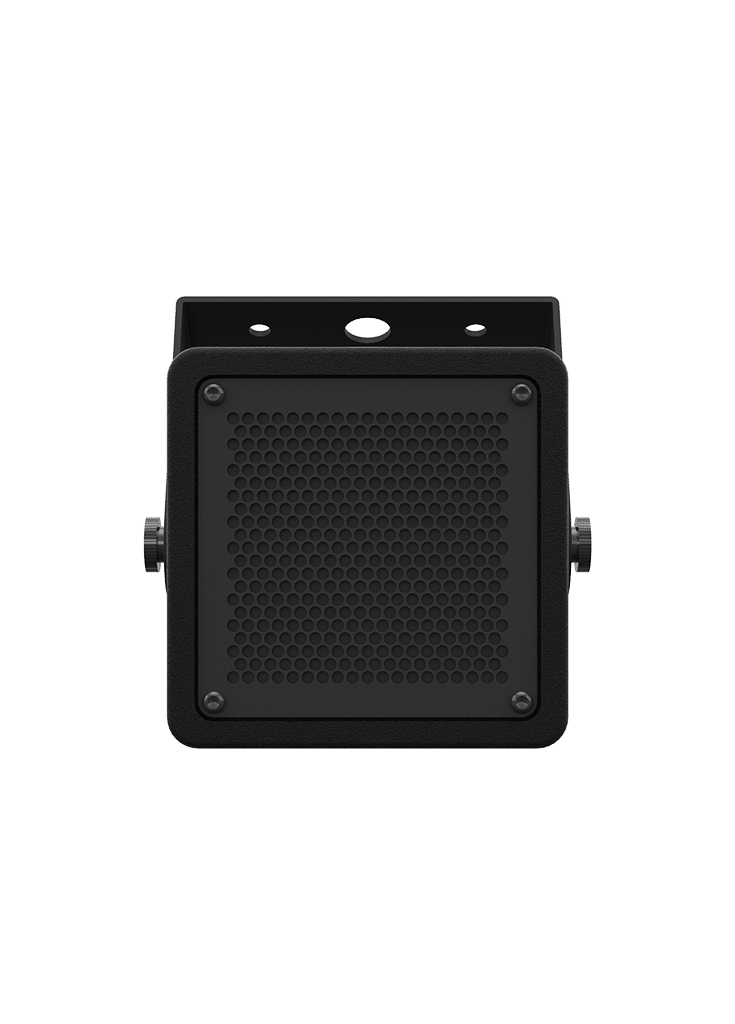

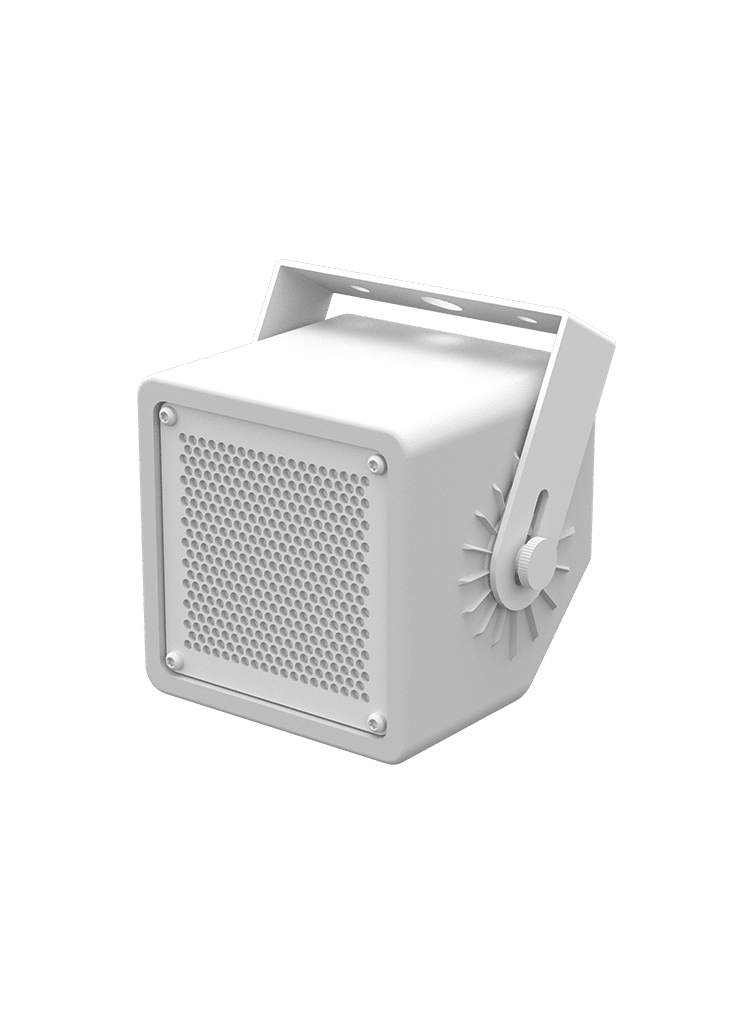

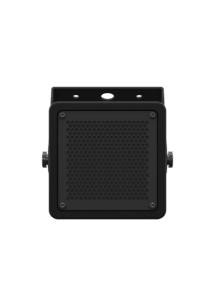

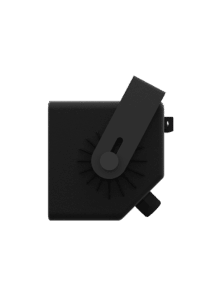

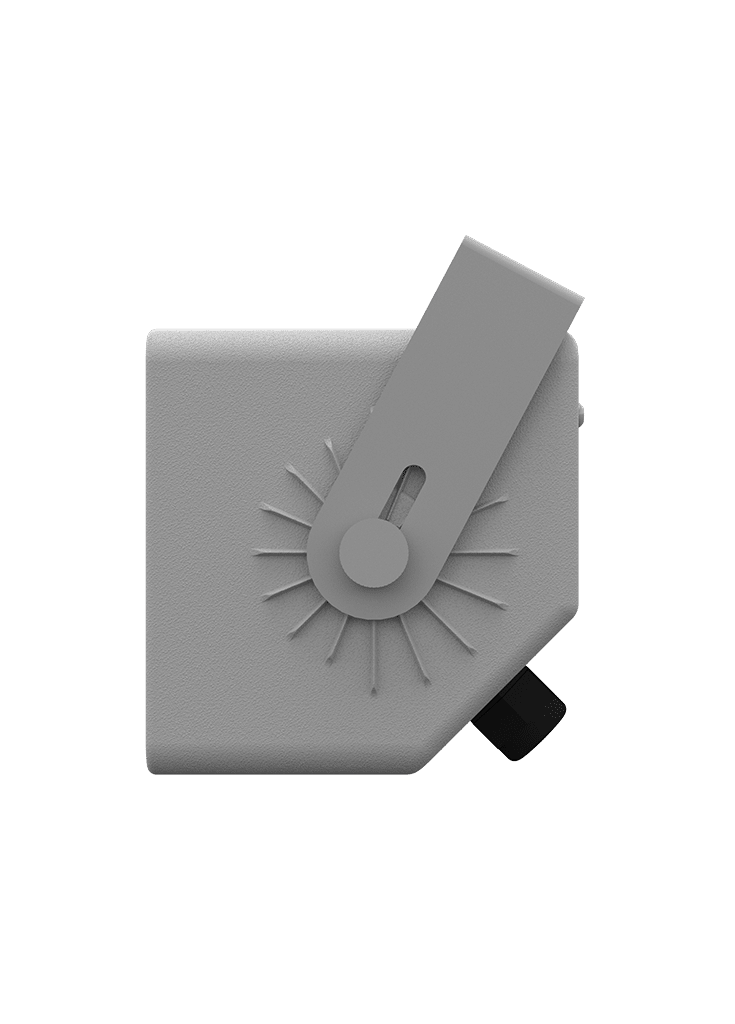

If you’re in need of big performance without a lot of room to spare, we have the answer for you. The Nano is the smallest member of the Danley product line, and yet it delivers sound and power almost unheard of for a speaker of its size. It is intended to be used in distributed 70-volt systems, supplemental fills, or stereo satellites with subwoofer systems. In fact, its combination of ultra-compact size, high fidelity, and intelligibility makes the Nano a perfect alternative to competitive units using soft dome tweeters.
coverage Pattern
110° Conical
operating frequency range
136 Hz – 21 kHz -10 dB
continuous output
102 dBSPL
peak output
108 dBSPL
sensitivity
89 dBSPL (Measured as 2.83V input, 1M whole space)
driver complement
1 x 3”
dimensions
5″ x 5″ x 5″
weight
4 lbs.
Rated Impedance
8 ohms or 70V taps 20w/10w/5w
Power Rating
20W
