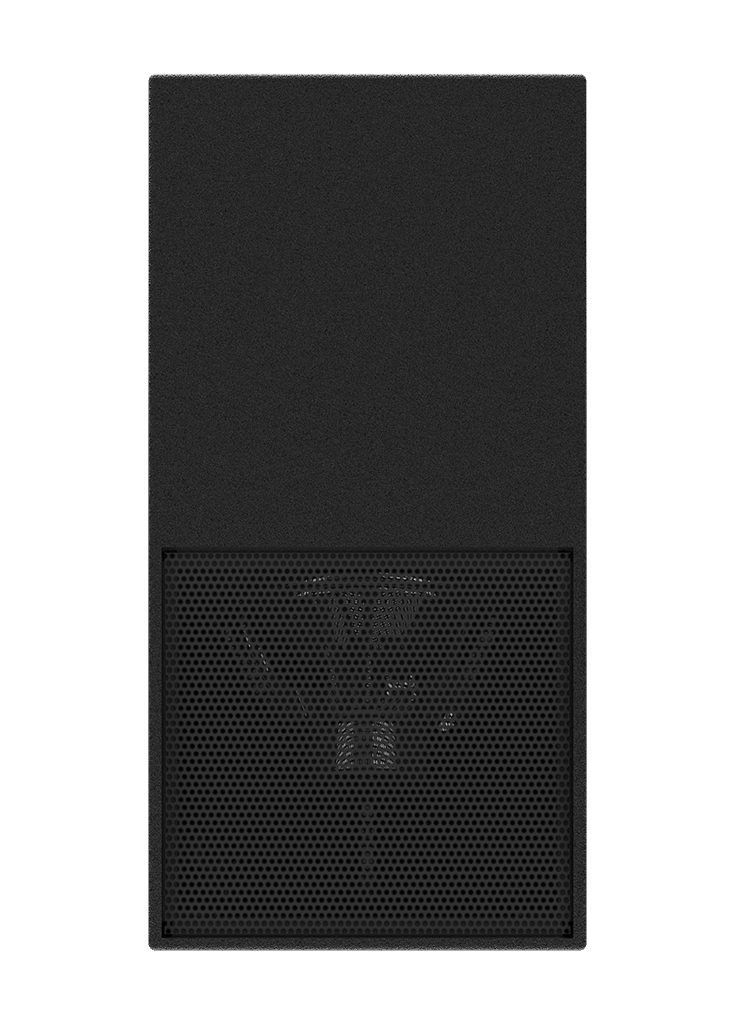

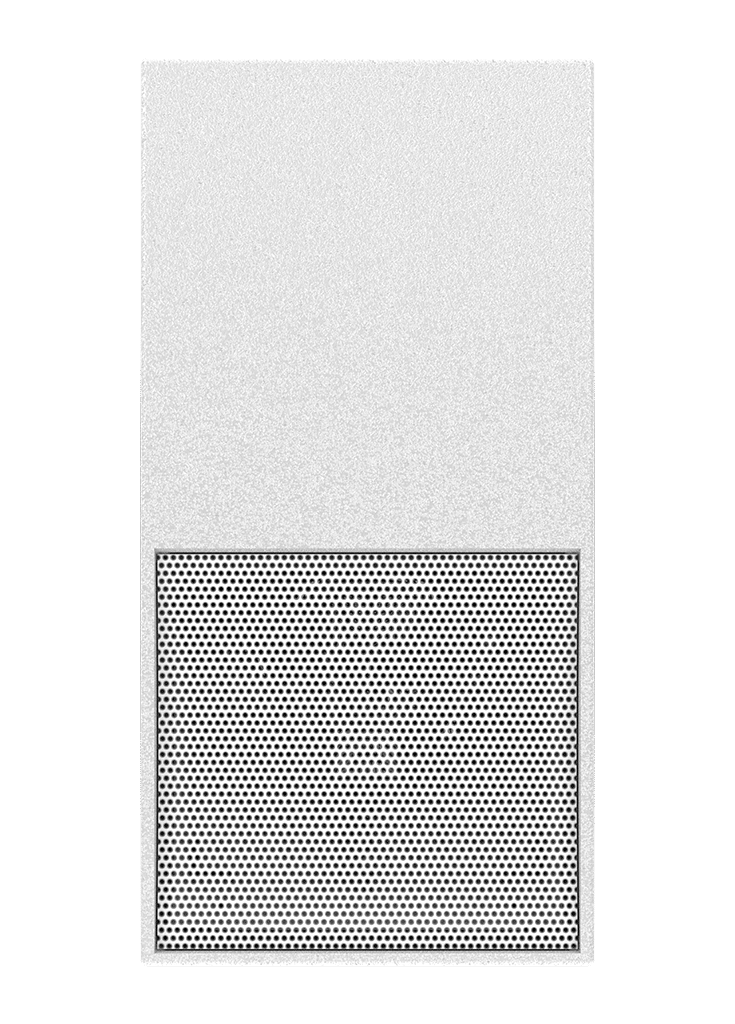

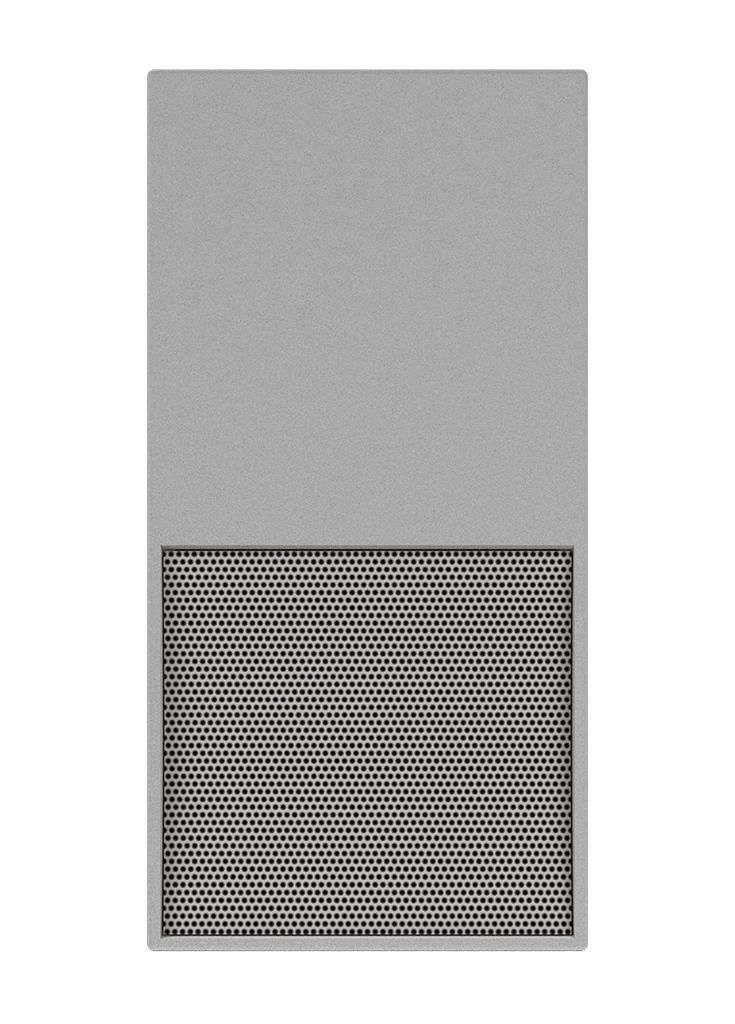

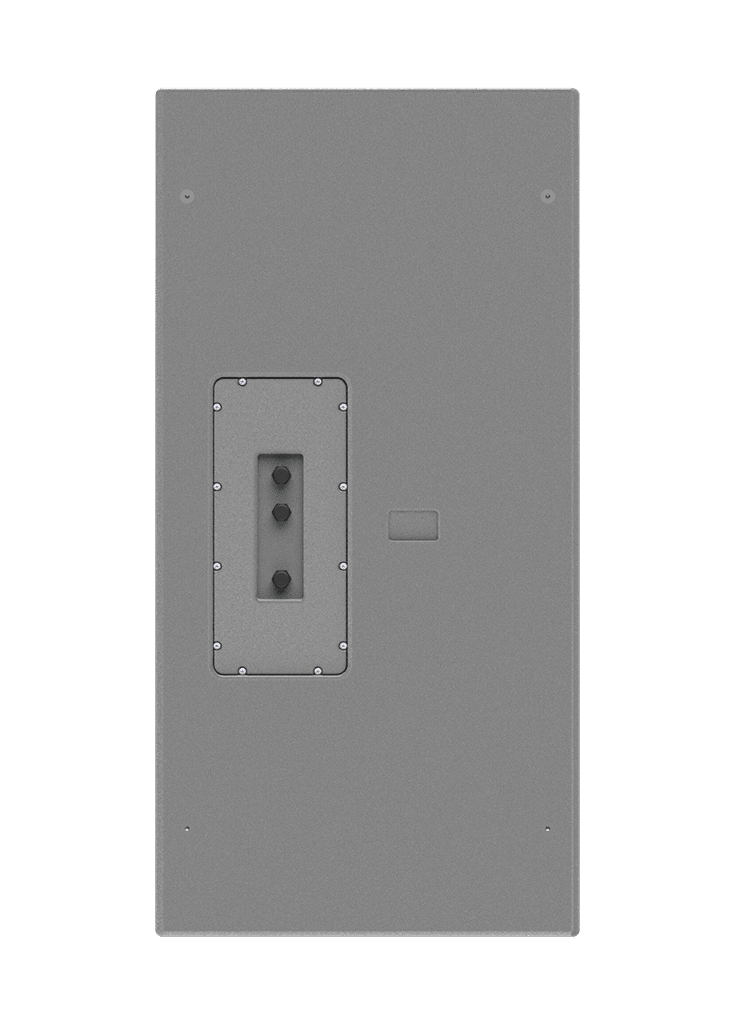

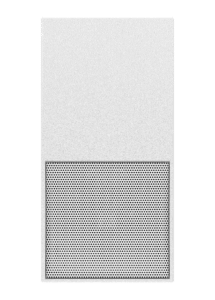

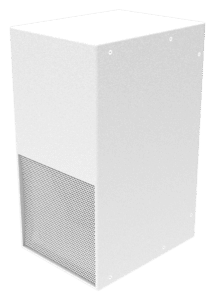

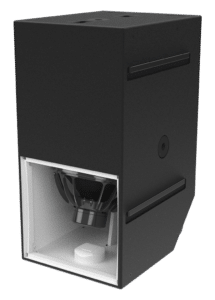

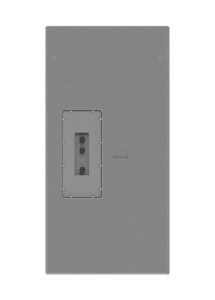

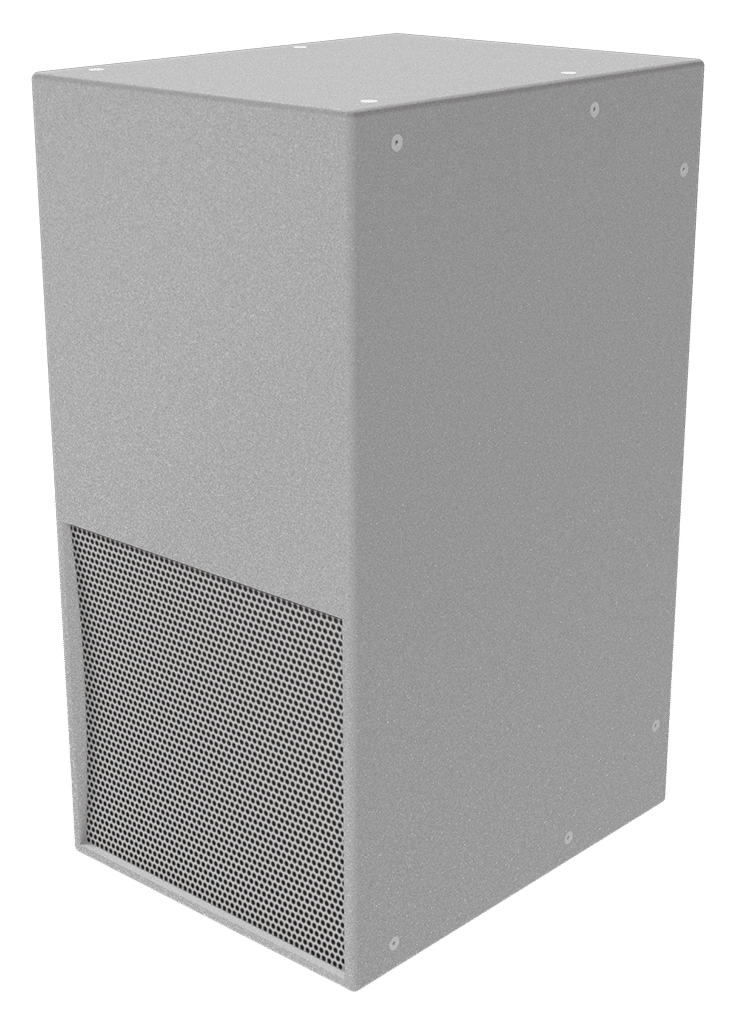

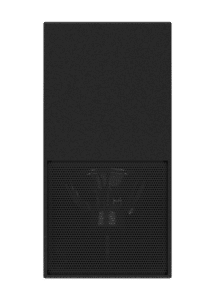

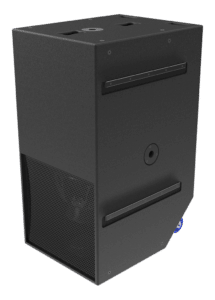

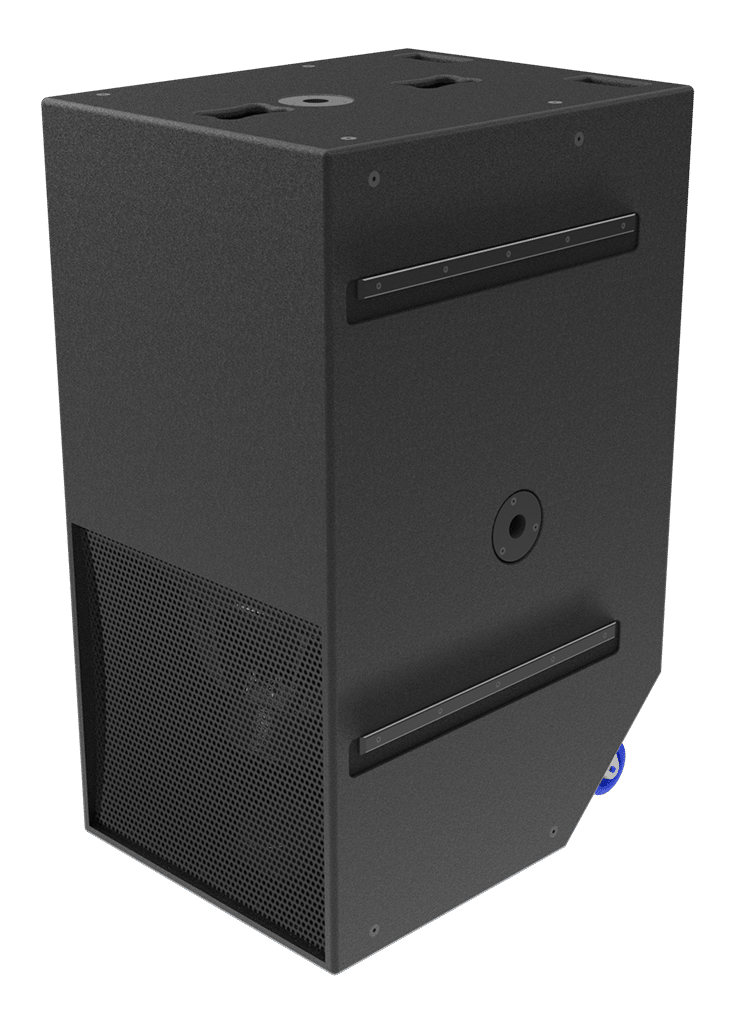

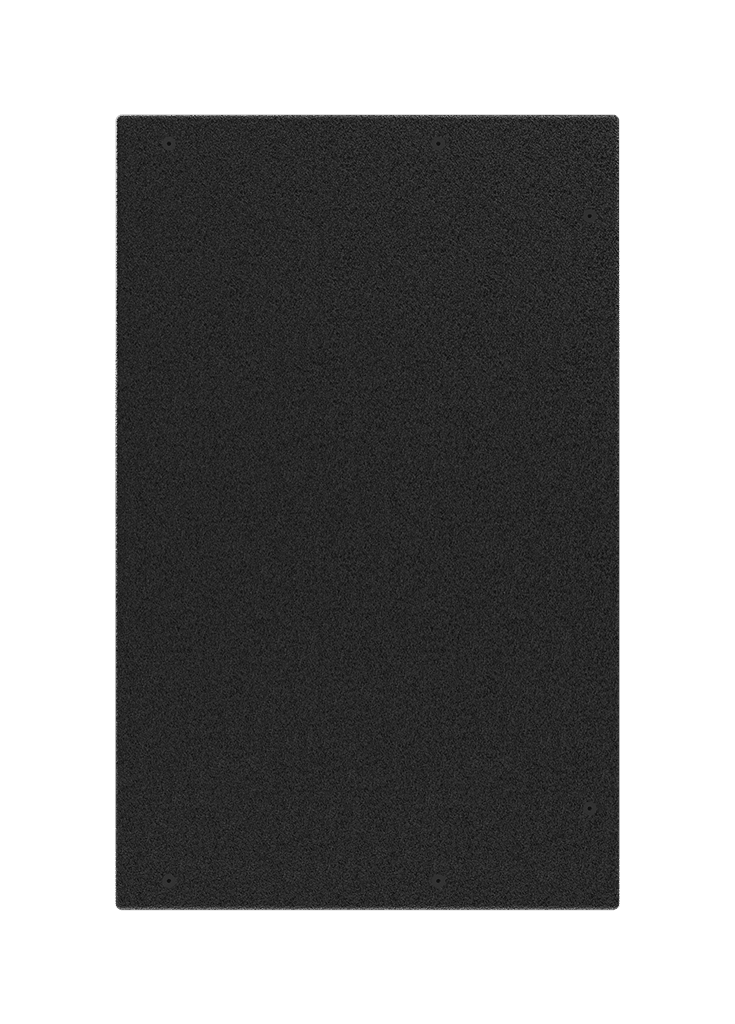

TH118XL

TH118XL

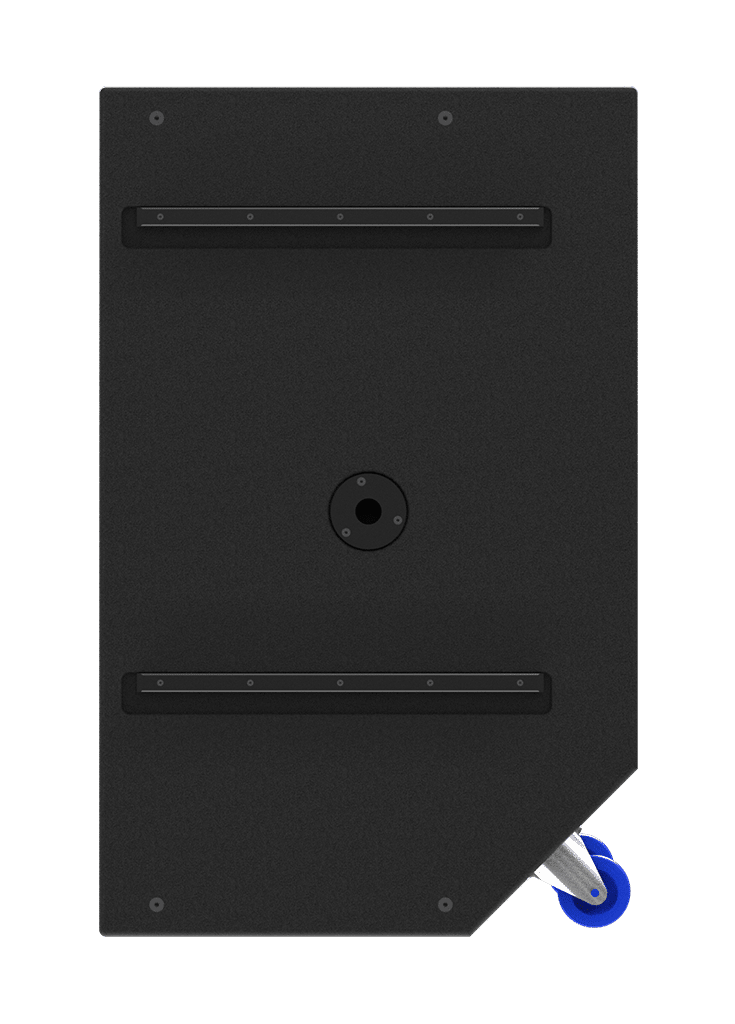

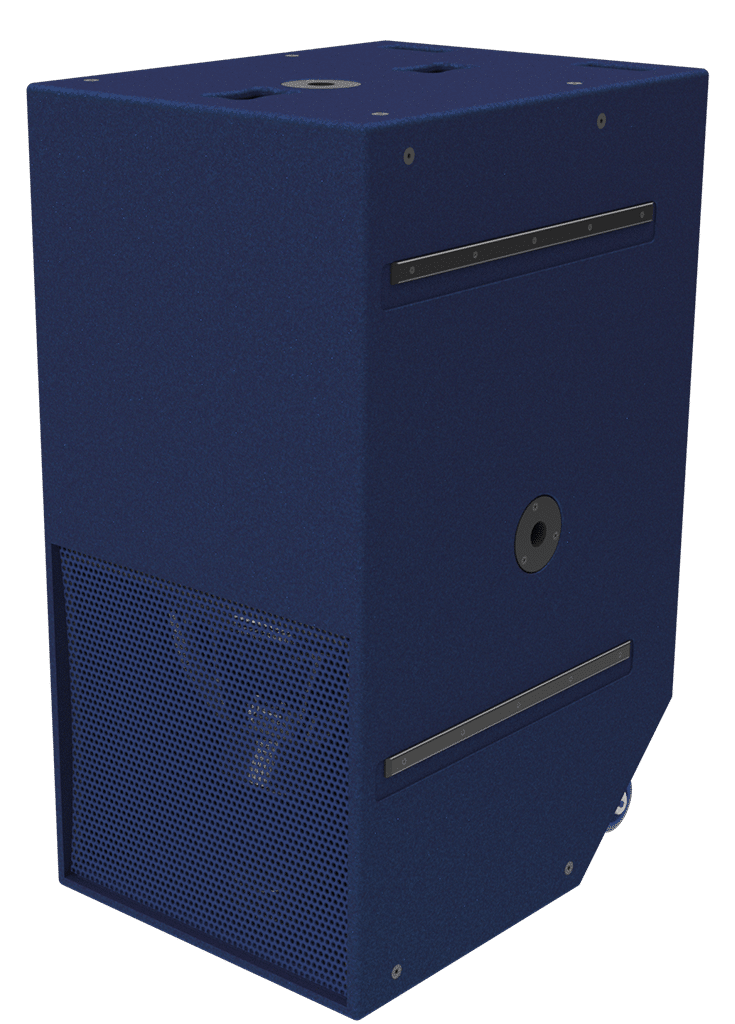

A variation of the famous TH118, this subwoofer is equally useful indoors and out and produces extreme power on the low end. The tapped horn design takes full advantage of the driver element by doubling its output ability. The result is more volume from less input. Combine that attribute with the high-power handling of the driver and you have one of the most powerful subwoofers on the market. In fact, a single TH118XL can easily take the place of two standard 2×18-inch, front-loaded cabinets. The TH118XL also allows you to reduce overall cost and physical size while utilizing fewer amplifiers to achieve a particular output. Interlocking skids on top and bottom of the cabinet allow it to be stacked for even greater output. The skids line up with the SH96/96HOs for a very stable stack.

Product Specifications

Operating Frequency Range
35 Hz – 150 Hz -4 dB
26 Hz – 300 Hz -10dB
Continuous Output
134 dB SPL
Peak Output
140 dB SPL
Sensitivity
105 dB SPL (2.83 Volts into rated Z, at 1 meter), measured in half space
Driver Complement

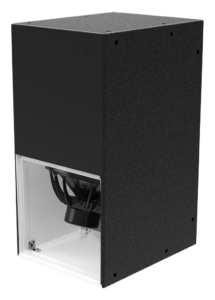

one 18″ long excursion woofer
Dimensions
45 X 22.5 X 28.5 inches
Weight
185 lbs
Rated Impedance
4 Ohms
Power Rating
1,700 W continuous
3,400 W program
