Lower and louder

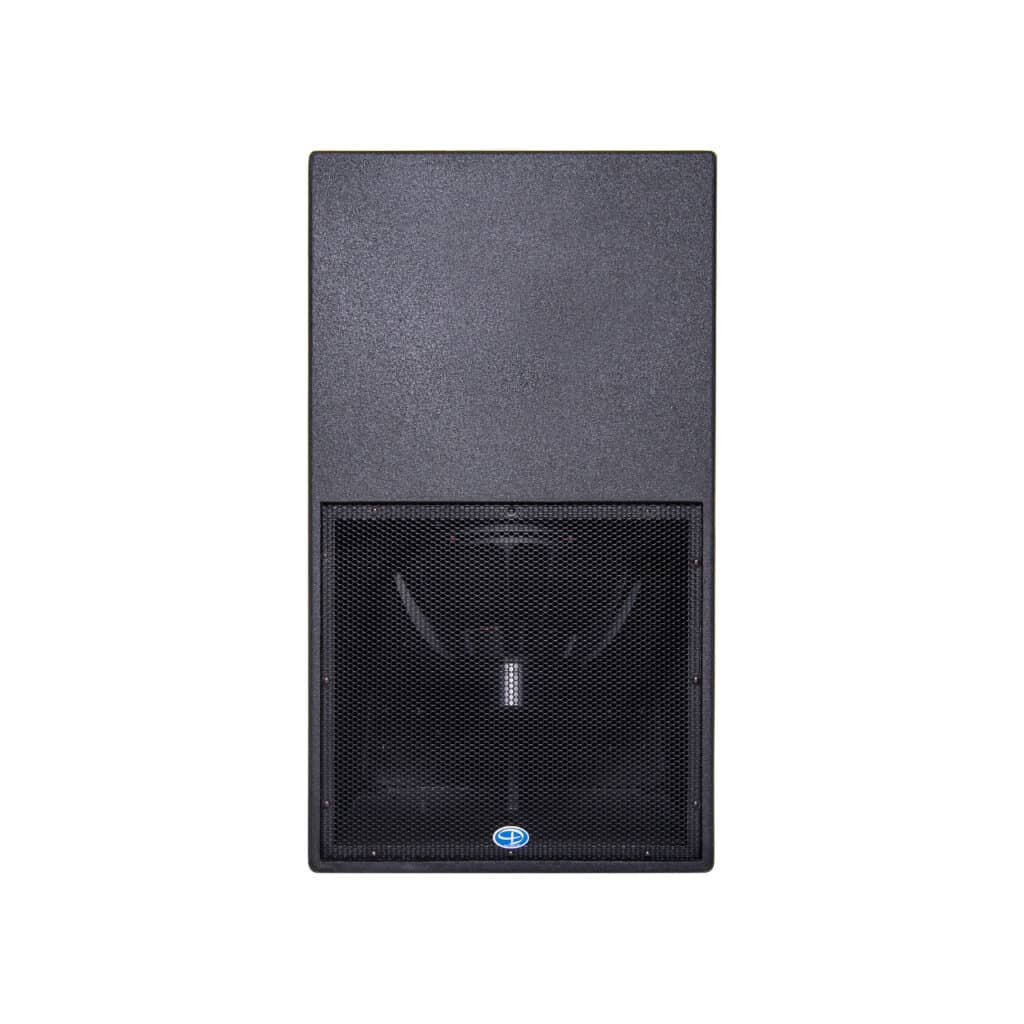

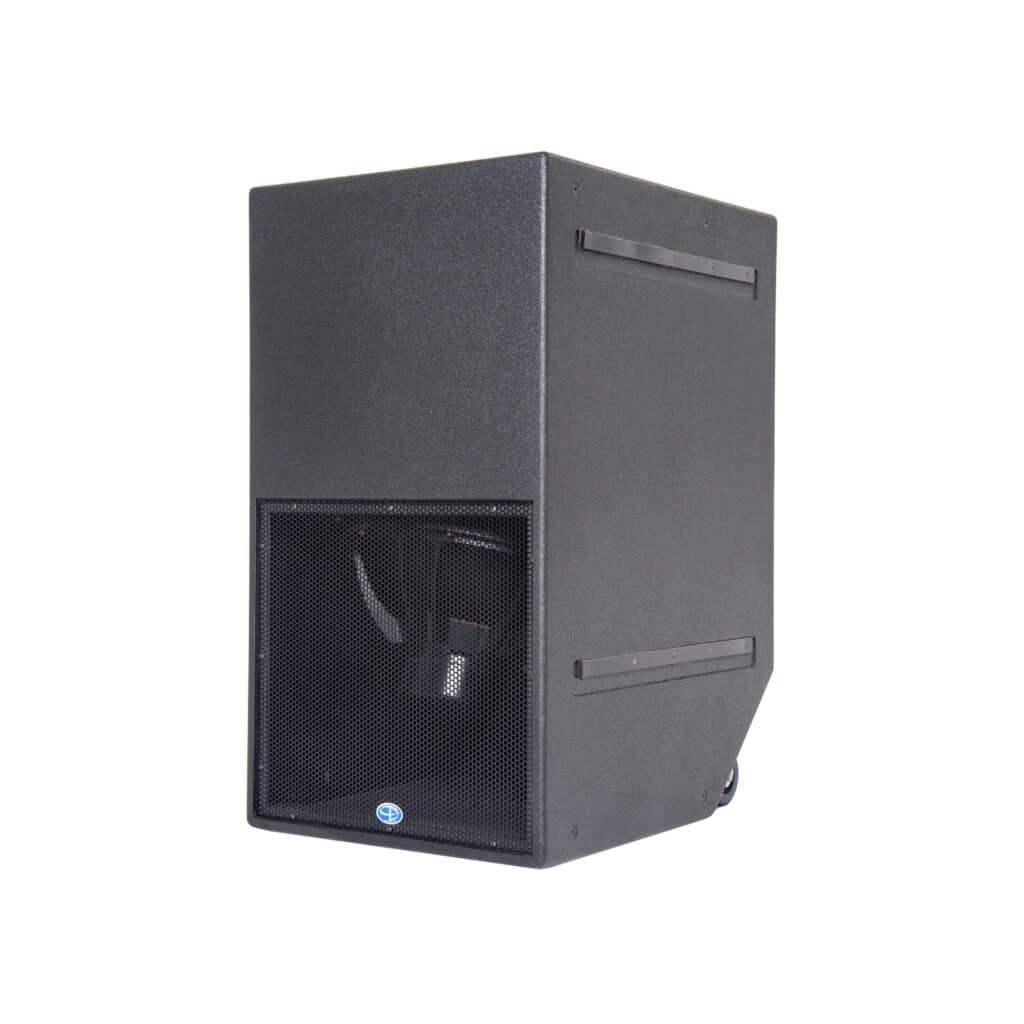

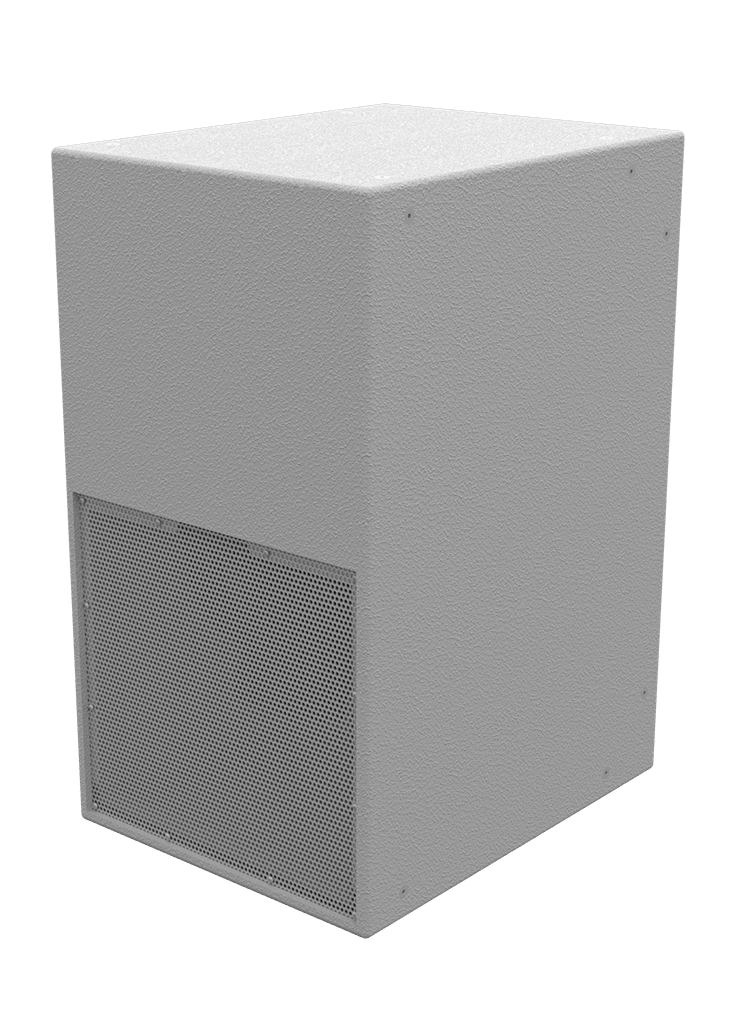

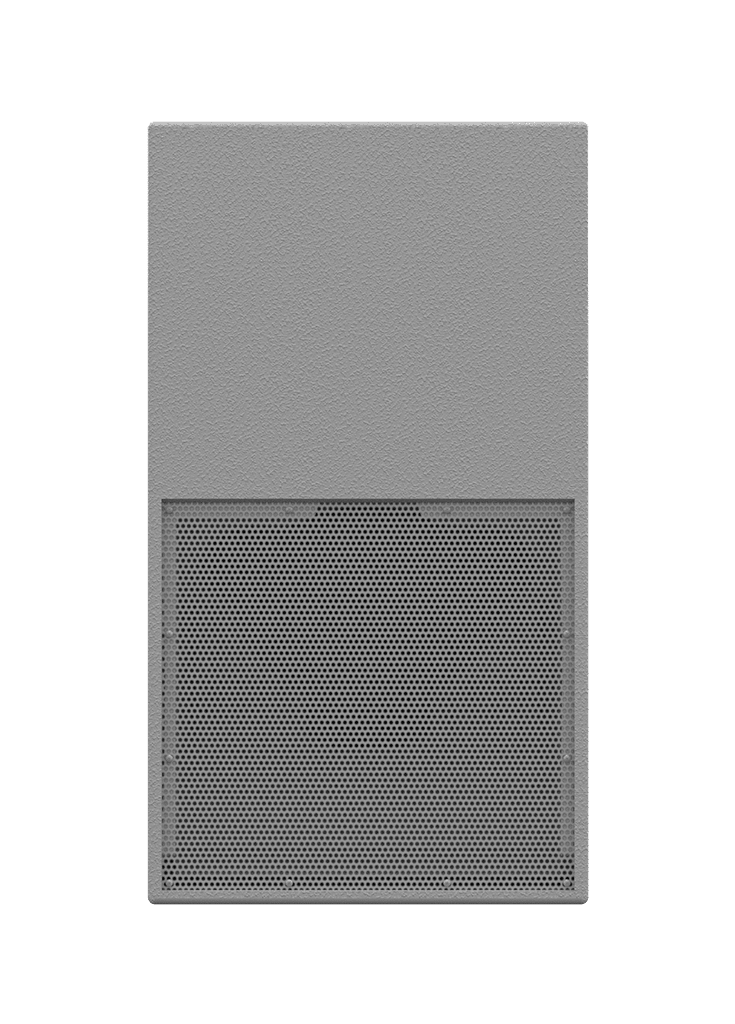

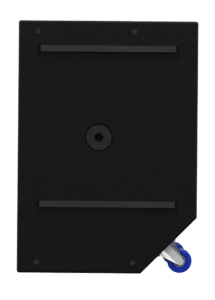

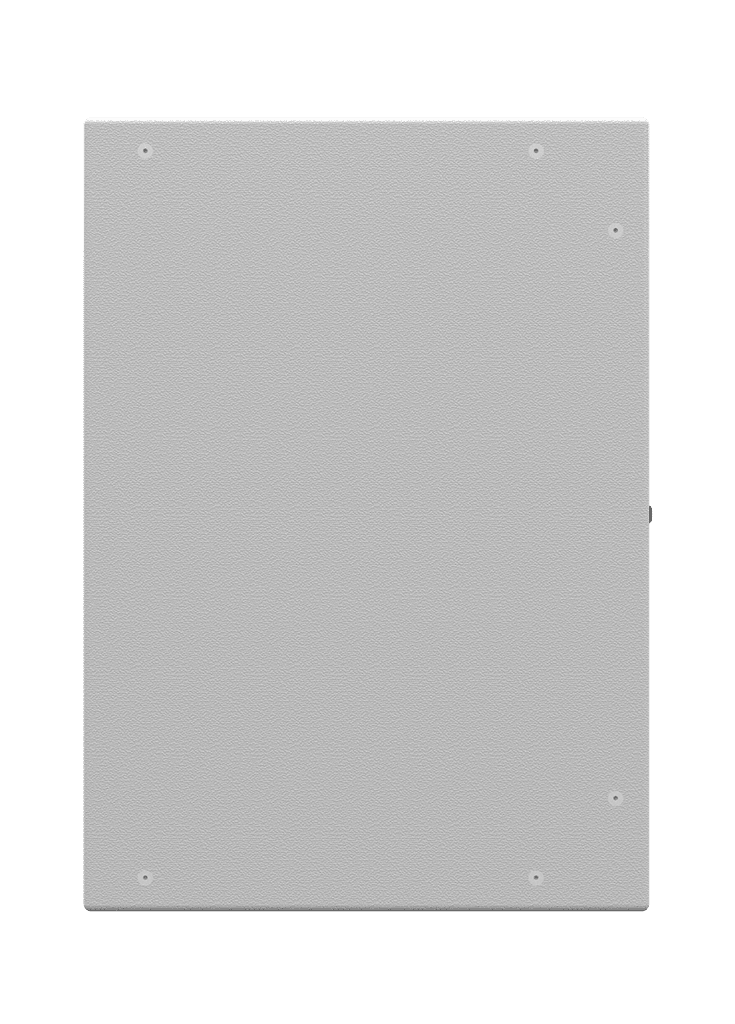

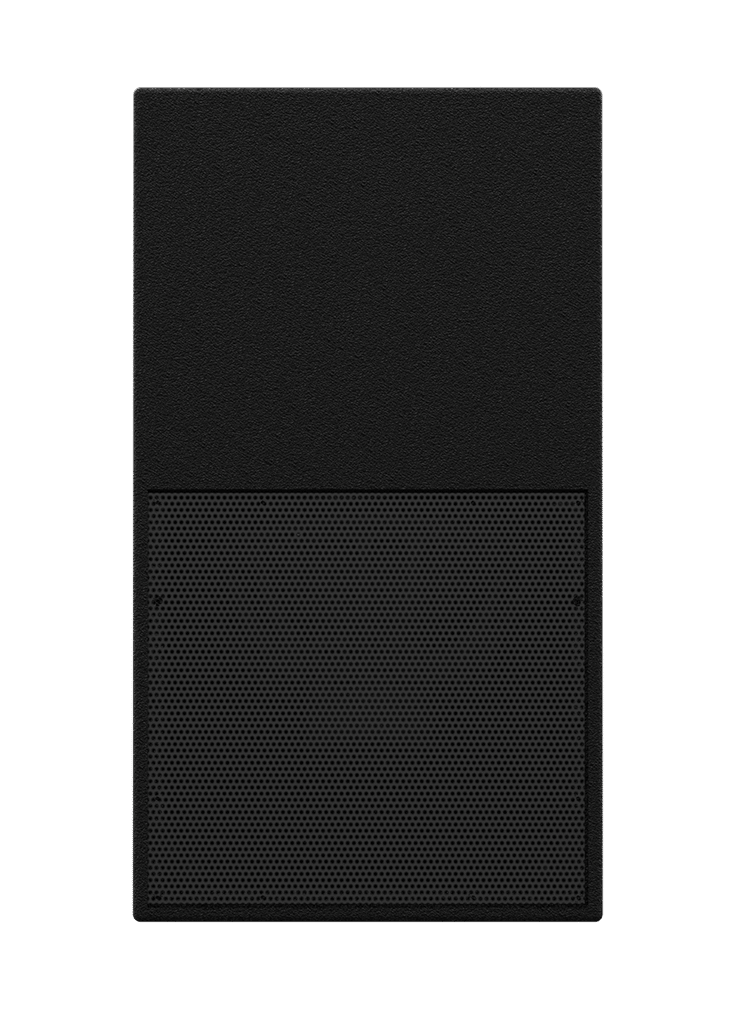

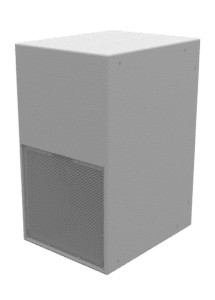

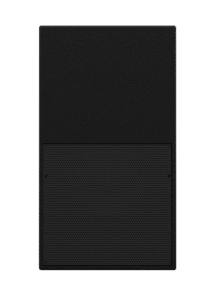

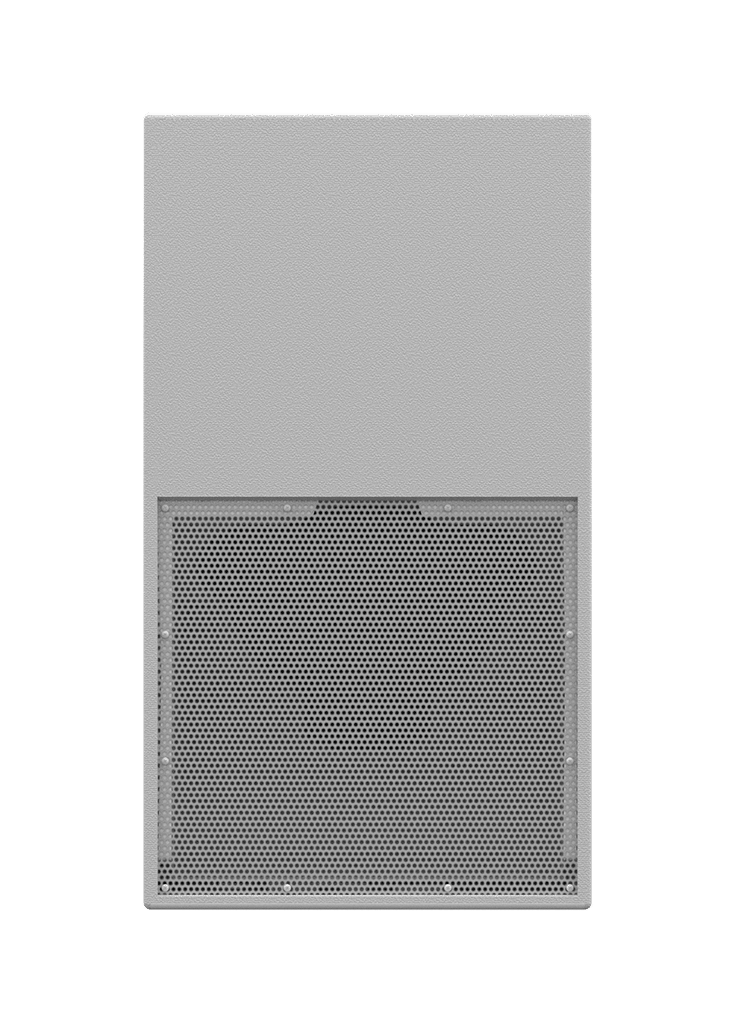

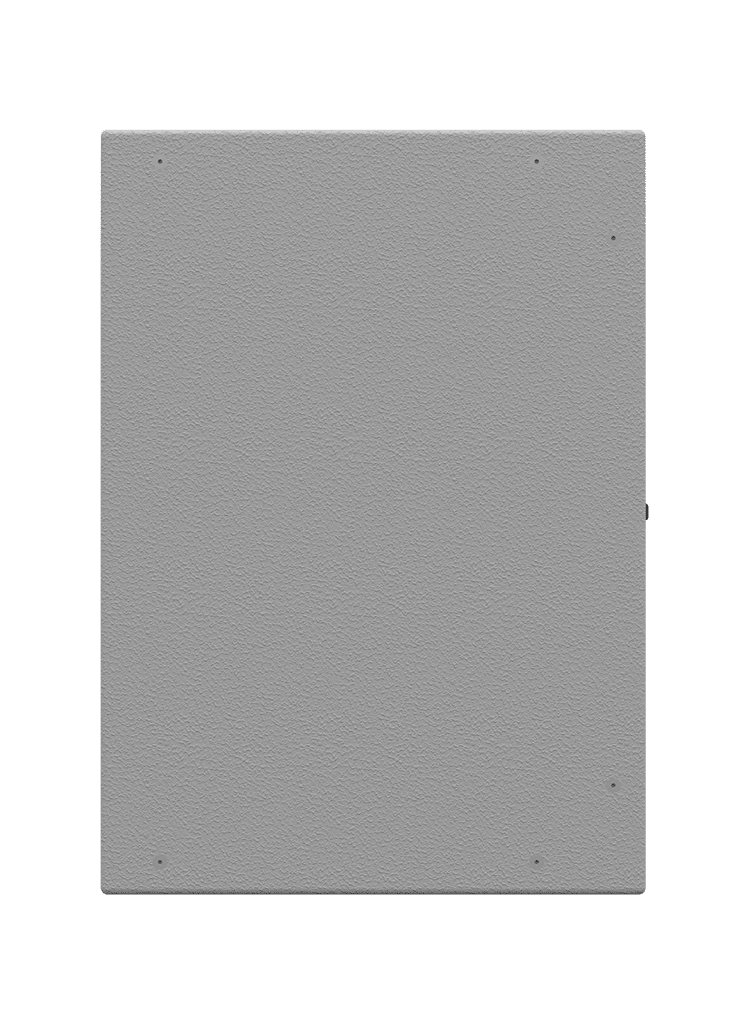

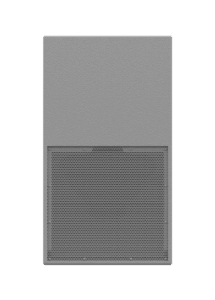

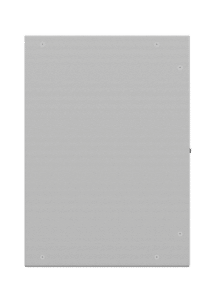

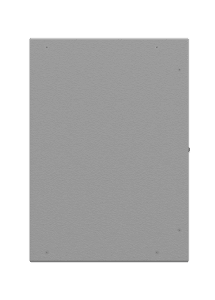

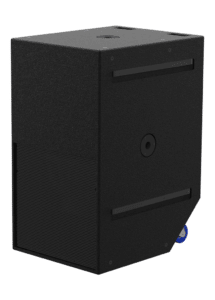

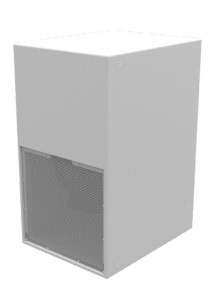

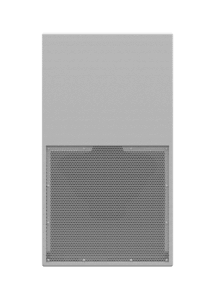

TH118
TH118
The efficiency at the low end of the TH118 comes thanks to our patented horn technology. This sub is also virtually linear in its passband. In fact, it would take several conventional front-loaded subwoofers to try to equal the output of a single TH118.
Product Specifications
Operating Frequency Range
37 Hz – 213 Hz -4 dB
29 Hz – 300 Hz -10dB
29 Hz – 300 Hz -10dB
Continuous Output
134 dB SPL
Peak Output
140 dB SPL
Sensitivity
105 dB SPL (2.83 Volts into rated Z, at 1 meter), measured in half space
Driver Complement
one 18″ long excursion woofer
Dimensions
40 X 22.5 X 28.5 inches
Weight
160 lbs
Rated Impedance
4 Ohms
Power Rating
1,700 W continuous
3,400 W program
3,400 W program
