Compact design for tour sound or cinema

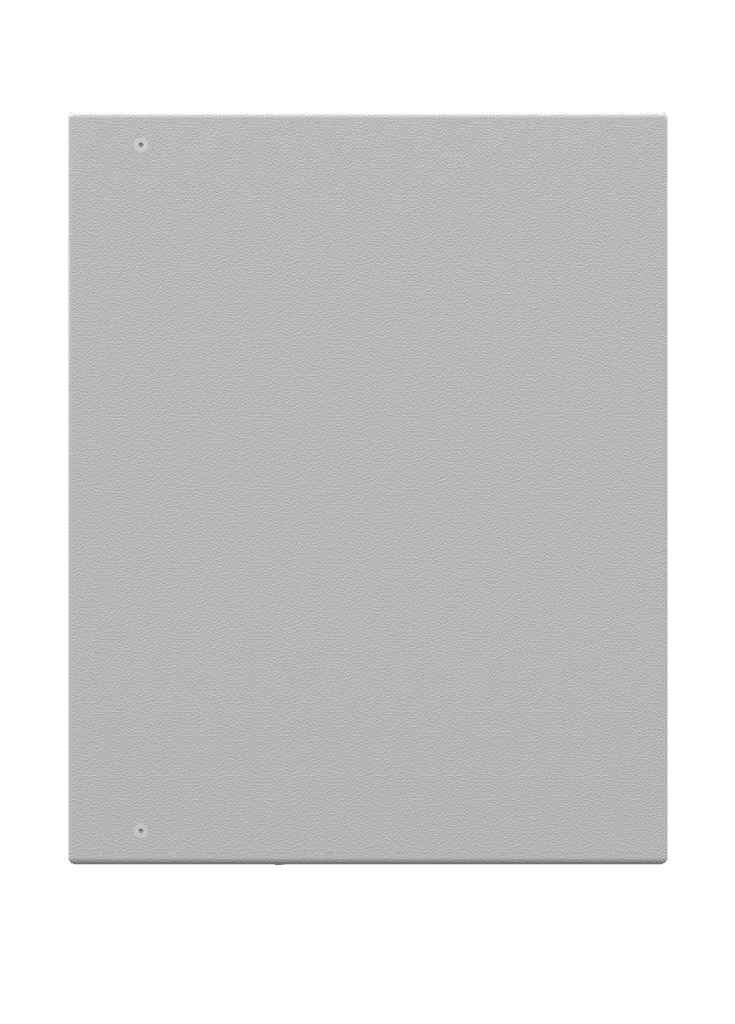

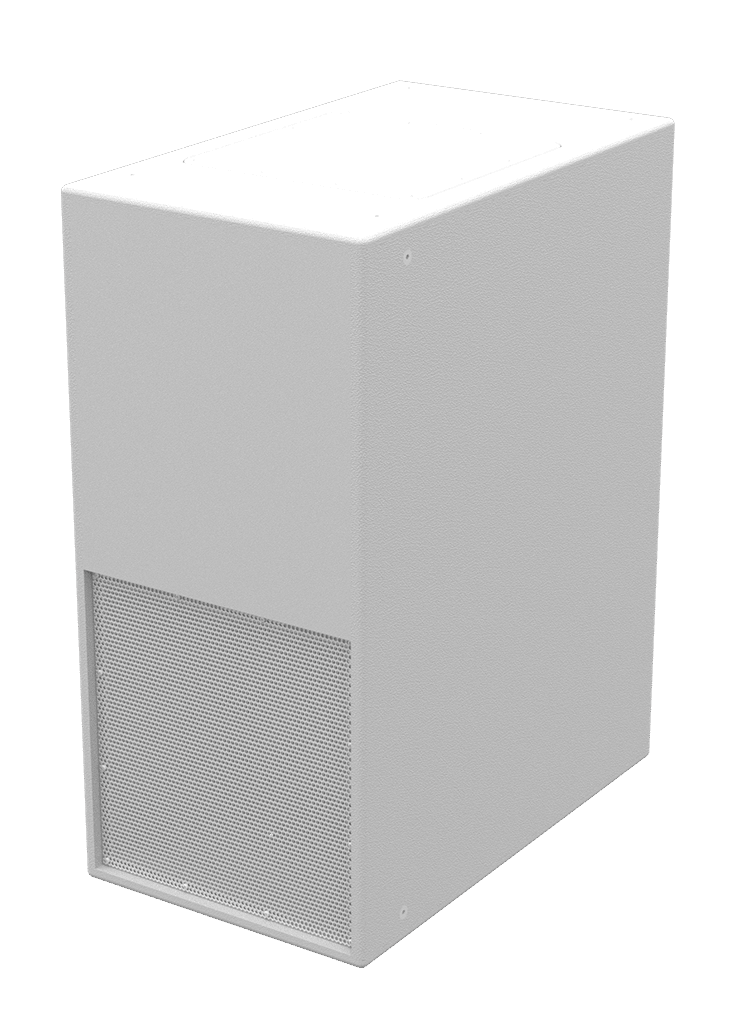

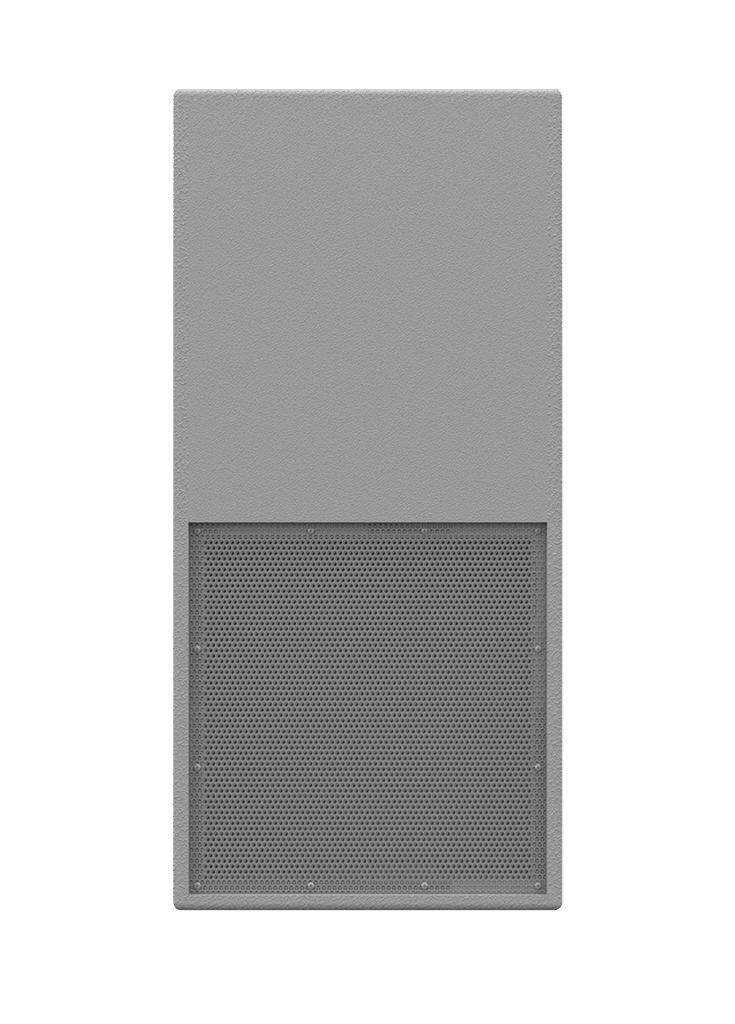

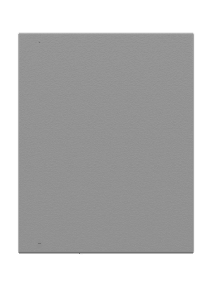

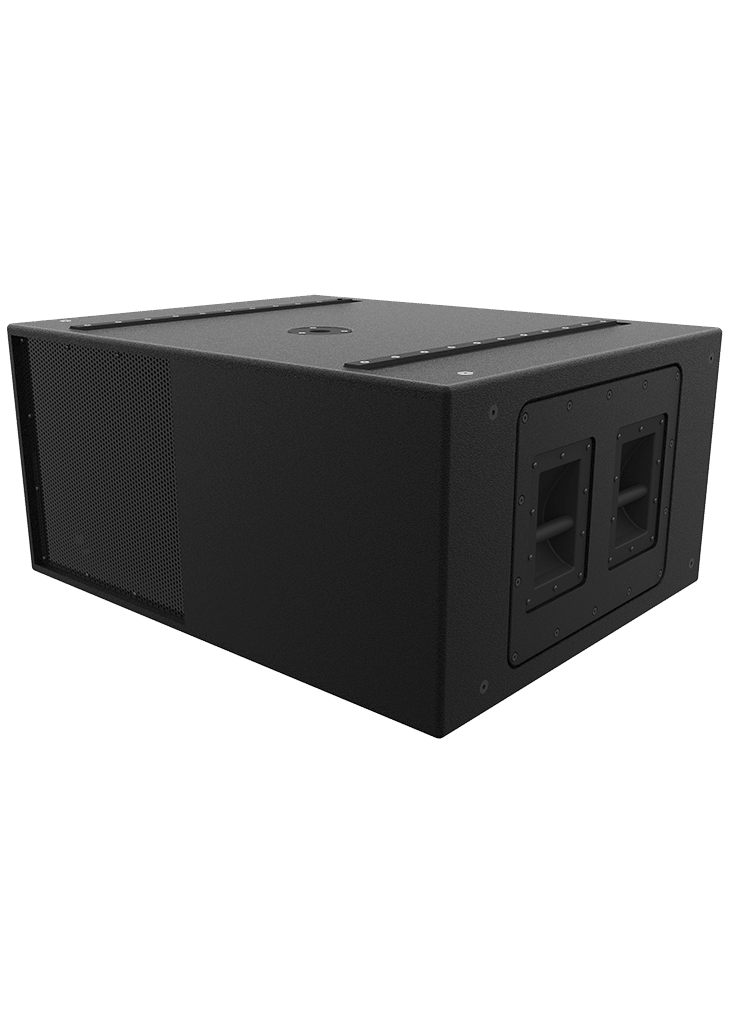

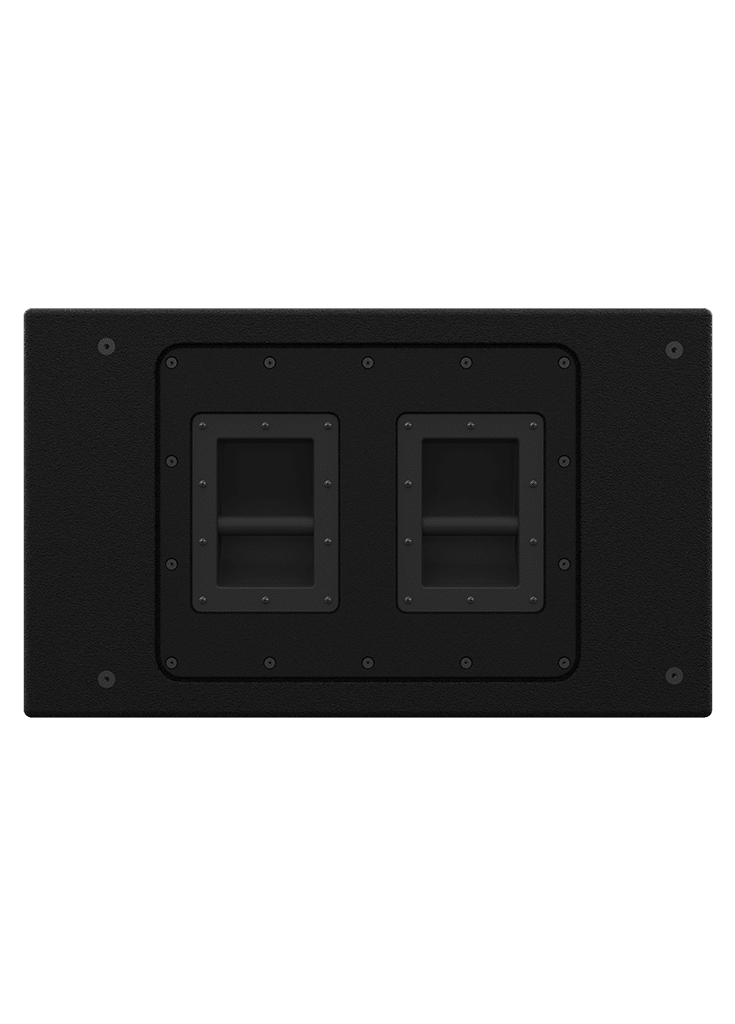

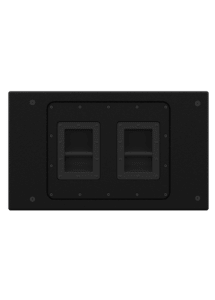

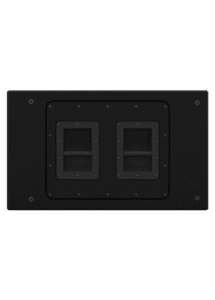

TH112
TH112

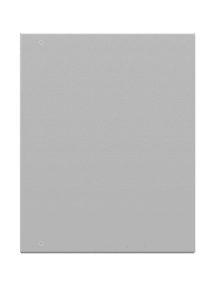

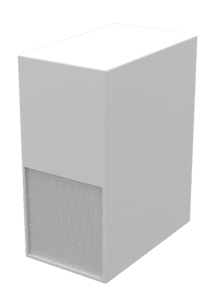

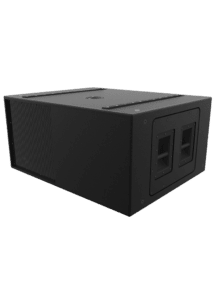

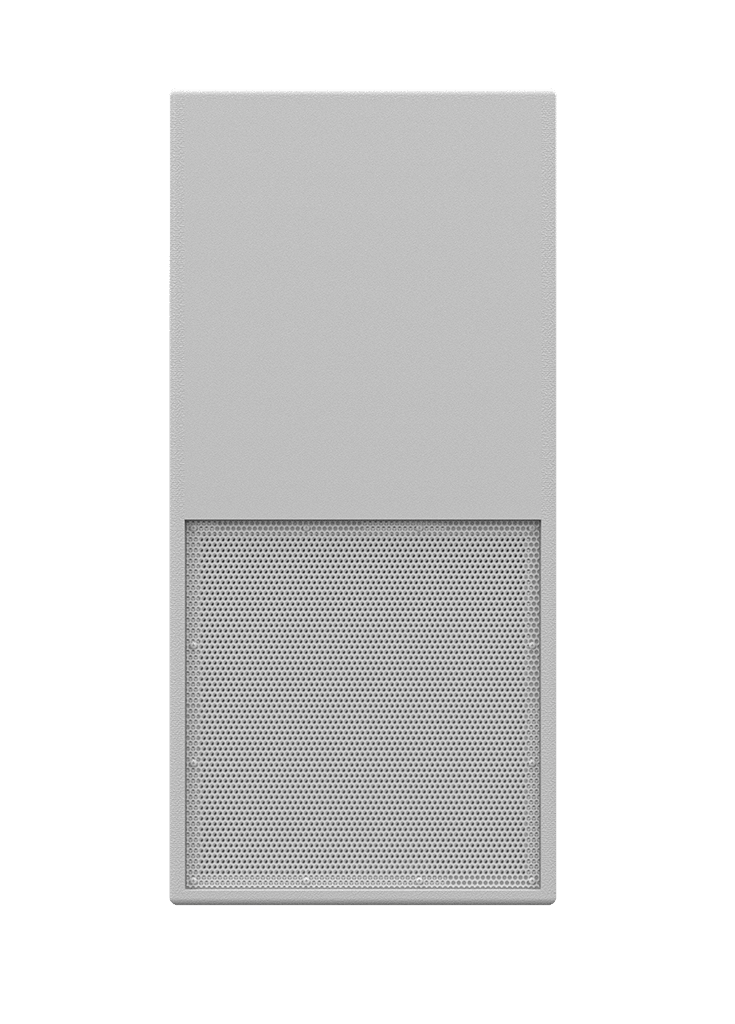

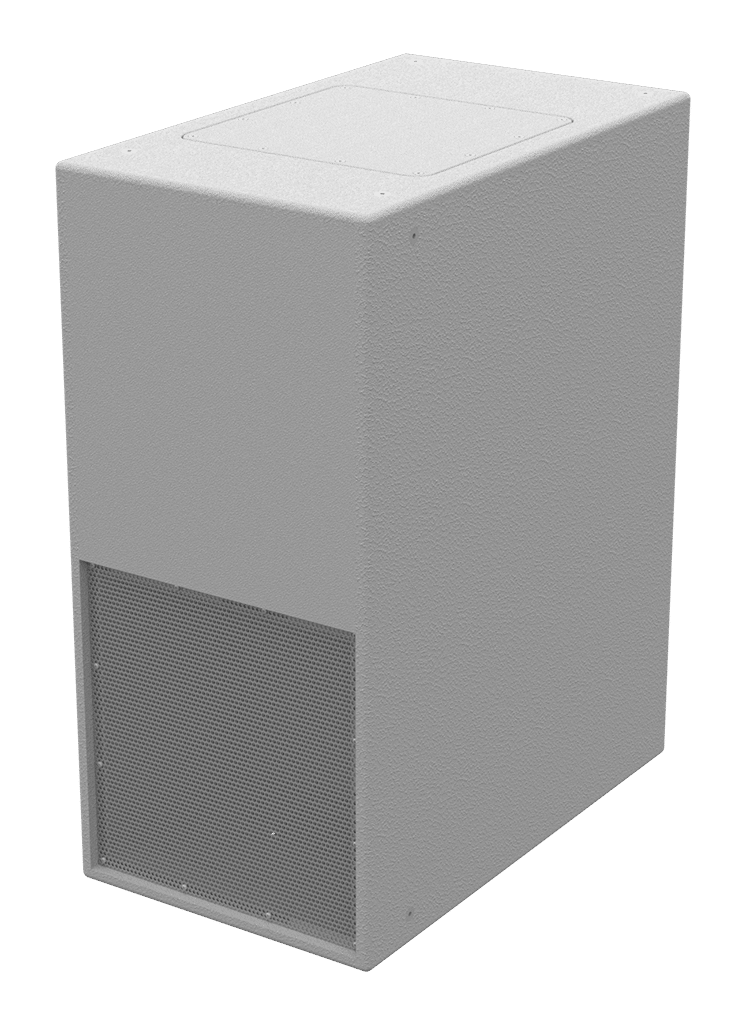

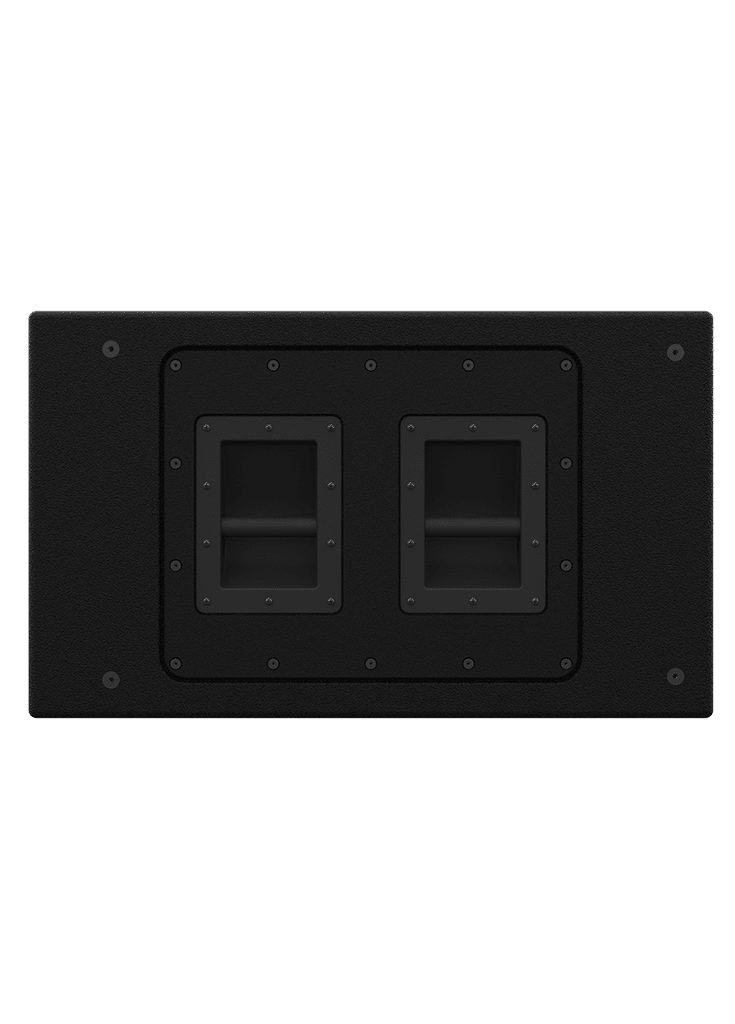

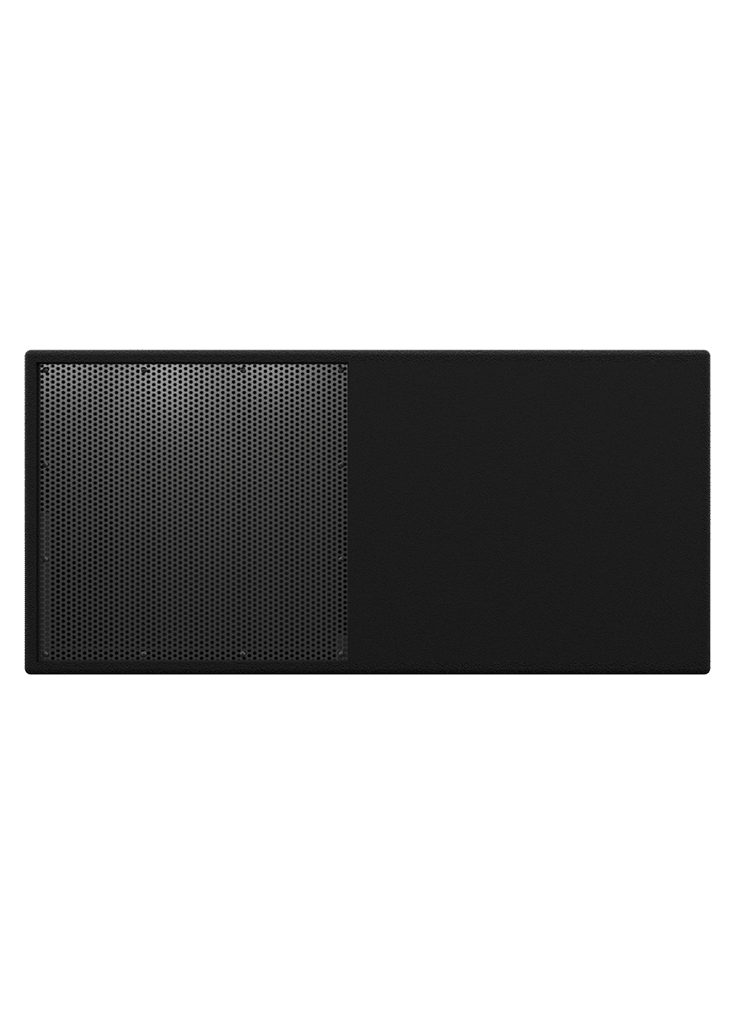

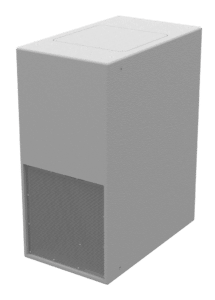

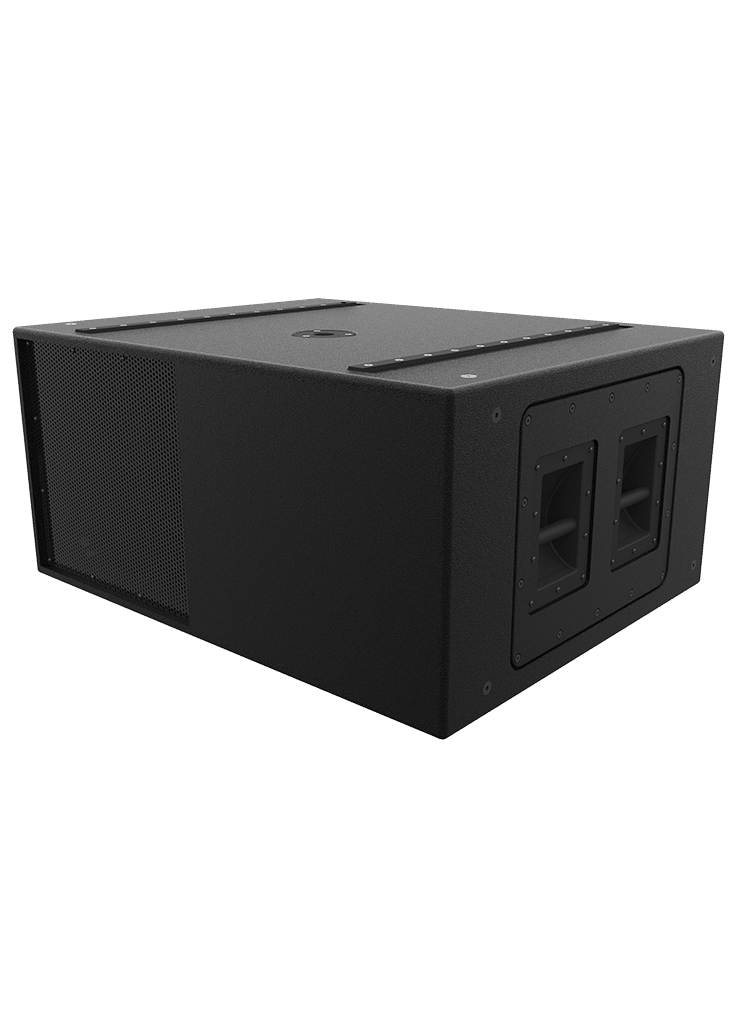

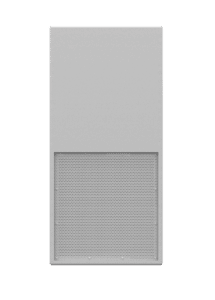

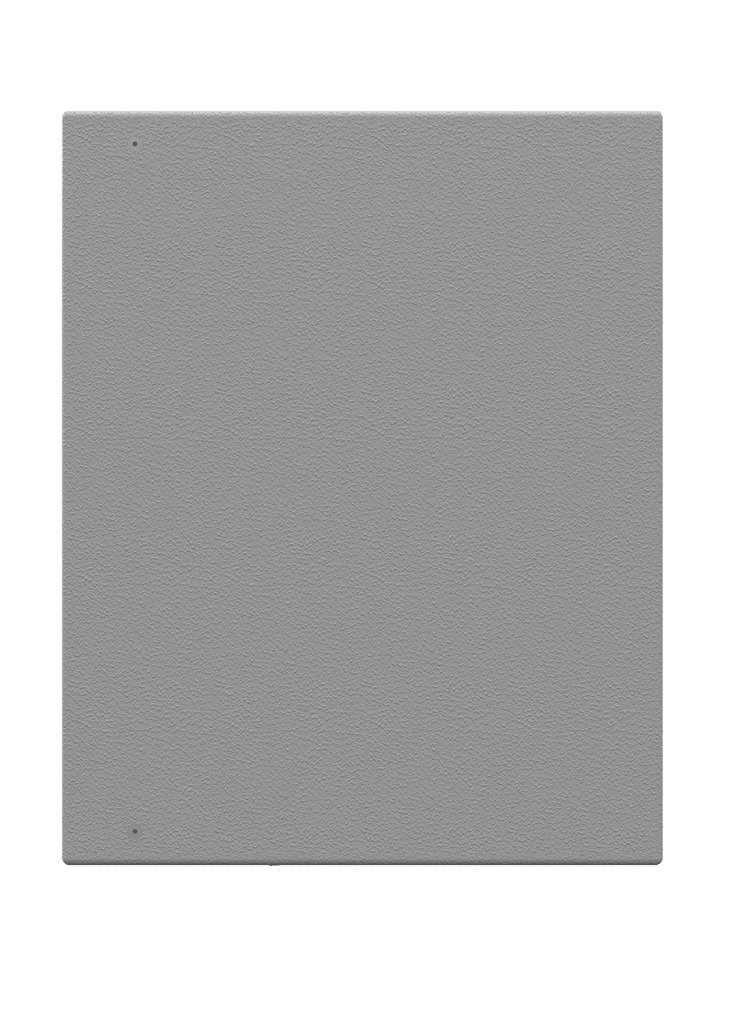

Incredibly deep bass from a single 12”, the TH112 nevertheless offers an extraordinarily compact design – all of which combines high efficiency with solid output down to 27 Hz. The TH112 can be used individually in installed loudspeaker systems or used in multiples to produce tour sound or in cinema applications.
Product Speculations
Operating Frequency Range
33 Hz – 200 Hz -3dB
27 Hz – 260 Hz -10 dB
27 Hz – 260 Hz -10 dB
Continuous Output
126 dB SPL
Peak Output
132 dB SPL
Sensitivity
100 dB SPL (2.83 Volts into rated Z, at 1 meter), measured in half space
Magnitude Response
33 Hz – 200 Hz
Driver Complement
one 12″ Long Excursion Woofer
Dimensions
38 x 18 x 30.2 inches
Weight
142 lbs
Rated Impedance
8 Ohms
Power Rating
400 W continuous
800 W program
800 W program
