TDS-Sub

TDS-Sub

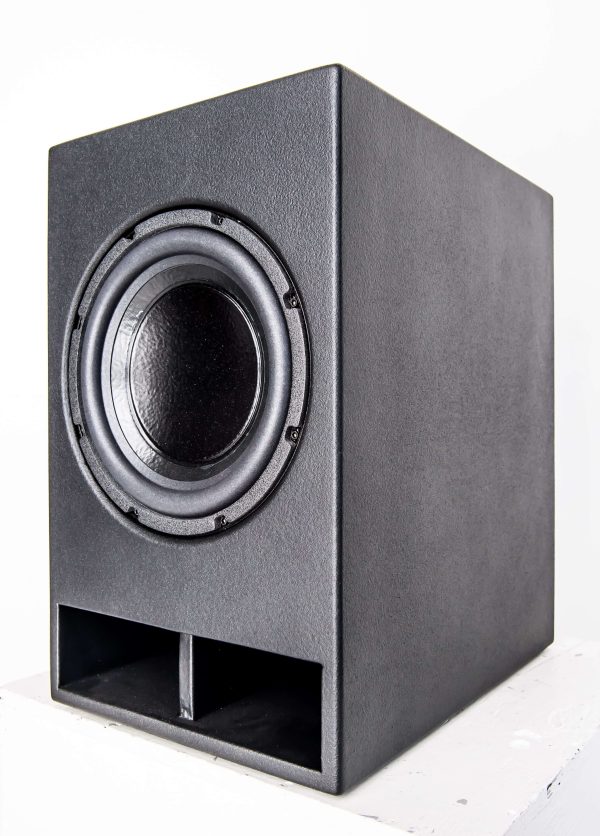

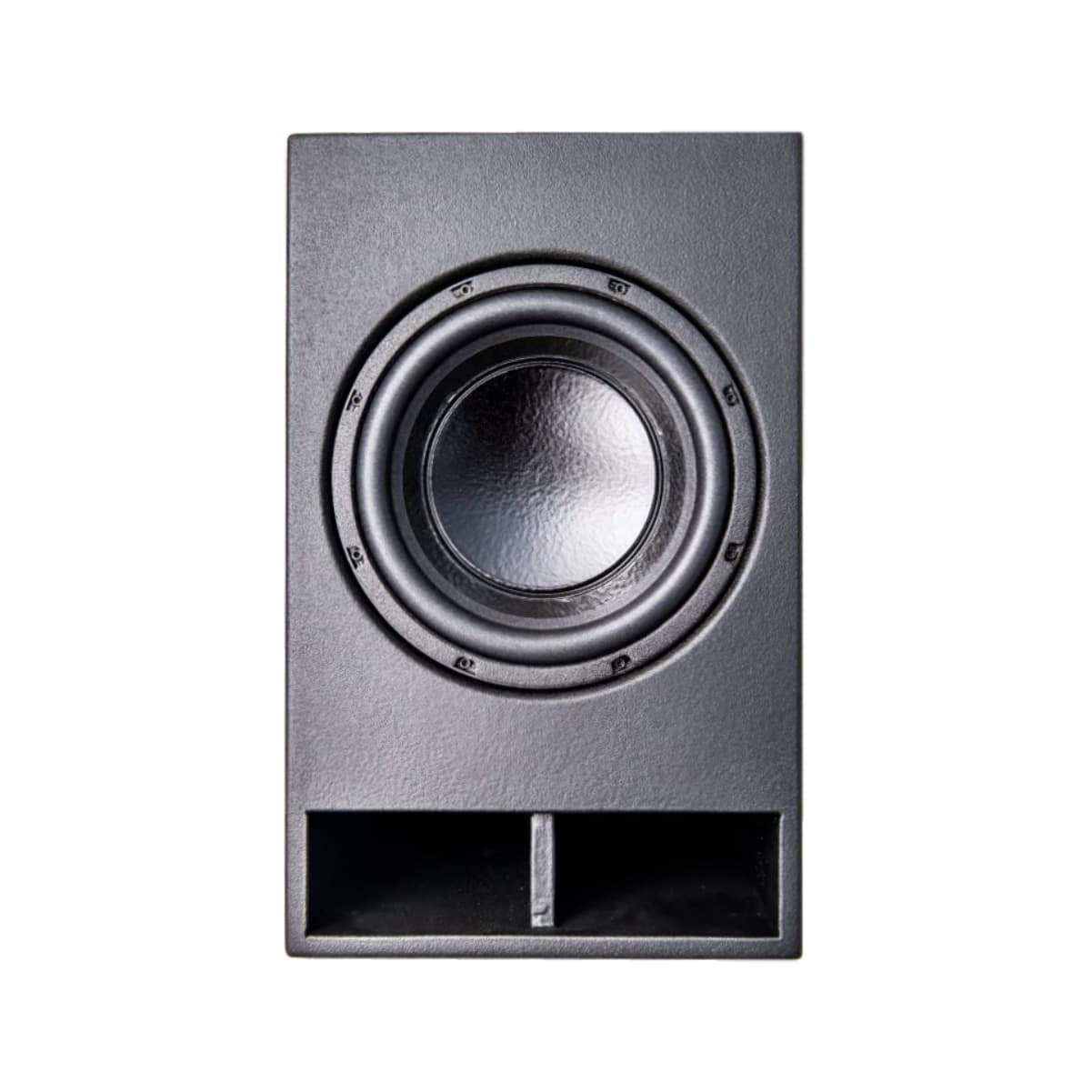

The TDS-Sub is a versatile subwoofer that seamlessly transitions from home to studio use. With a sturdy and sleek design, this subwoofer fits perfectly in any room or studio setup.

Whether you’re using the TDS-Sub to add depth to your home theater system or for monitoring bass in your recording studio, this subwoofer delivers an exceptional audio experience. Its versatile design and precise sound reproduction make it ideal for a wide range of applications, from music production and mastering to film scoring and sound design.

With the TDS-Sub, you can be confident that every low-frequency element in your audio project will be accurately reproduced. Its exceptional sound quality, versatility, and sleek design make it an essential addition to any home or professional studio. At the heart of the TDS-Sub lies an advanced 12-inch driver that produces powerful and precise low-frequency response. The driver is housed in a solid, acoustically optimized enclosure that enhances the subwoofer’s performance and ensures that every beat and note is reproduced accurately.

Performance Specifications

Operating Mode
Passive single channel amplified
Operating Frequency Range
3dB 33Hz-67Hz
10dB 27Hz-150Hz
Coverage Pattern
Omni-directional
Transducers
1×12″
Power Handling
400 W Cont. | 1200 W Peak
Sensitivity
95 dB (measured as 2.83V @ 1m distance)
Maximum SPL
121 dB continuous | 127 dB peak
Impedance
1×4 Ohm
Recommended Power Amplifier
1x 400-1200 W @ 4 Ohm
Tom Danley Studio

The Musician’s Choice

While there are many options on the market today for studio gear, the TDS series provided by Danley Sound Labs offers true art in audio engineering and craftsmanship. The TDS-1, along with its counterpart the TDS-Sub, as well as Danley’s variety of amplifiers make for the ideal compliment in any studio – whether setting a standard 2.1 system or a 7.1 Atmos system.
