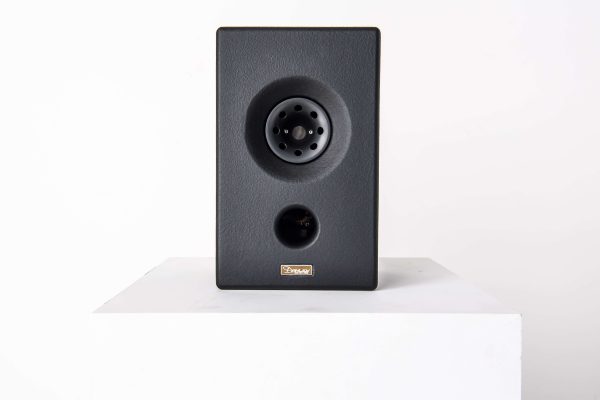

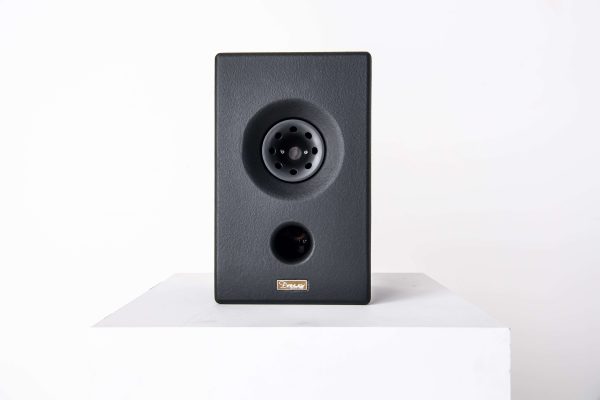

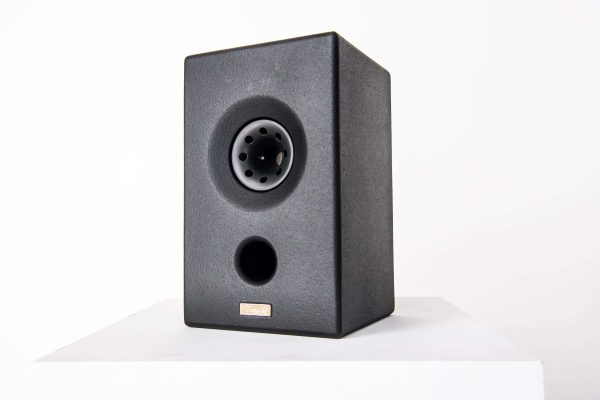

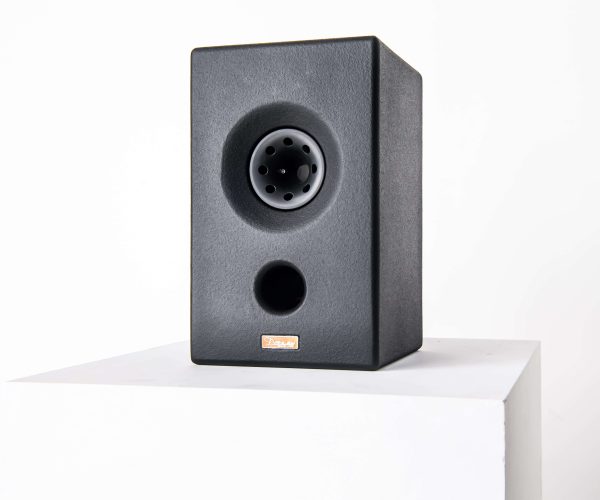

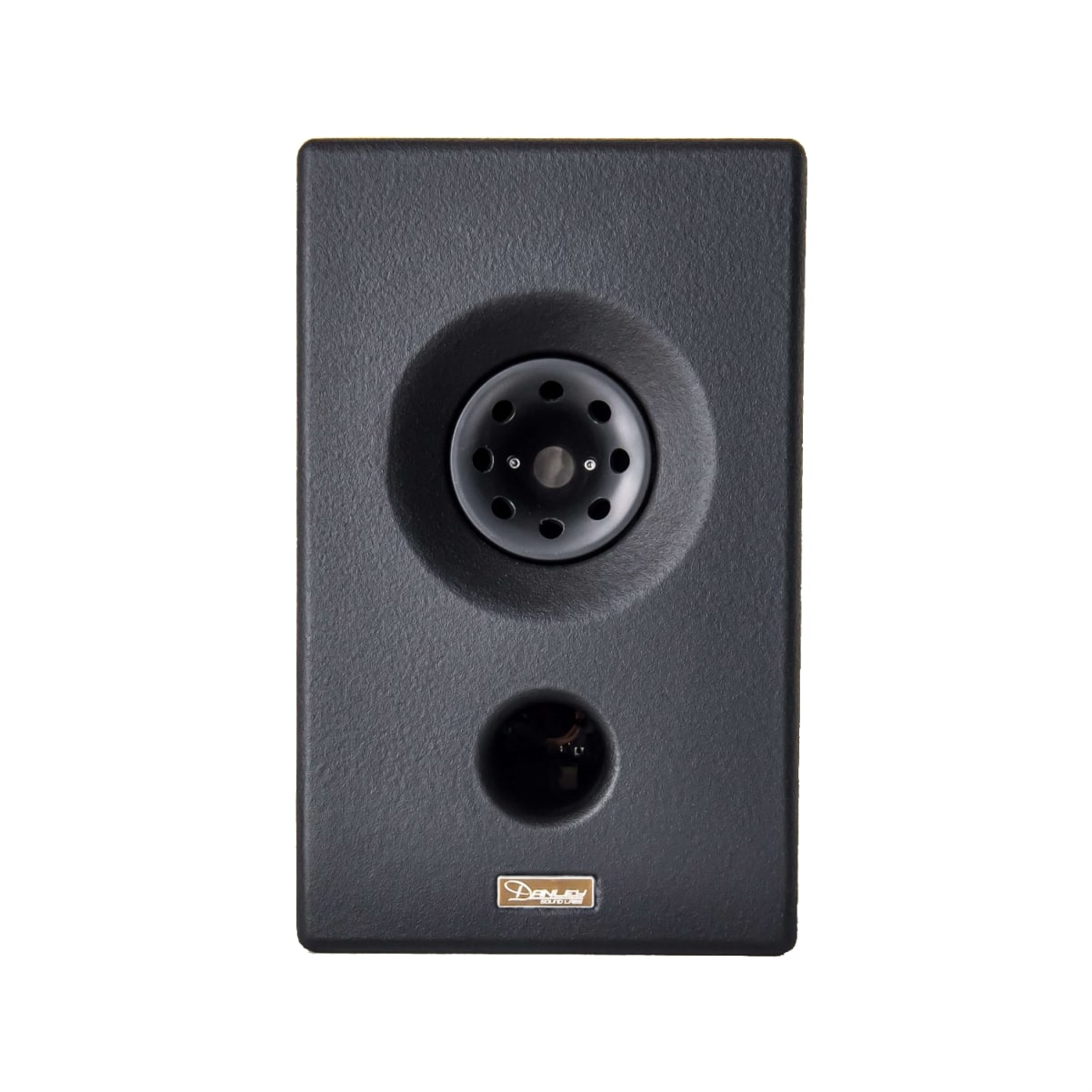

TDS-1 Studio Monitor

TDS-1 Studio Monitor

The TDS-1 is one of our most sound accurate speakers to date – a true work of art in audio engineering and craftsmanship. Whether you’re recording and mixing music or creating podcasts, the TDS-1 studio monitor provides an immersive experience that brings your work to life. It’s the perfect addition to any professional or home studio, delivering unparalleled sound quality that will inspire and elevate your creative work.

At the heart of these high quality studio monitors lies the smallest Synergy Horn™ in production. It delivers exceptional clarity in both high and mid-range frequencies with exceptional accuracy and detail. The monitor’s solid wood cabinetry provides not only a beautiful, natural finish but also contributes to its acoustic properties, ensuring that the sound remains true to life.

Performance Specifications

Operating Mode
single channel amplified two-way loudspeaker
Operating Frequency Range
63Hz – 20KHz+/-3dB
54Hz – >24KHz- 10dB
Coverage Pattern
120×120
Transducers
1 x 5″ coaxial driver
Power Handling
150 W Cont. | 600 W. Peak
Sensitivity (measured as 2.83V @ 1m distance)
84 dB
Maximum Linear SPL
122.8 Z-Peak | 106.5 Z-Slow | 103.4 A-Slow | 42 Volt
Impedance
8 ohm
Recommended Power Amplifier
150 – 300 Watts
Danley Studio

The Musician’s Choice

While there are many options on the market today for studio gear, Danley Studio provided by Danley Sound Labs offers true art in audio engineering and craftsmanship. The TDS-1, along with its counterpart the TDS-Sub, as well as Danley’s variety of amplifiers make for the ideal compliment in any studio – whether setting a standard 2.1 system or a 7.1 Atmos system.
