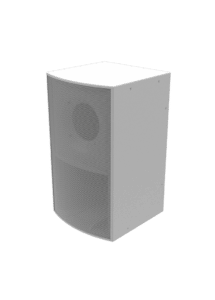

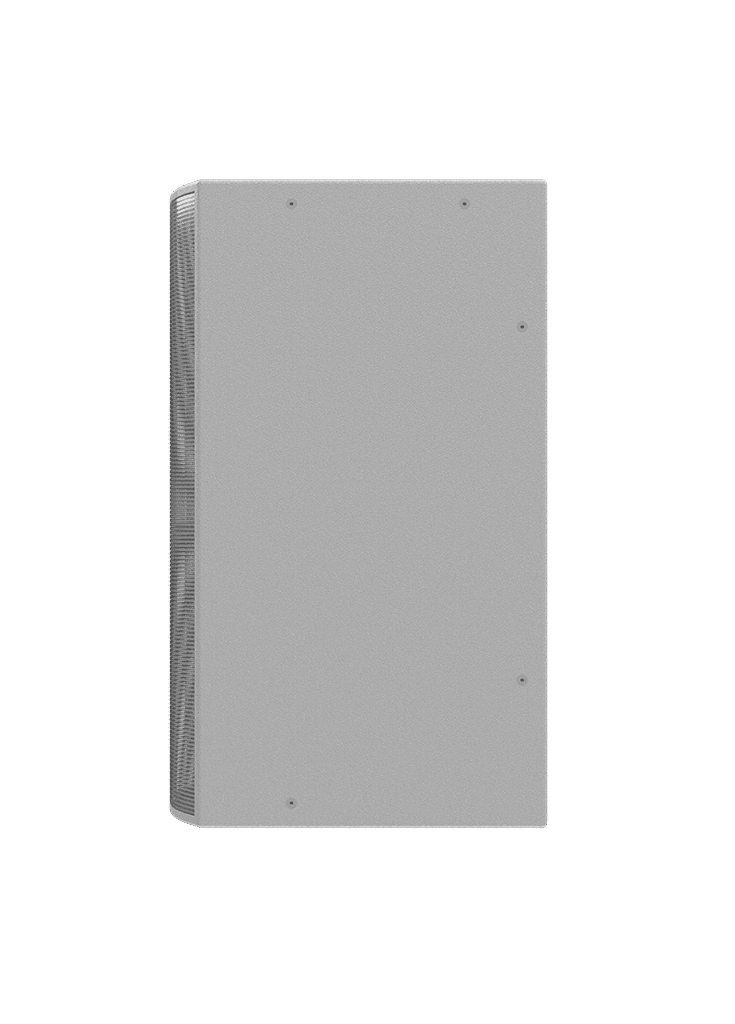

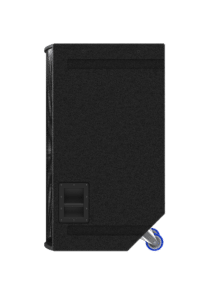

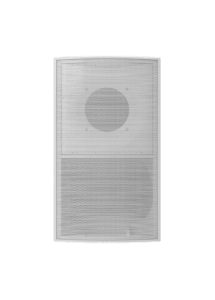

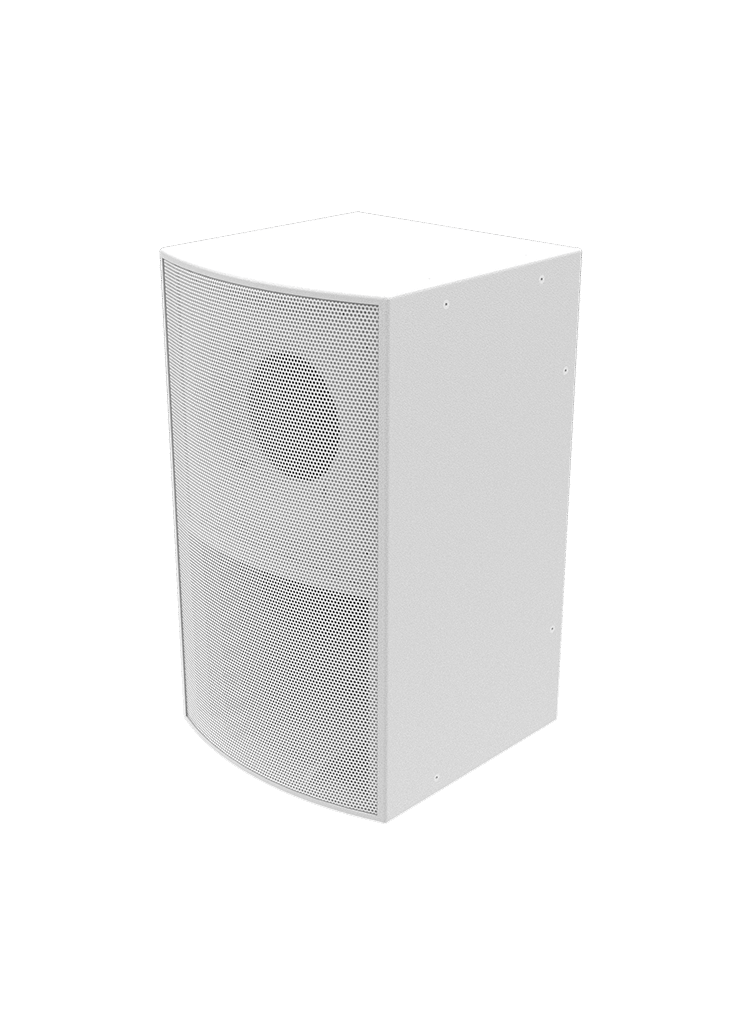

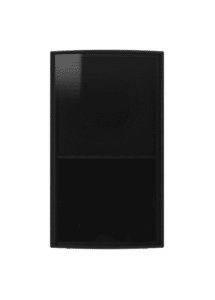

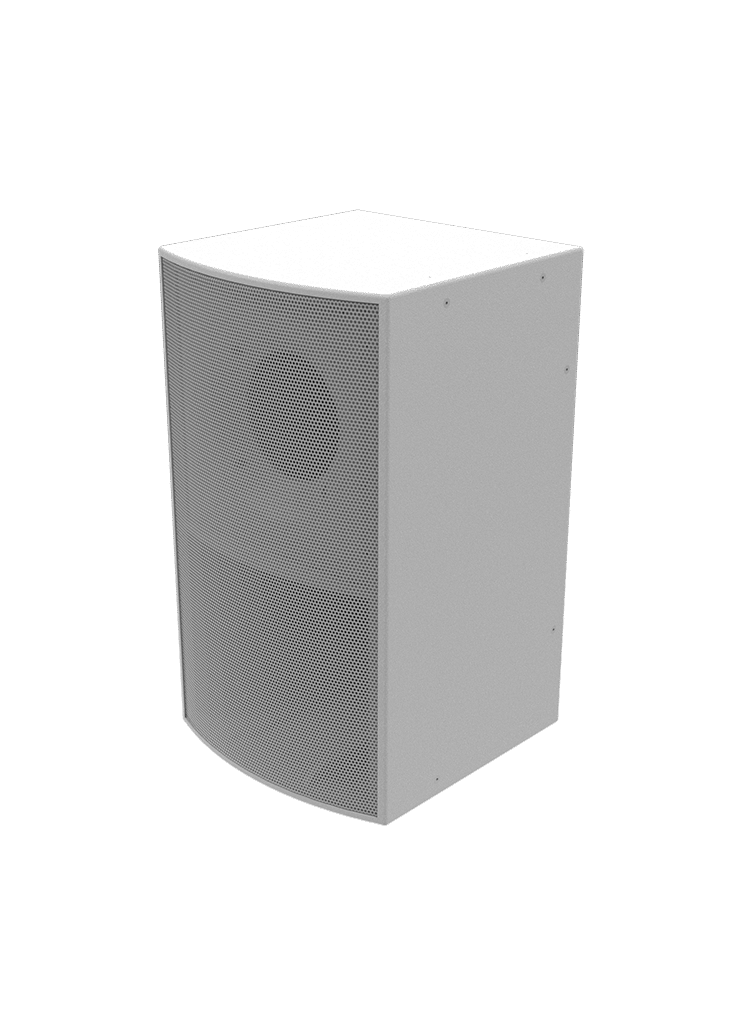

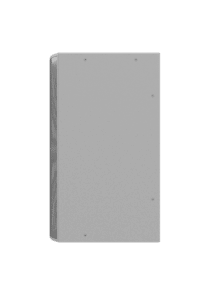

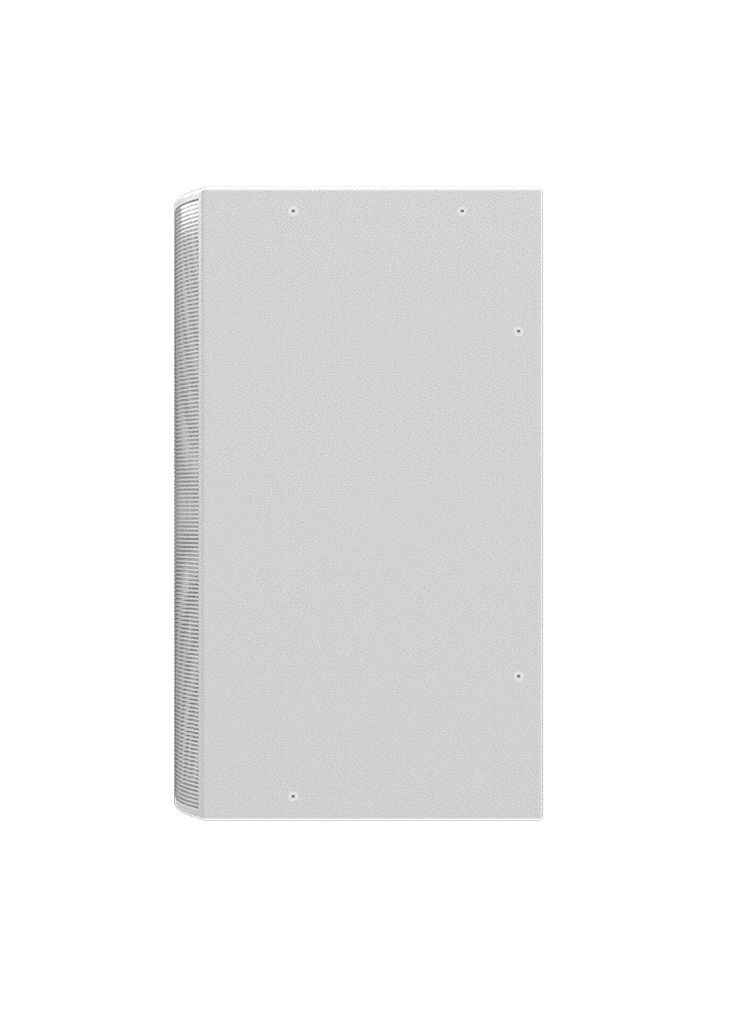

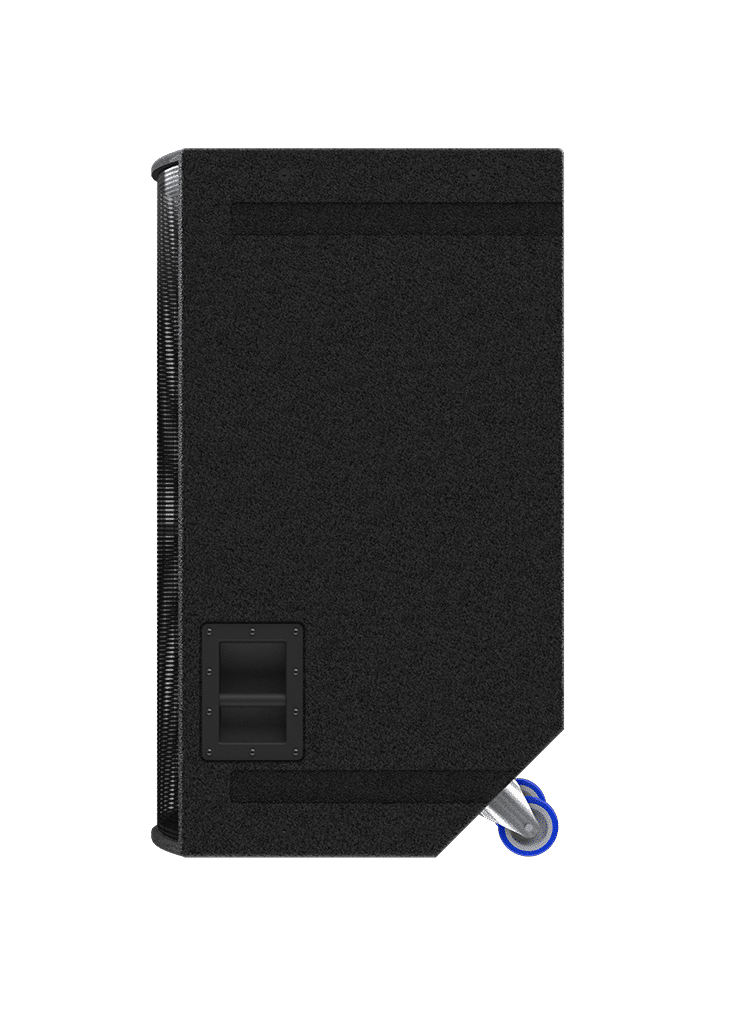

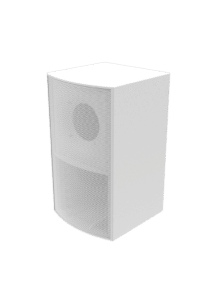

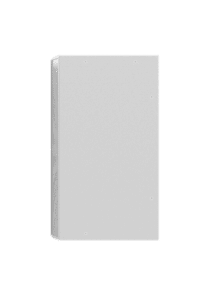

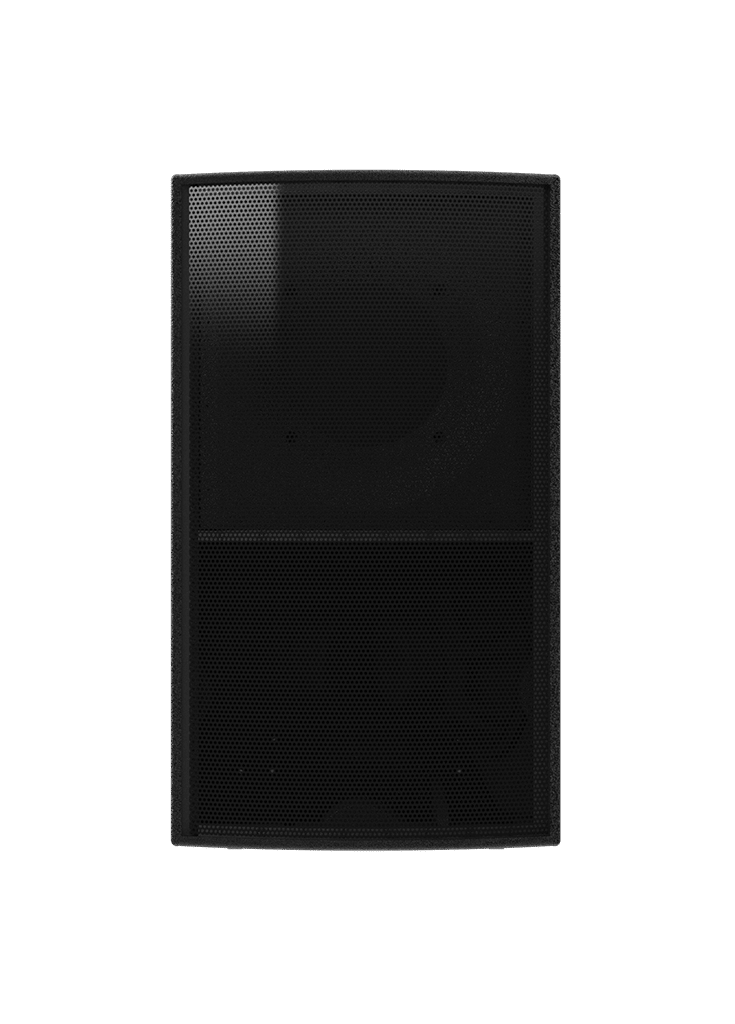

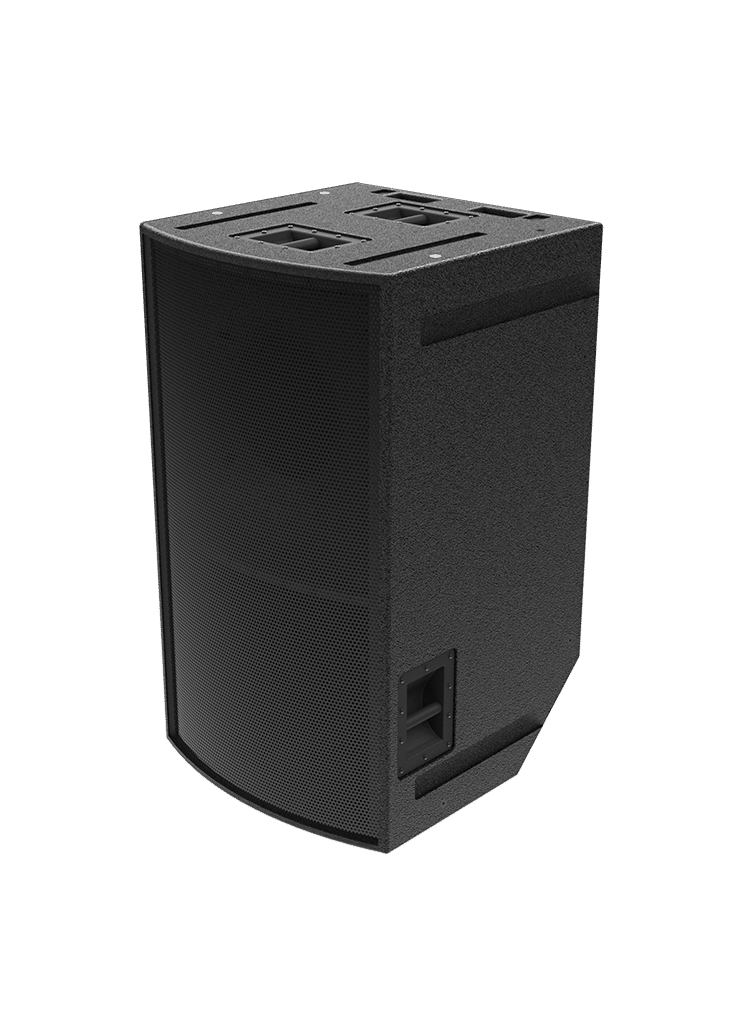

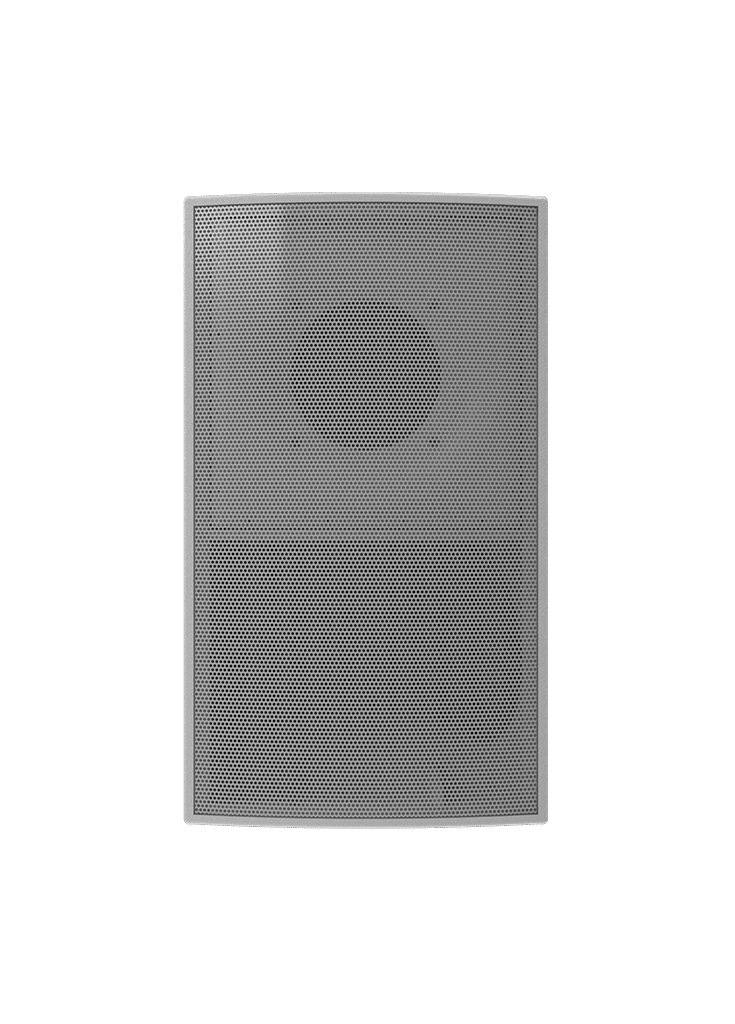

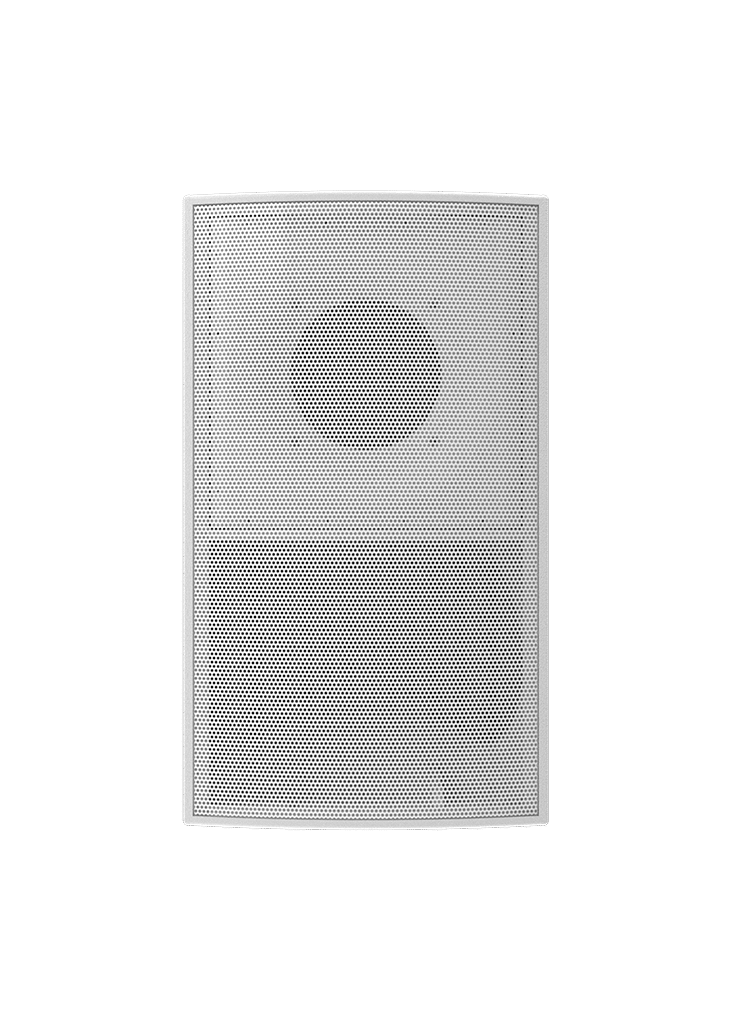

The SM80F
The SM80F
This is a true full range speaker. Simply put, the SM80F performs like no other loudspeaker its size. Combining Synergy™ and Tapped Horn™ technology in one relatively small package, this loudspeaker hardly needs sub-woofers to boast impressive low end while providing clean and clear audio across the rest of the frequency spectrum.
Product Specifications
coverage Pattern
80° Conical
operating frequency range
45Hz-17kHz +/- 3dB
39Hz-23kHz – 10dB
39Hz-23kHz – 10dB
continuous output
Mid/High 128 dB SPL
Low 135 dB SPL
Low 135 dB SPL
peak output
Mid/High 134 dB SPL
Low 141 dB SPL
Low 141 dB SPL
sensitivity
Mid/High 102 dB SPL
Low 106 dB SPL
measured in
wholespace at
1M @ 2.83V input
Low 106 dB SPL
measured in
wholespace at
1M @ 2.83V input
driver complement
1 x 12″ coaxial
2 x 15″ woofers
2 x 15″ woofers
dimensions
45 x 26 x 28 inches
weight
215 lbs
Rated Impedance
Mid/High 8 Ohms
Low 2 Ohms
Low 2 Ohms
Power Rating
Mid/High
400 Watts Cont.
1600 Watts Peak
Low
3400 Watts Cont.
13,600 Watts Peak
400 Watts Cont.
1600 Watts Peak
Low
3400 Watts Cont.
13,600 Watts Peak
