SM80

Name: SM80
Brand: Danley Sound Labs

SM80

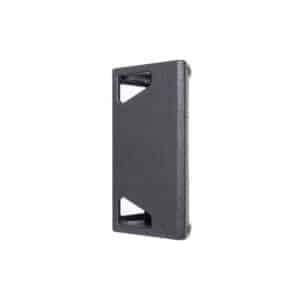

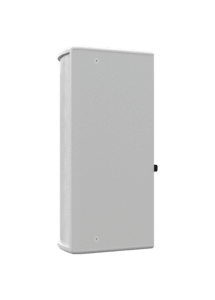

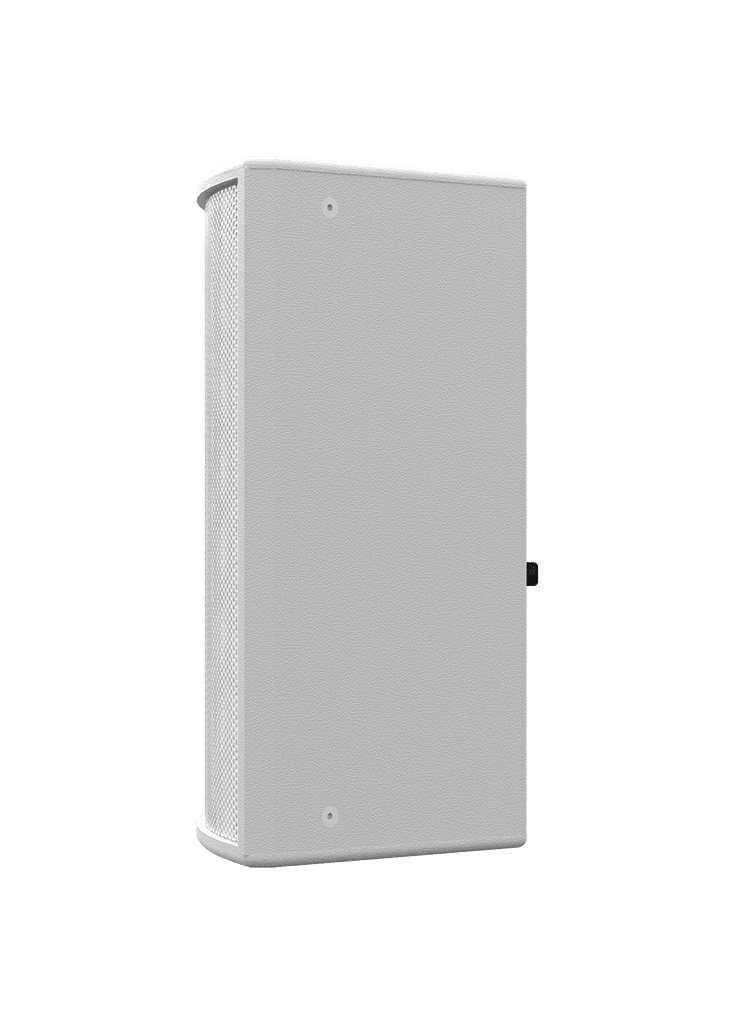

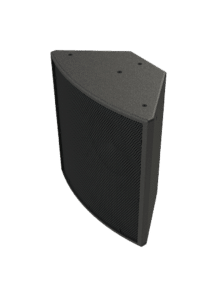

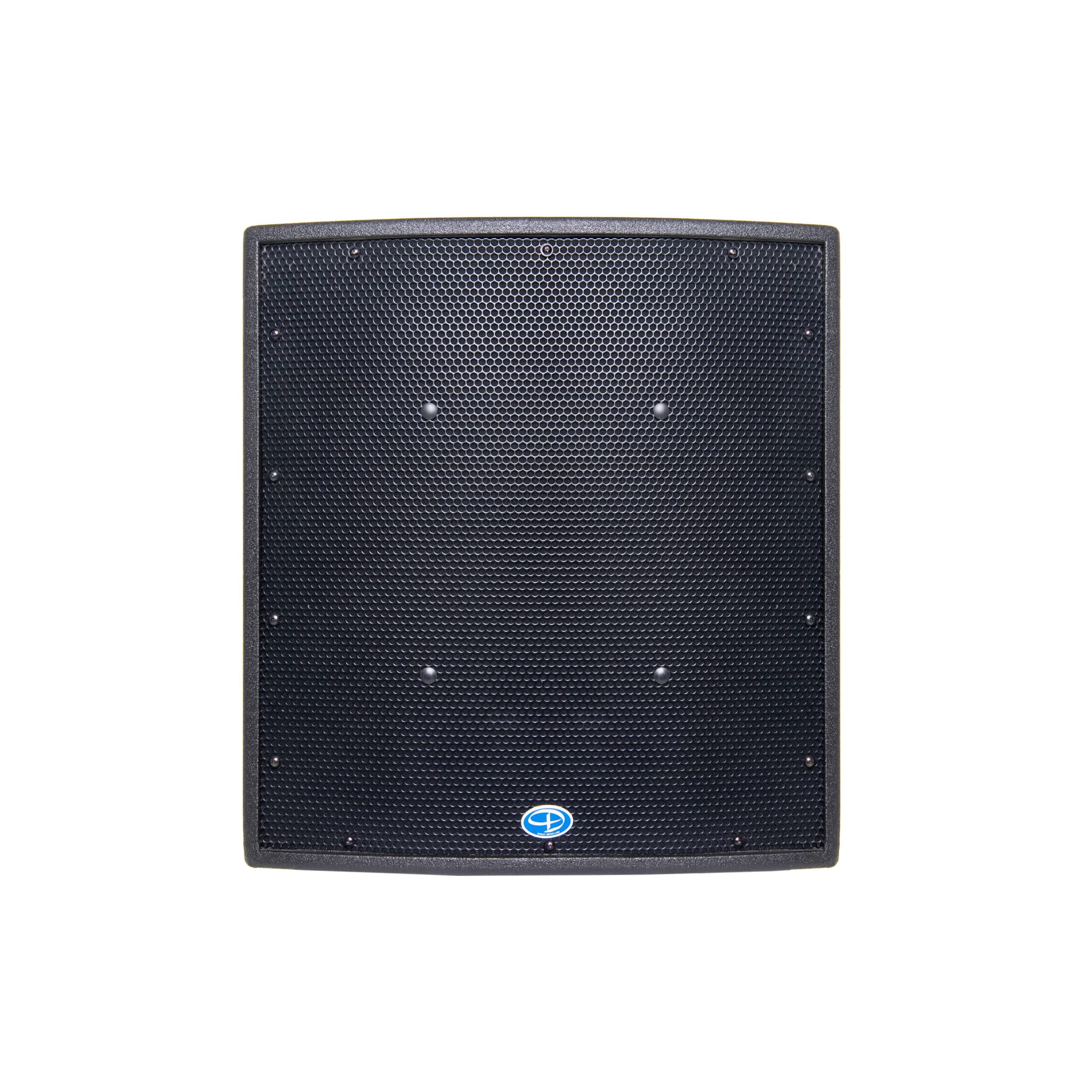

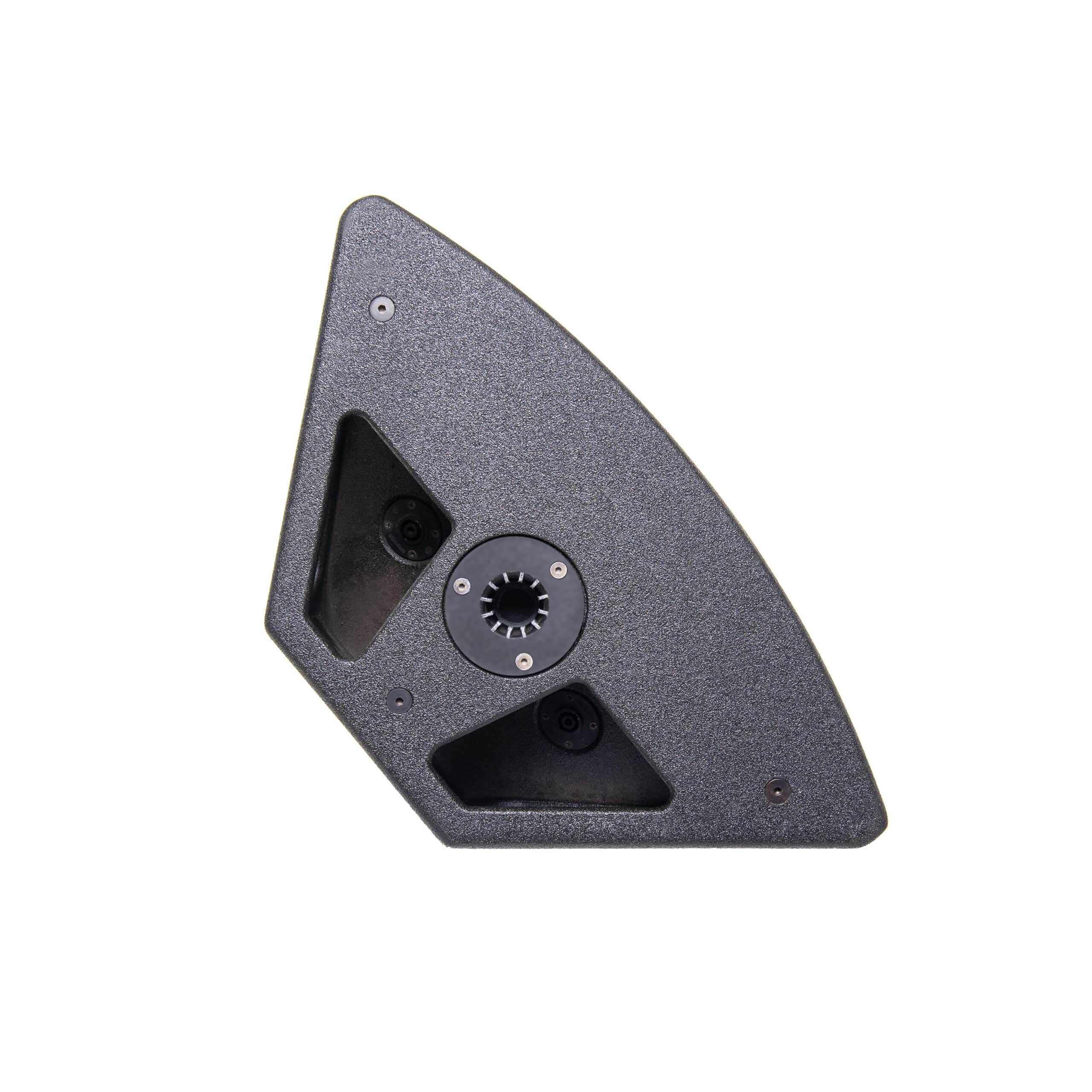

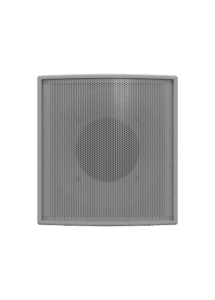

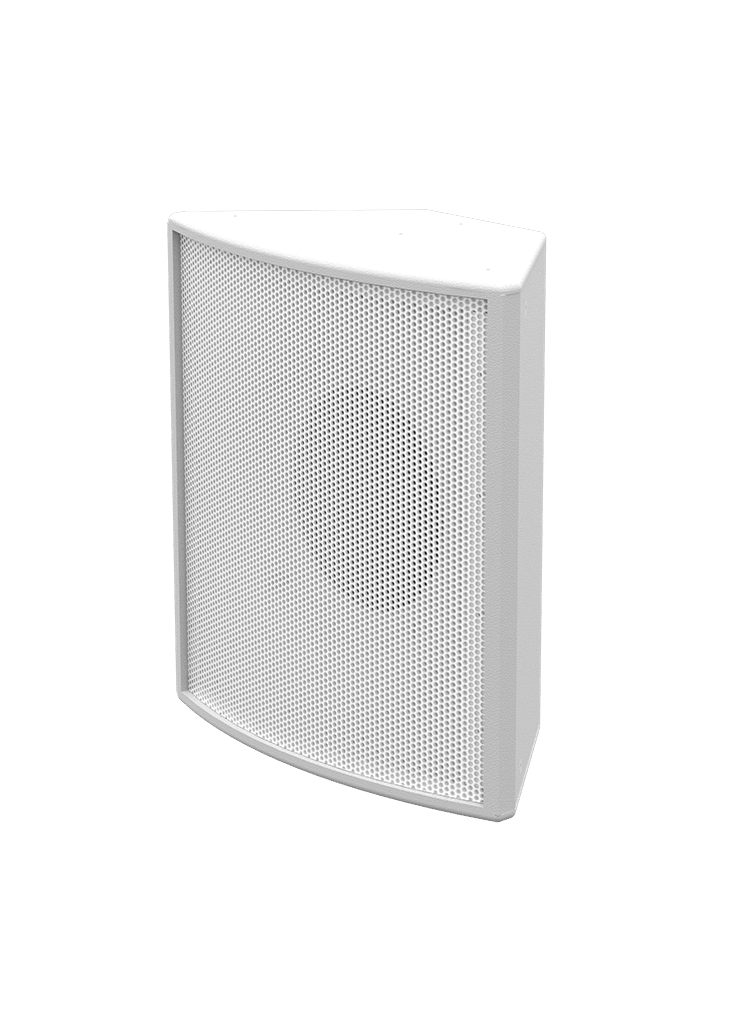

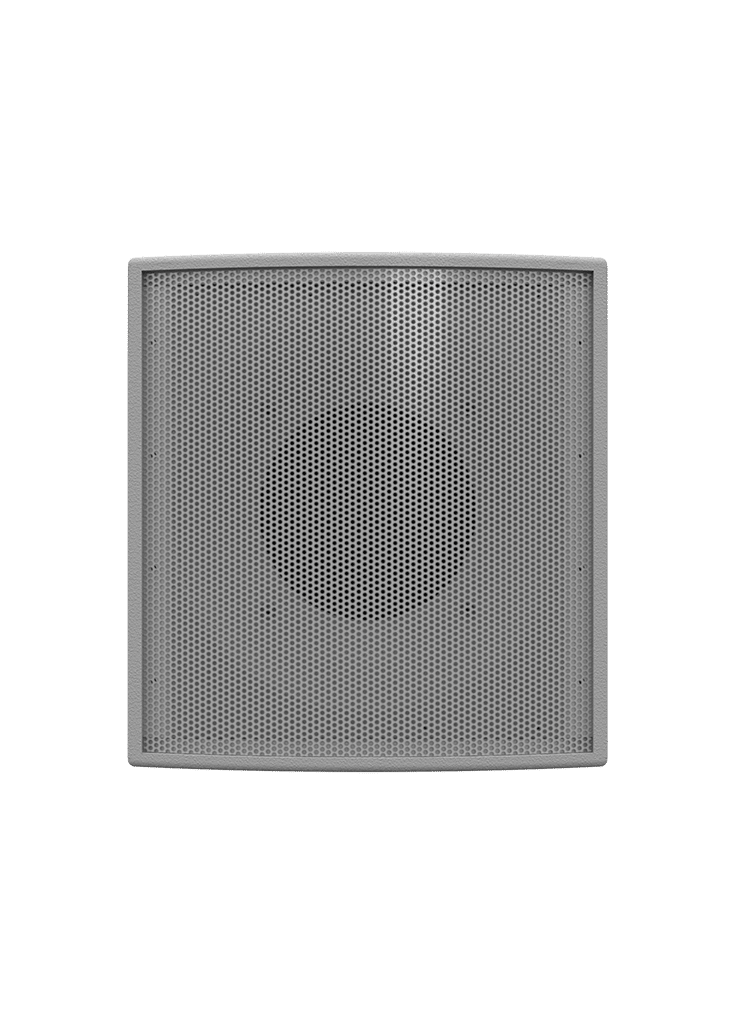

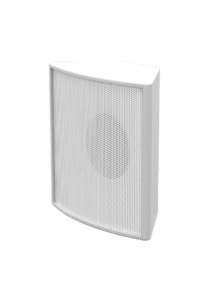

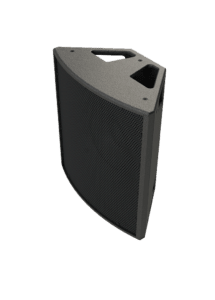

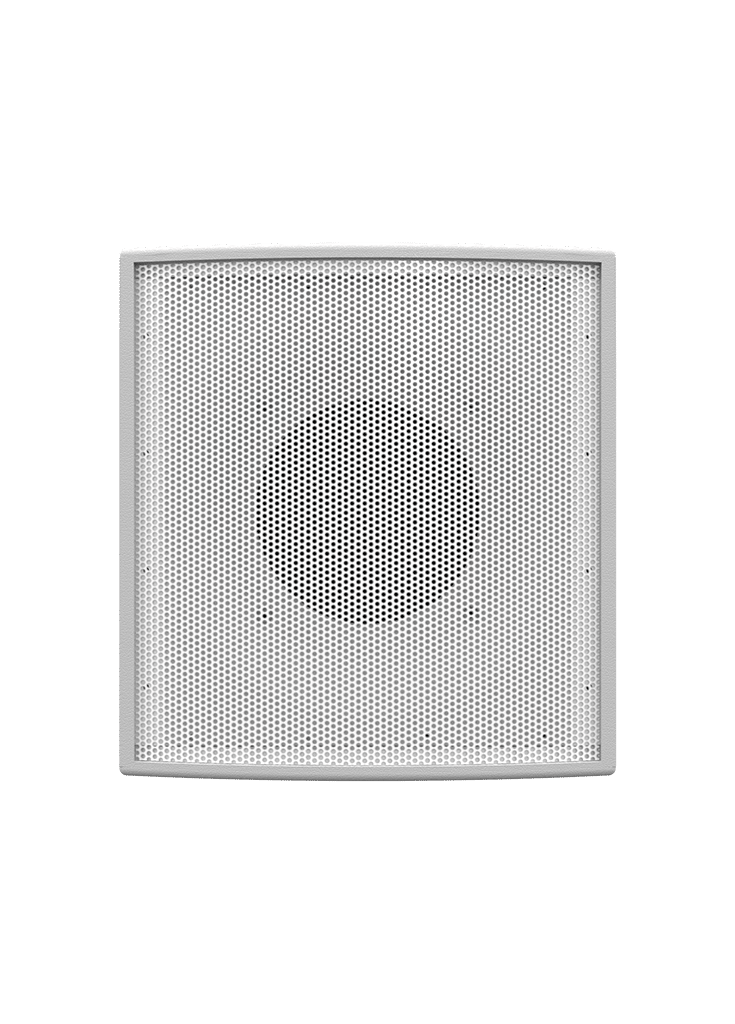

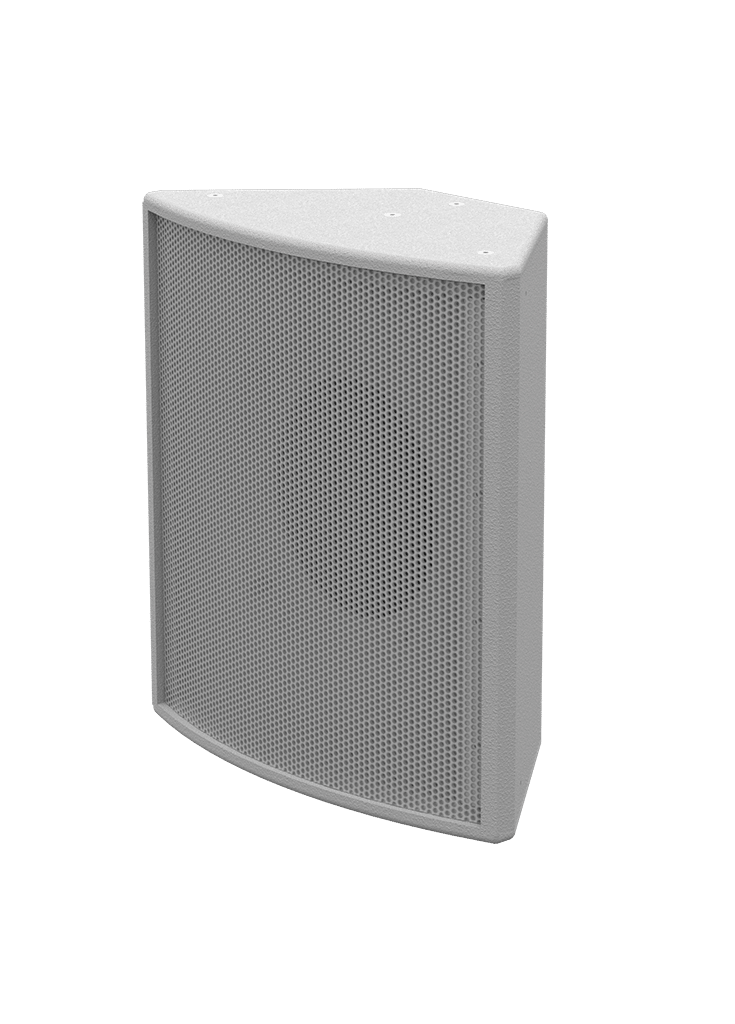

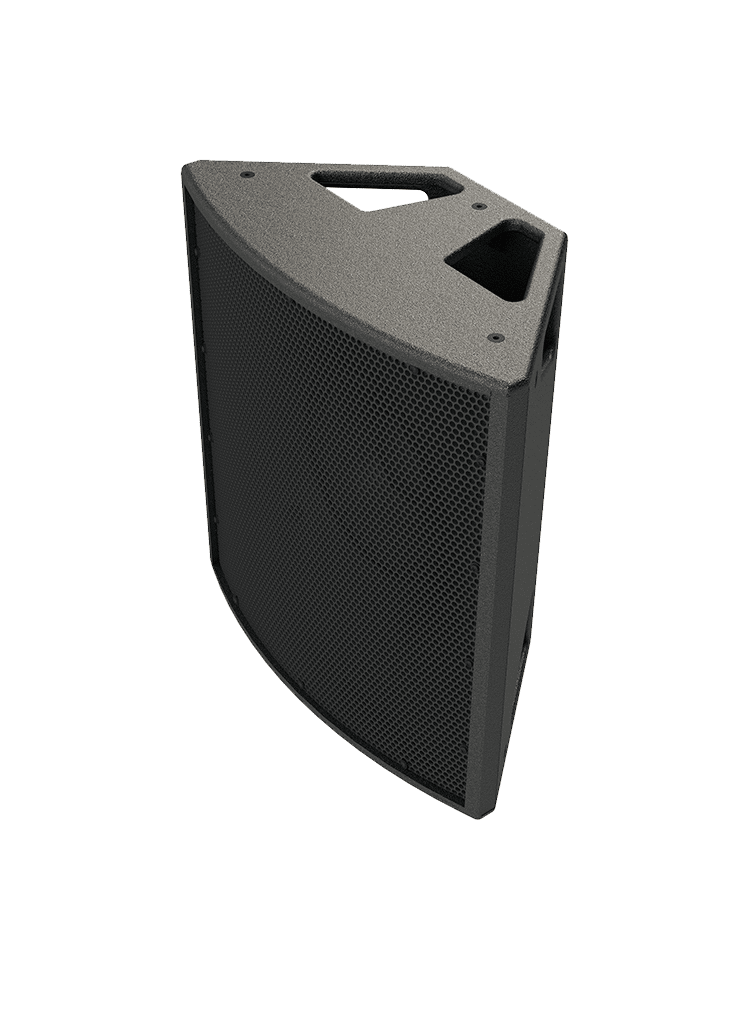

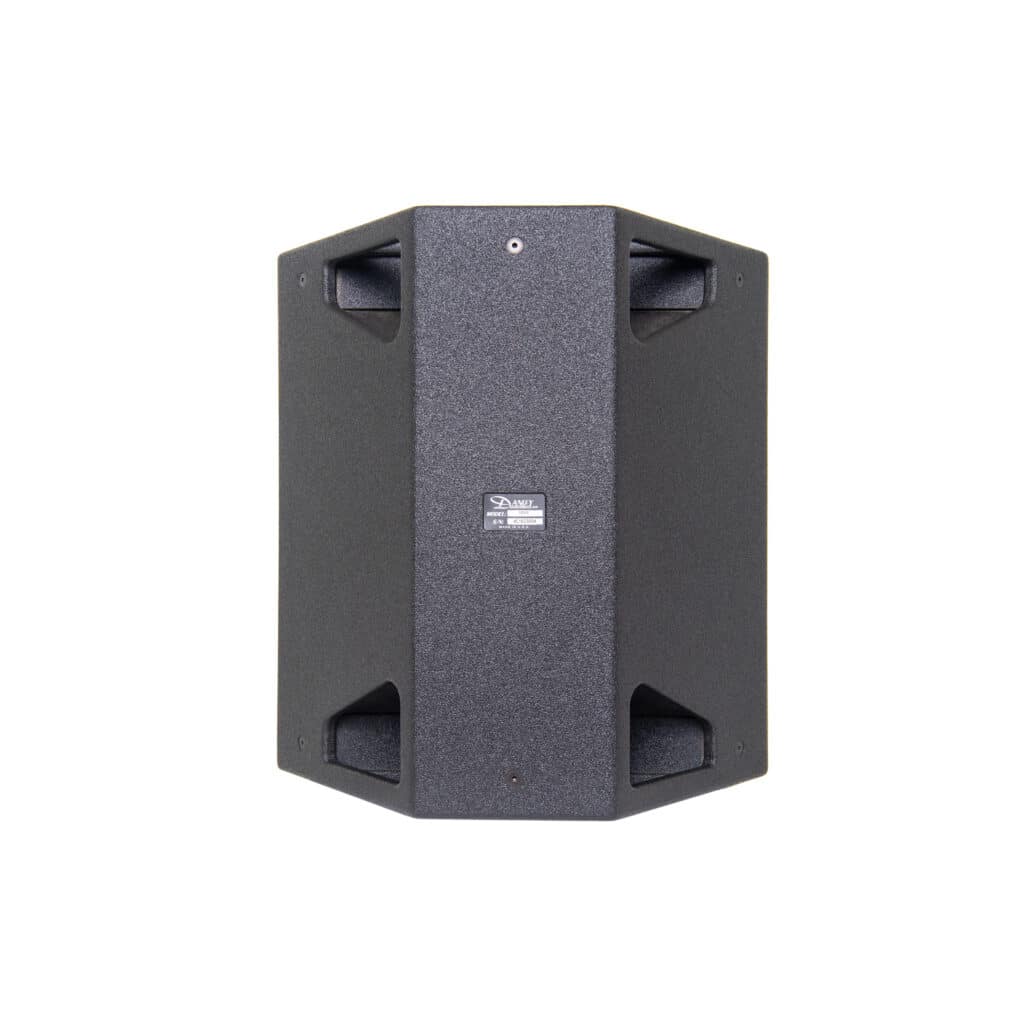

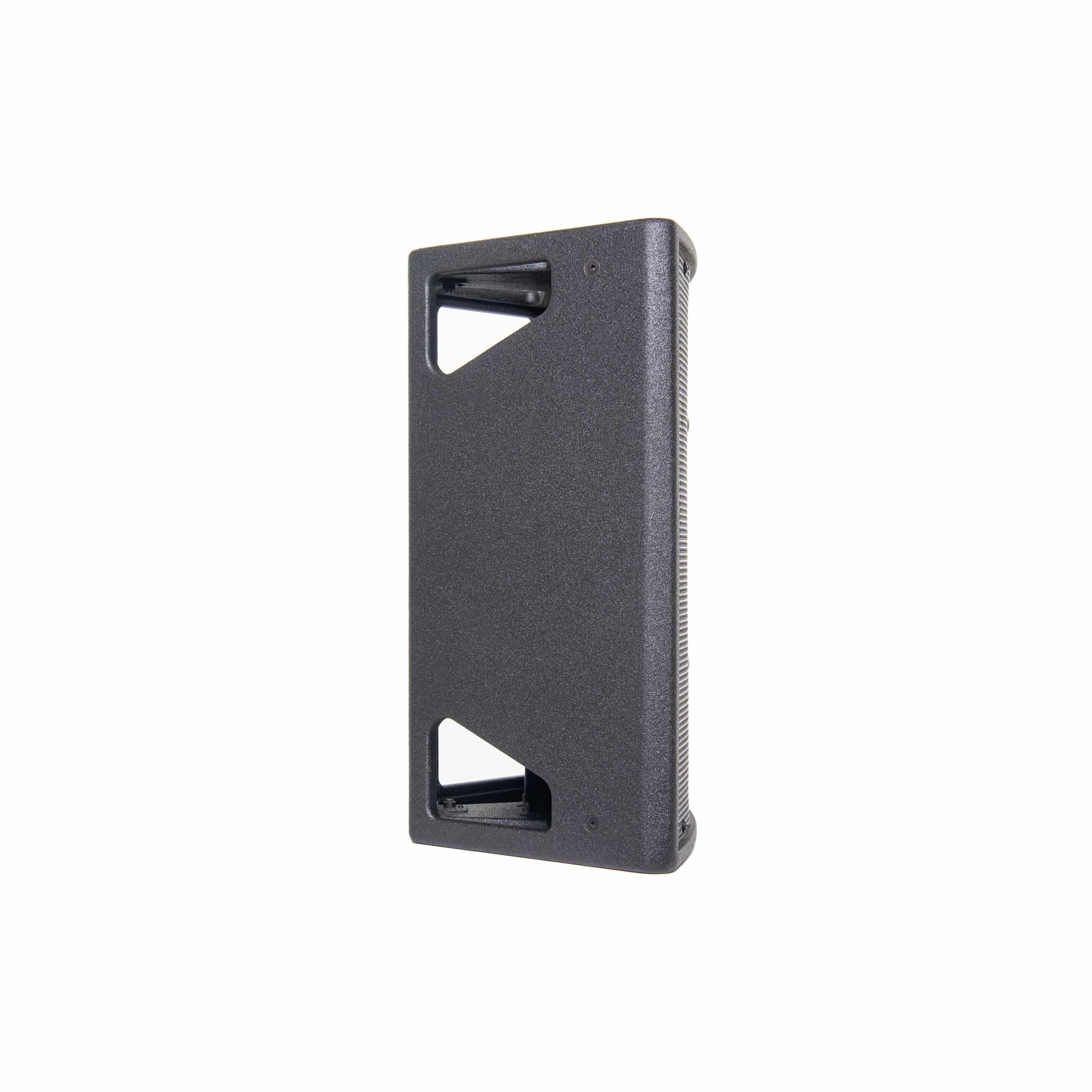

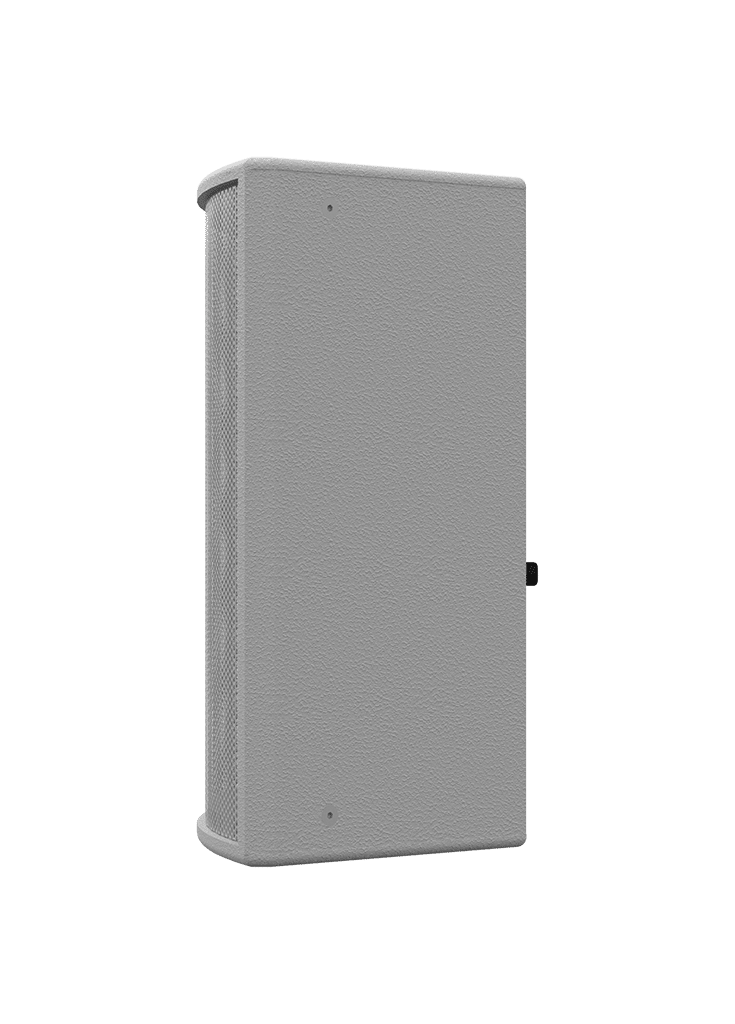

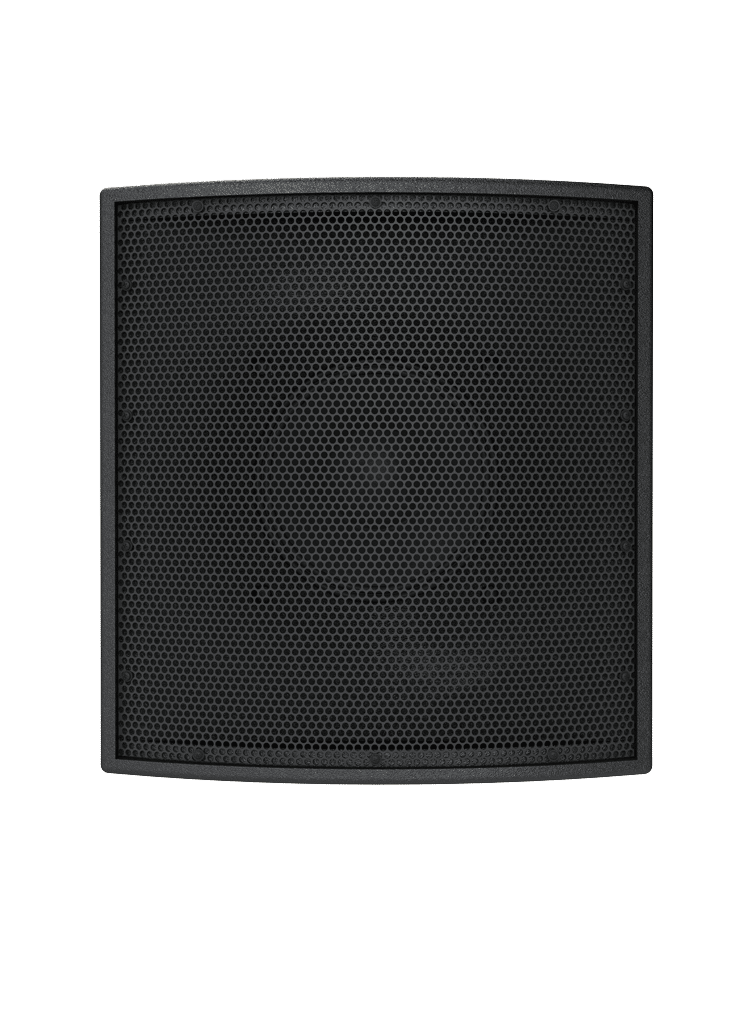

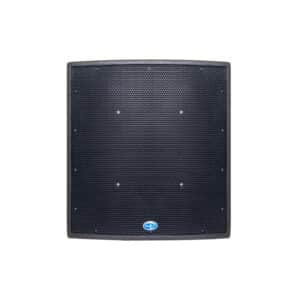

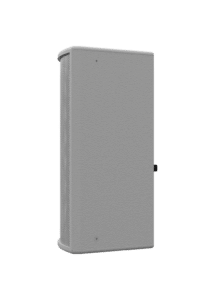

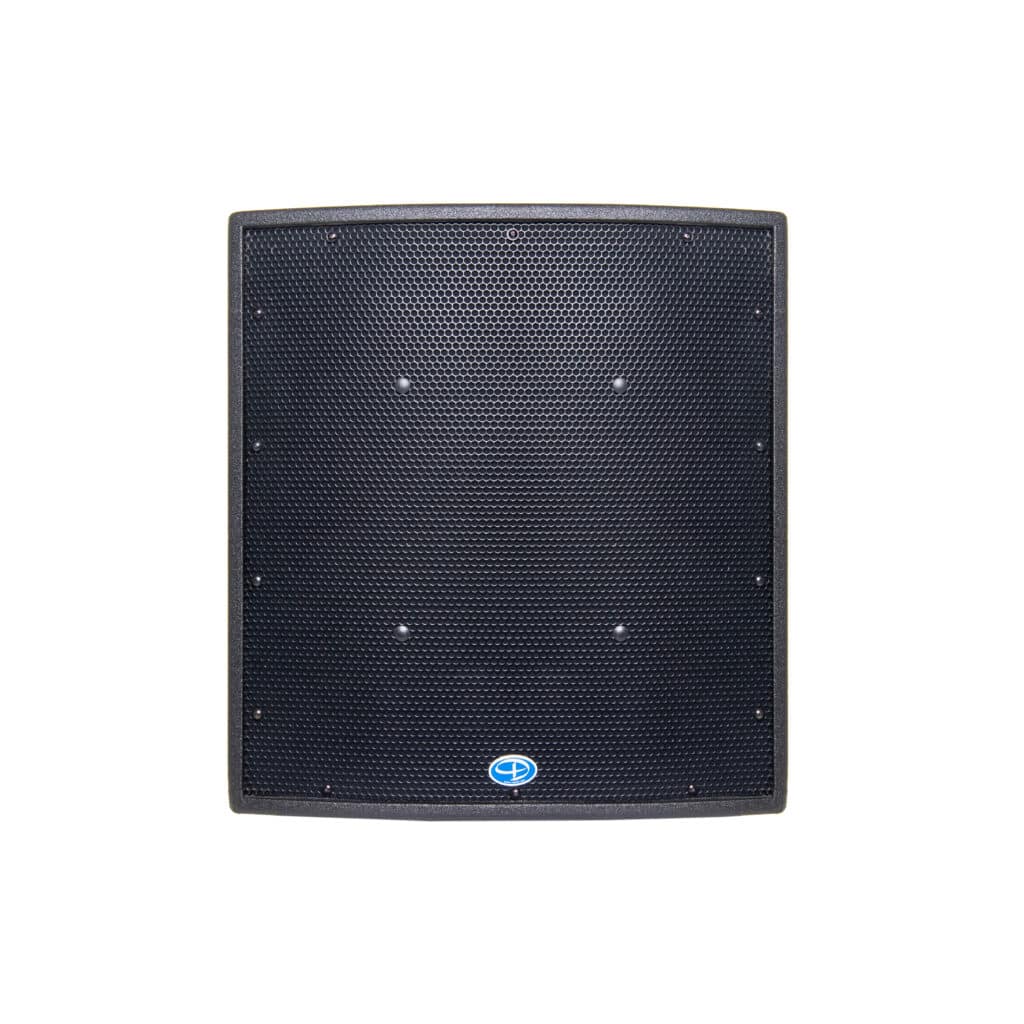

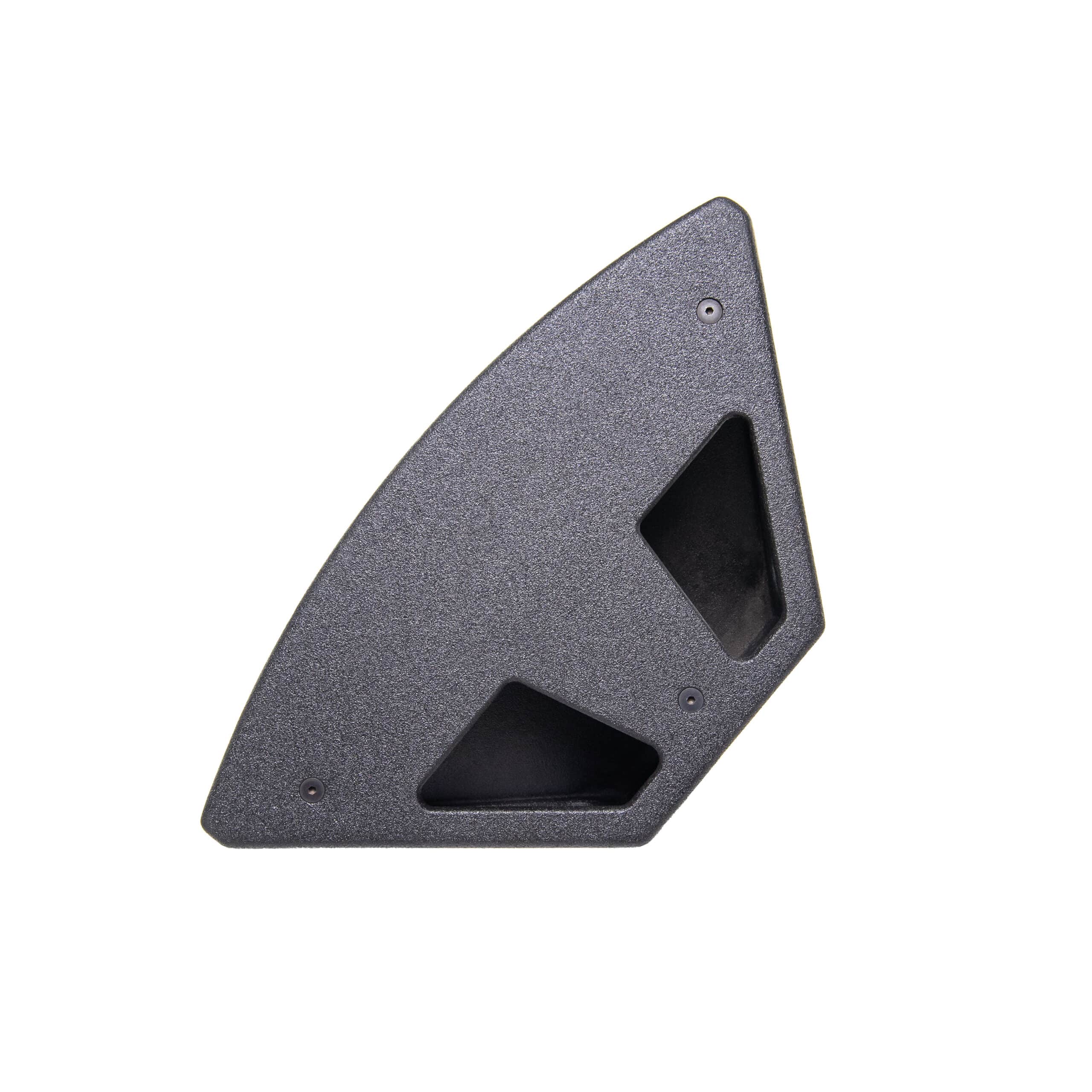

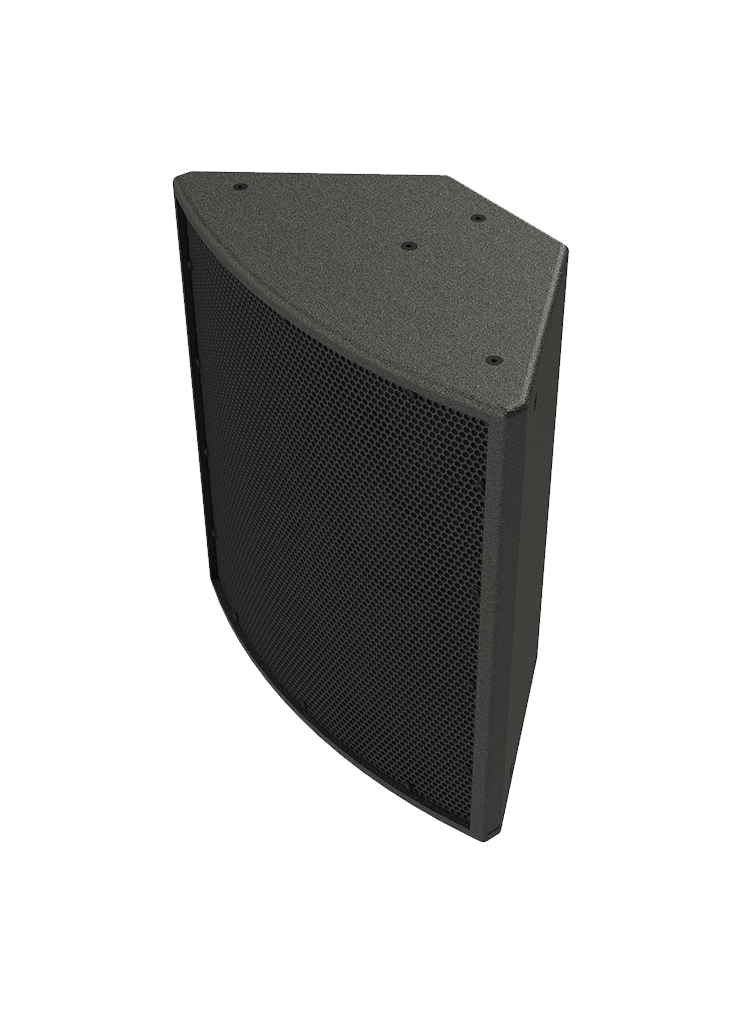

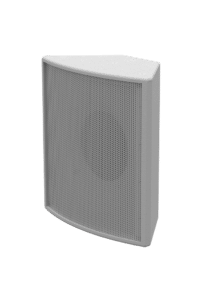

The Danley Sound Labs SM80 molded synergy horn is a compact pole mountable box that is capable of producing SPL and clarity like never before seen in a box this size. Just 2 SM80s will cover the mid-range and highs for most venues!

Find a Distributor

Get the Specs

Download User Manual

View CLF Files (Coming Soon)

Download Spec Sheet

Download 2D / 3D Files

Product Specifications

coverage Pattern

80° Conical

operating frequency range

140Hz-19kHz +/- 3dB
110Hz-22kHz – 10dB

continuous output

128 dB SPL

peak output

134 dB SPL

sensitivity

102 dB SPL

driver complement

1 x 12″ coaxial

dimensions

25.5 x 24 x 12.75 inches

weight

65 lbs

Rated Impedance

8 Ohms

Power Rating

400 Watts Cont.
1600 Watts Peak

Danley Products

SM Family of Products

Danley’s SM family of loudspeakers is simply a smaller, lighter version of our Synergy Horn family. What that means is that SM loudspeakers deliver the same clarity and full range of audio thanks to our proprietary single source technology.

View Other SM Loudspeakers

BRKT-M80

View Product

Protective Covers

View Product
