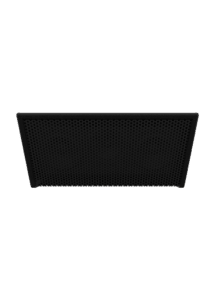

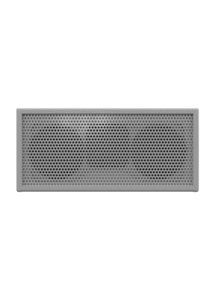

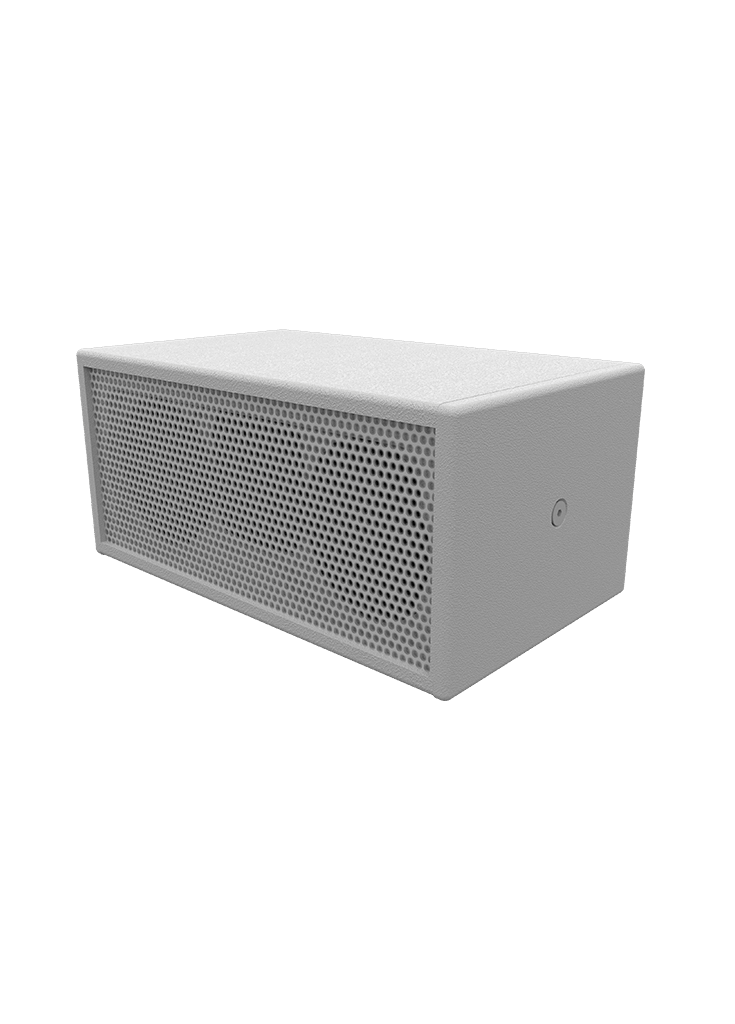

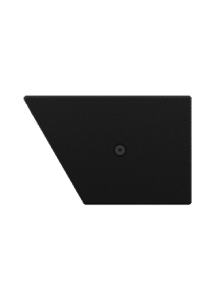

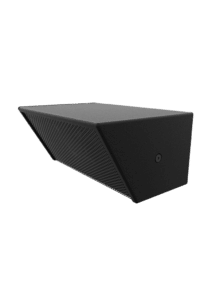

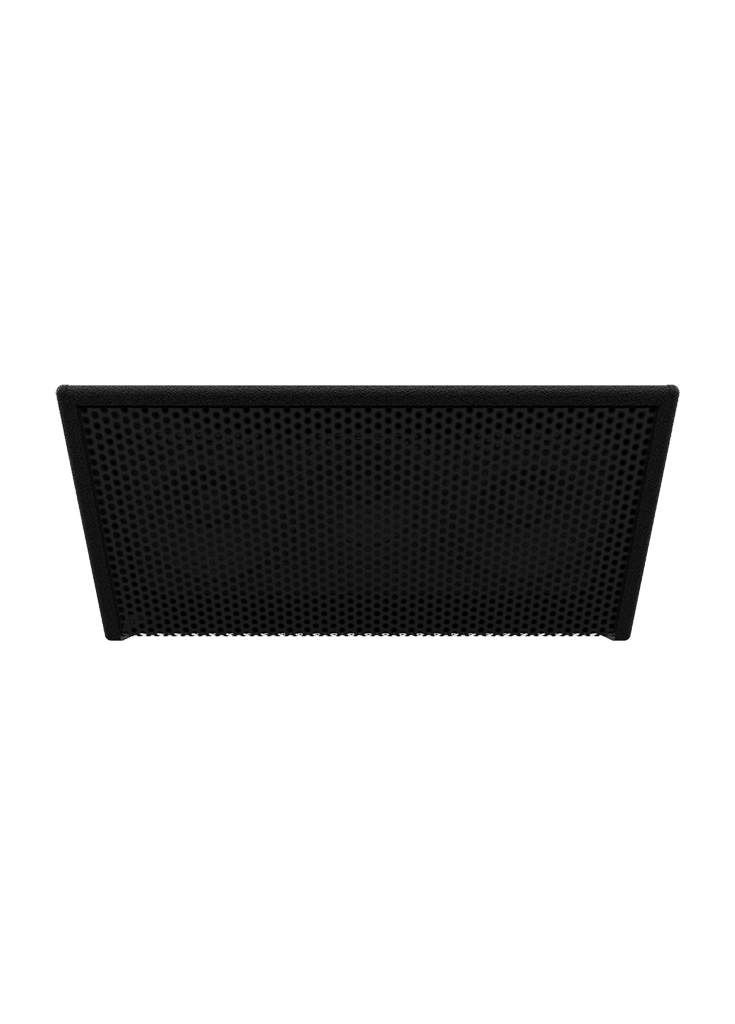

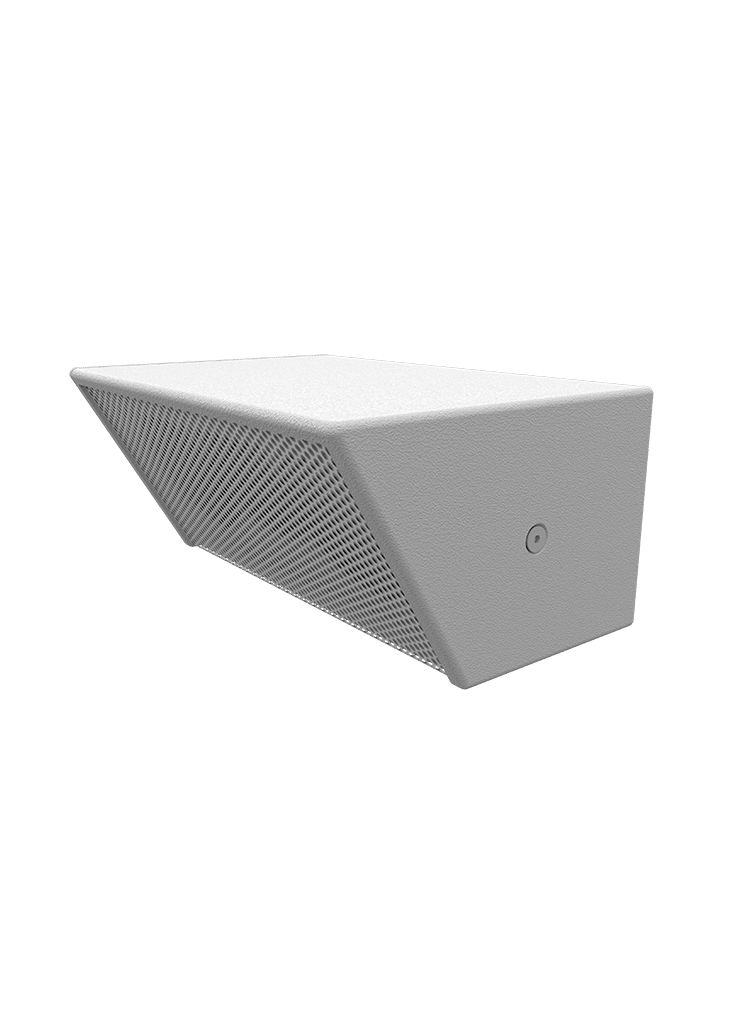

Ultra low profile

SHMicro

SHMicro

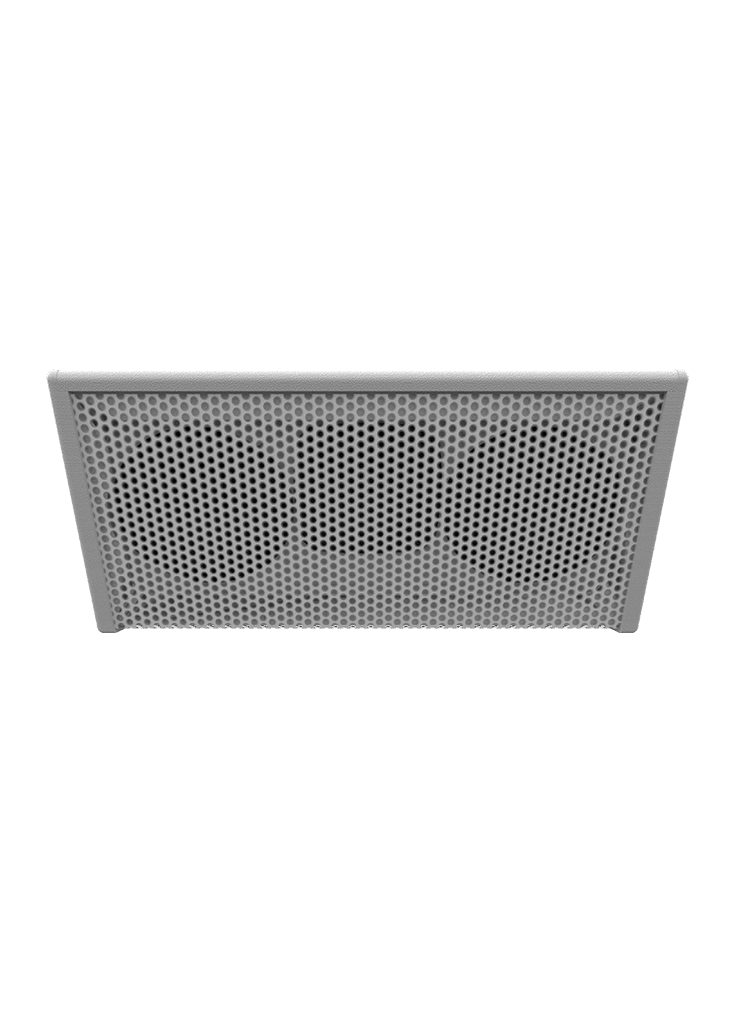

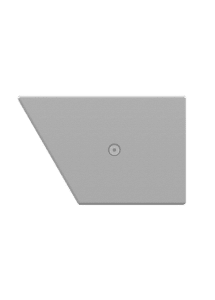

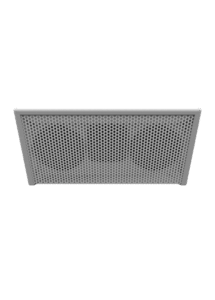

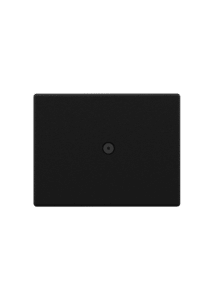

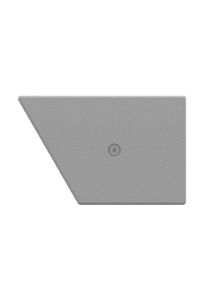

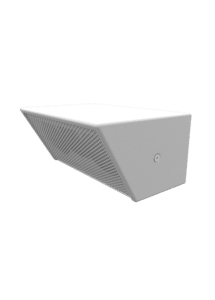

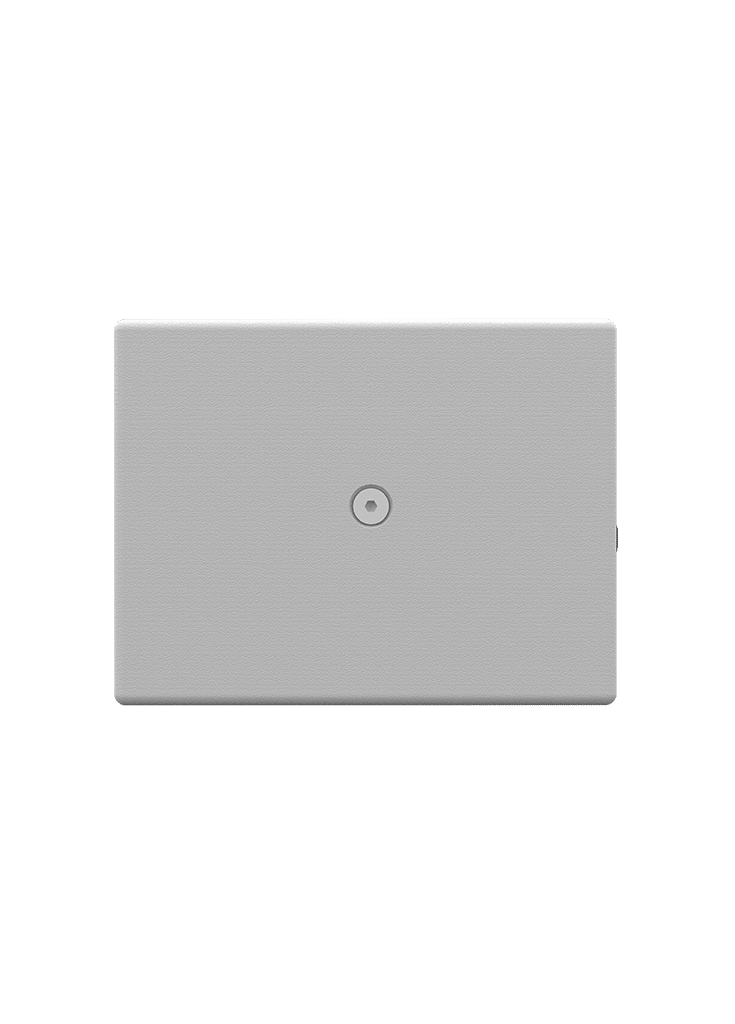

Incredible sound that you can just about hide wherever you like, this ultra-low-profile loudspeaker comes in a package less than 8 inches tall. The SHMicro is popular for under balcony fill and works extraordinarily well as a home theater center channel or with surround systems. Each cabinet houses two 5.5-inch woofers and one 4.5-inch full range loudspeaker.

Product Specifications

Coverage Pattern
90˚ horizontal
90˚ vertical
15˚ down angle
Operating Frequency Range
100 Hz – 15 kHz +/- 3dB
65 Hz – 16 kHz -10 dB
Continuous Output
113 dB SPL
Peak Output
119 dB SPL
Sensitivity
92 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in half space
Magnitude Response
100 Hz- 15 kHz
Driver Complement
Low 2 x 5.5″
Mid/High 1 x 4.5″
Dimensions
18 x 8 x 12.5 inches
Weight
23 lbs
Rated Impedance
8 Ohms
Power Rating
120 Watts Cont.
480 Watts Peak
