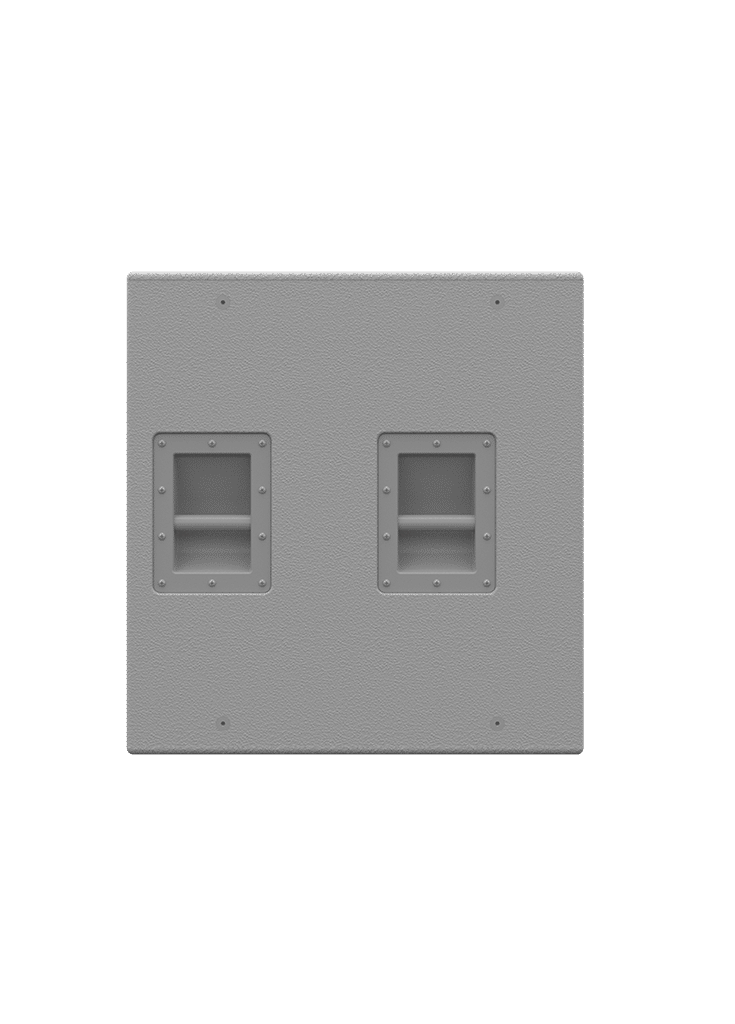

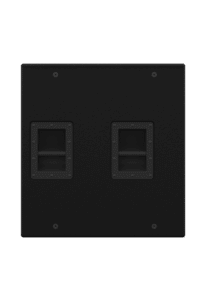

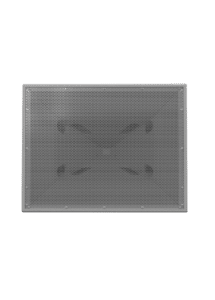

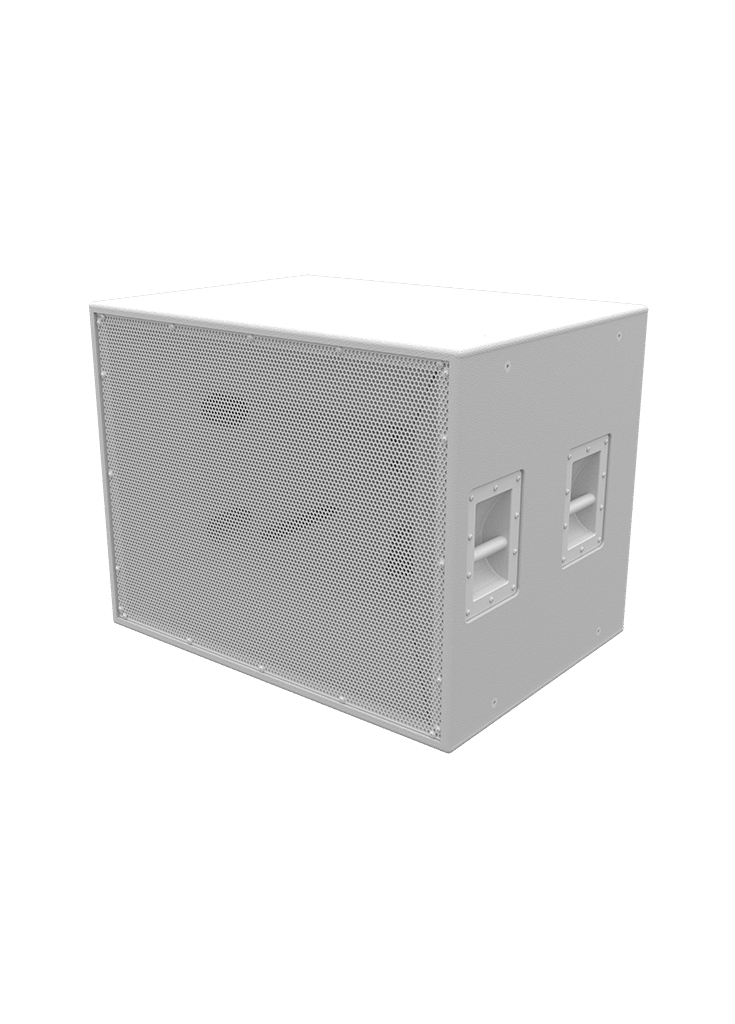

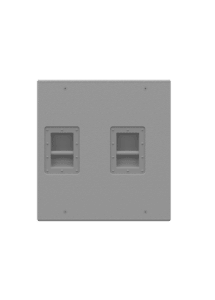

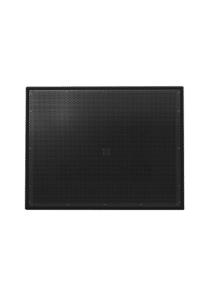

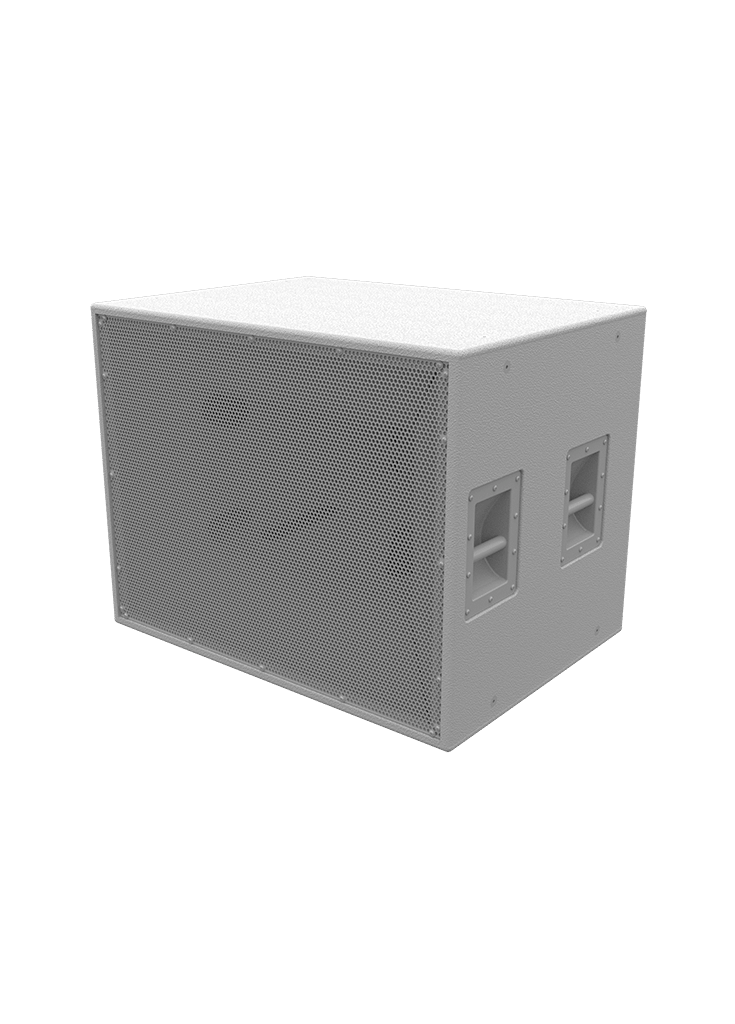

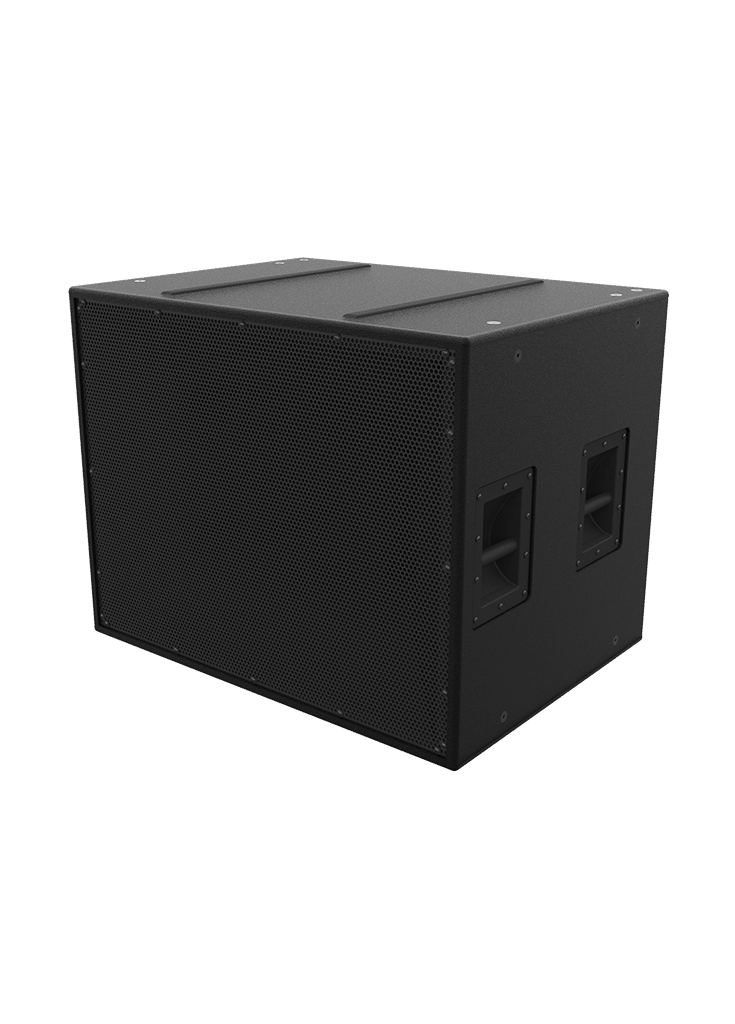

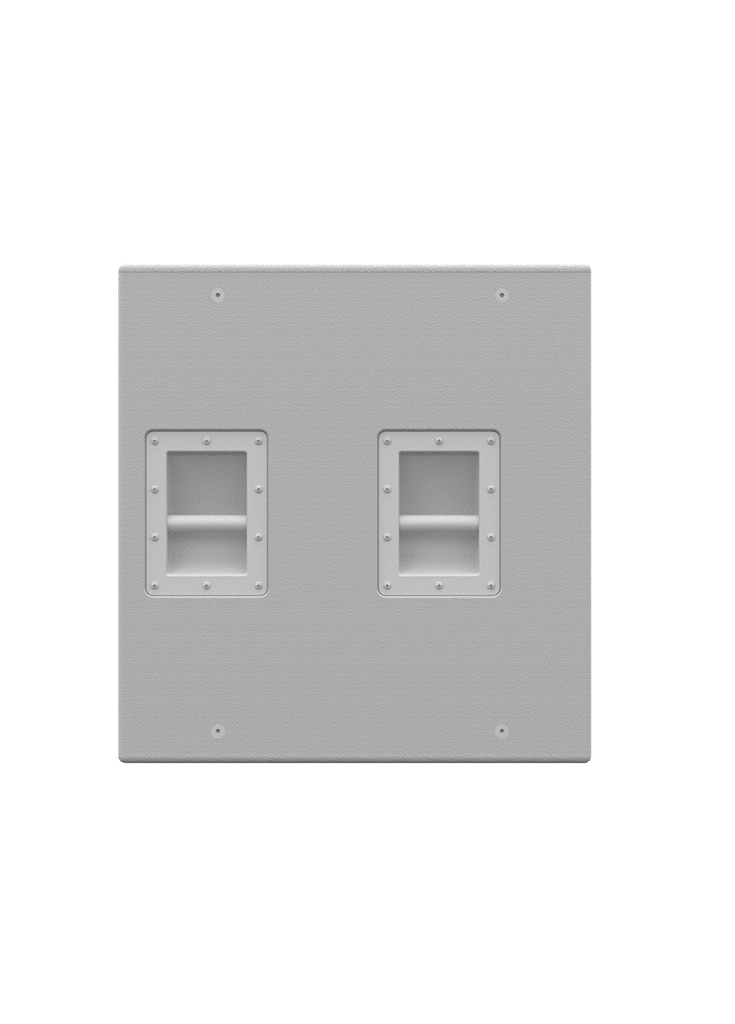

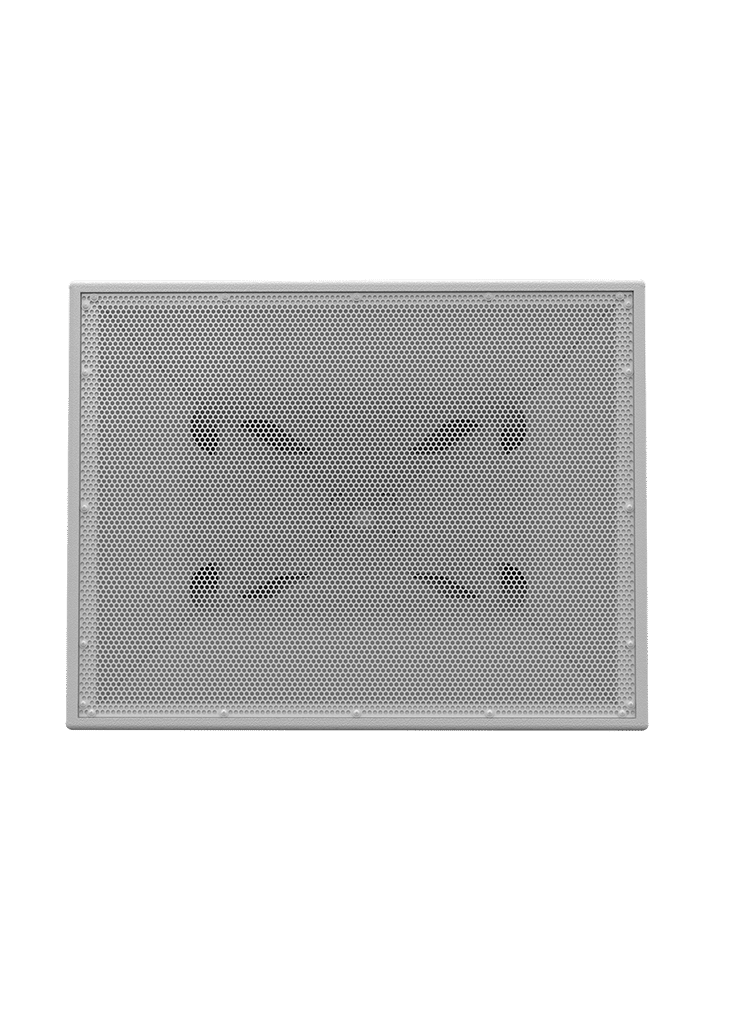

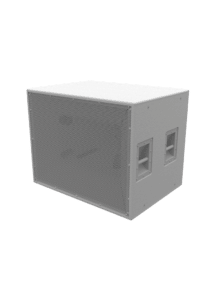

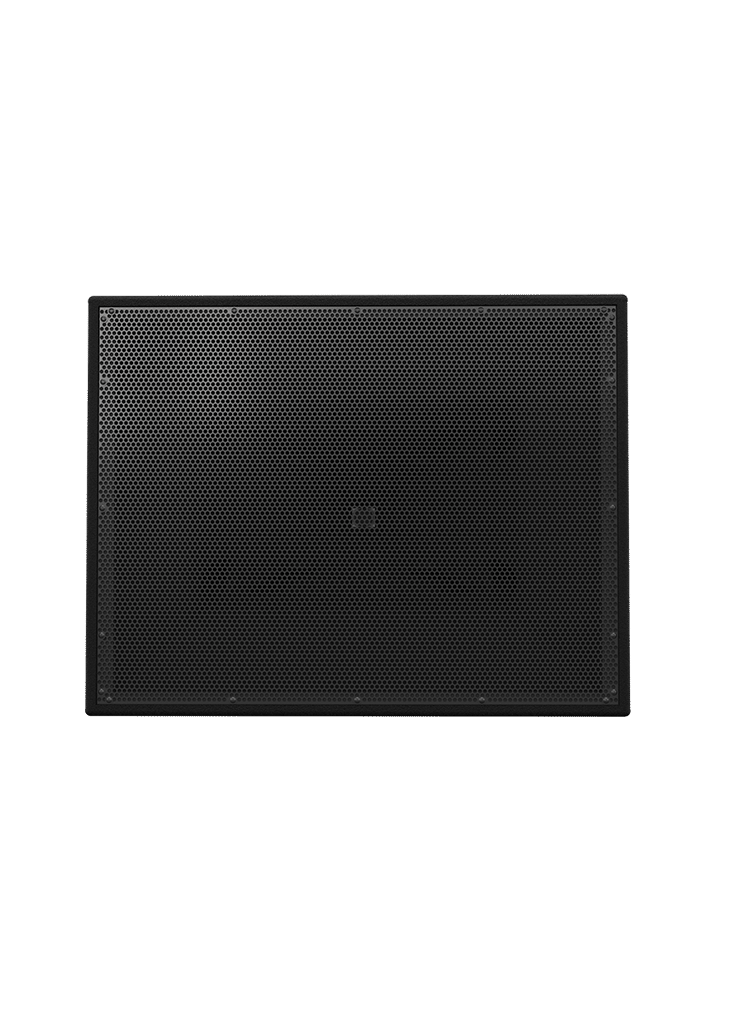

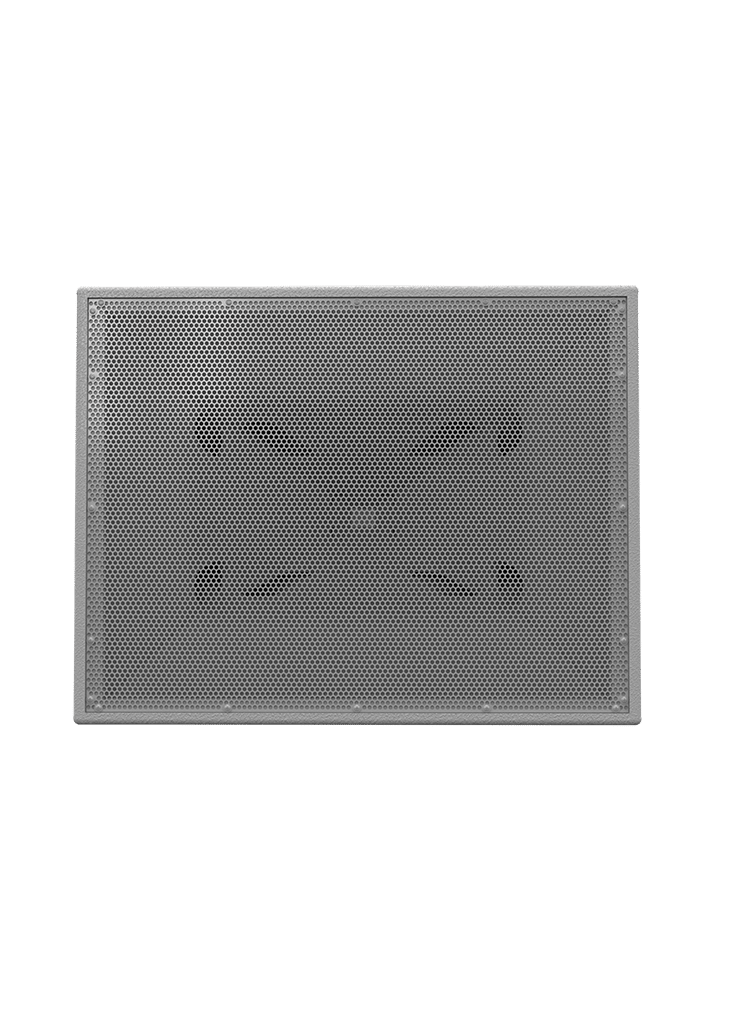

SH64
SH64
This is the single box solution for high output, narrow coverage requirements. In fact, this standalone full range box can cover a broad spectrum of sound needs. With great fidelity, low frequency pattern control and impressive magnitude/phase response, the SH64 is a three-way powerhouse with nine drivers in a single horn providing high SPL and low distortion sound. It is also available in both install or touring versions.
Product Specifications
Coverage Pattern
60˚ horizontal
40˚ vertical
40˚ vertical
Operating Frequency Range
65 Hz – 16 kHz +/- 3 dB
43 Hz – 20 kHz -10 dB
43 Hz – 20 kHz -10 dB
Continuous Output
135 dB SPL
Peak Output
141 dB SPL
Sensitivity
103 dB
(2.83 Volts into
rated Z, at 1 meter)
measured in whole space
(2.83 Volts into
rated Z, at 1 meter)
measured in whole space
Magnitude Response
65 Hz – 16 kHz
Driver Complement
Low 4 x 15″
Mid 4 x 4″
High 1 x 1.4″
Mid 4 x 4″
High 1 x 1.4″
Dimensions
26.5 x 34 x 25 inches
Weight
197 lbs
Rated Impedance
8 Ohms
Power Rating
1400W Cont.
5600W Peak
5600W Peak
