Our Flagship Loudspeaker

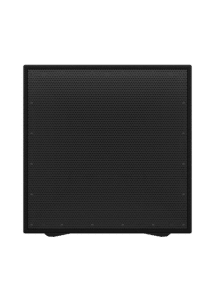

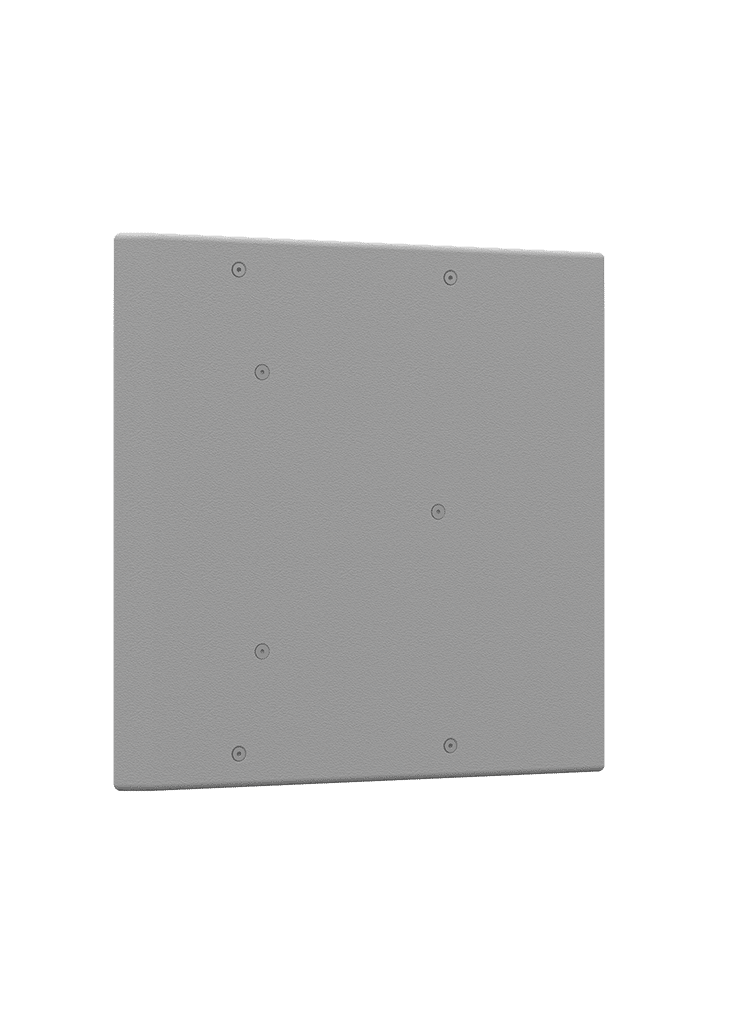

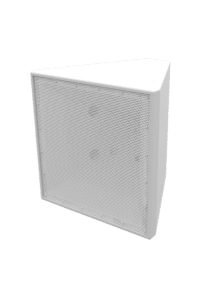

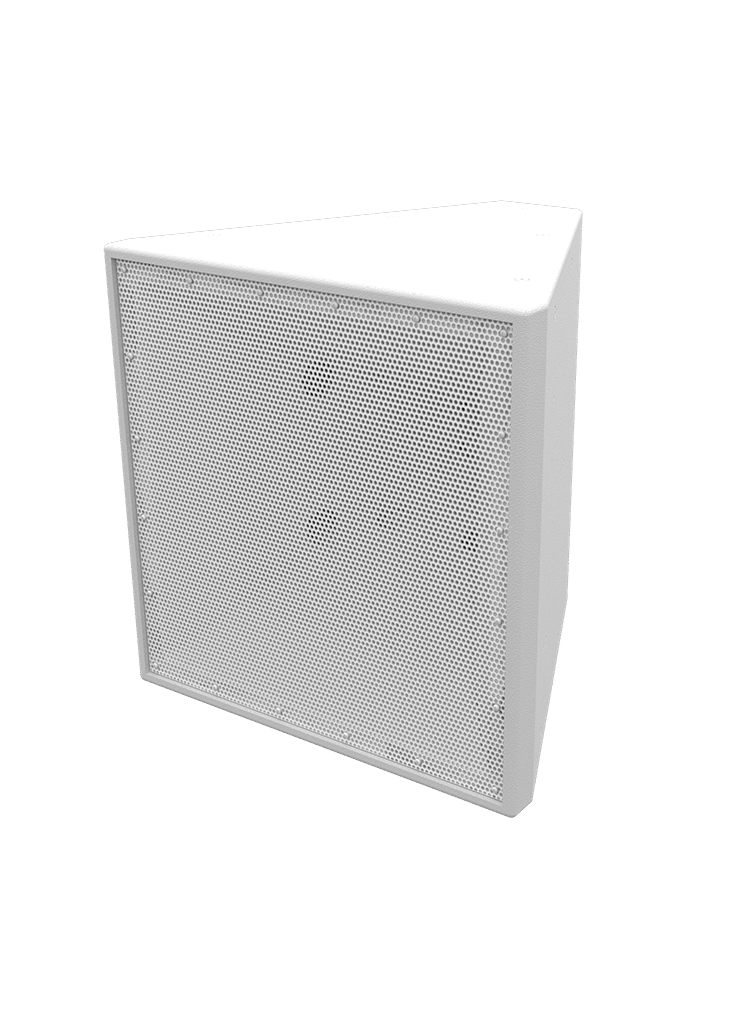

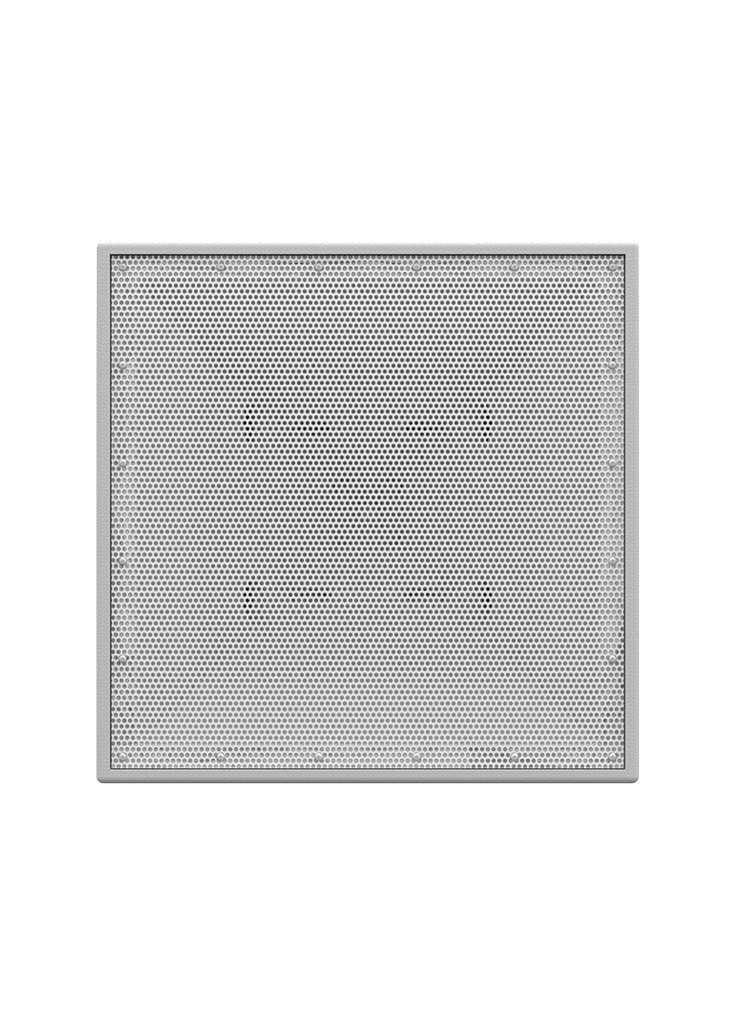

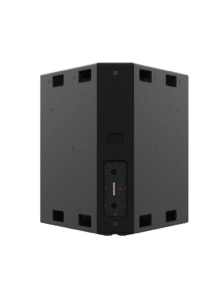

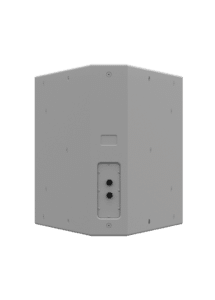

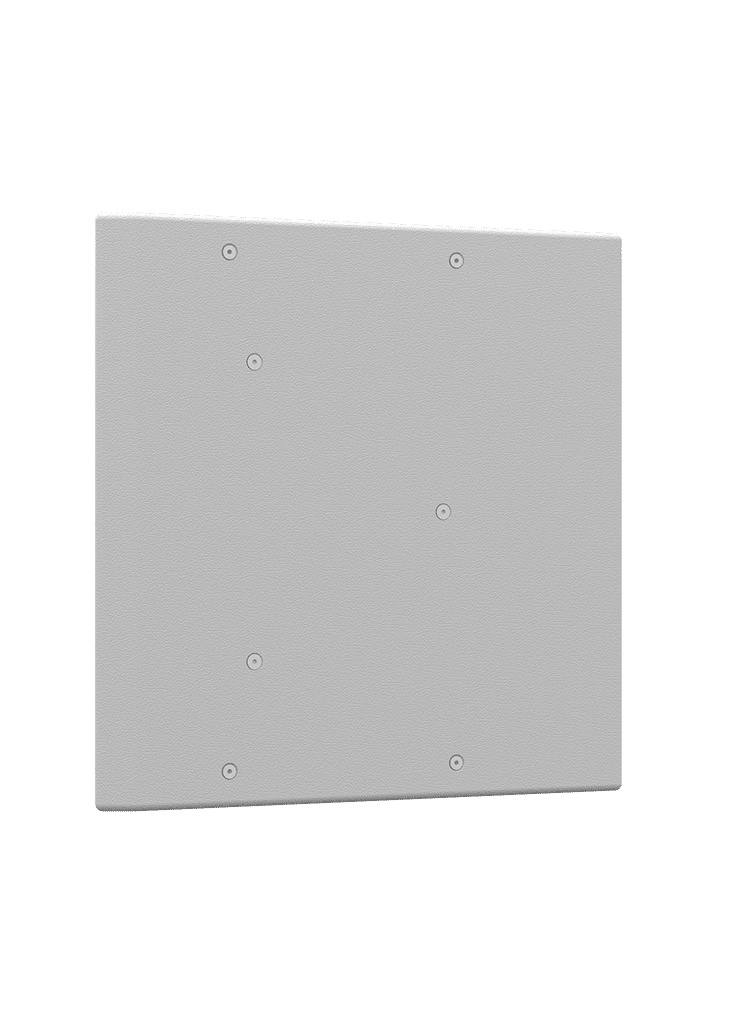

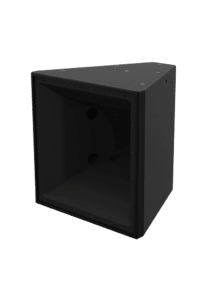

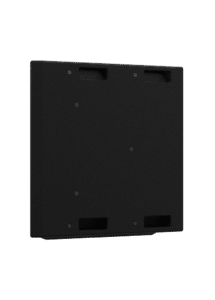

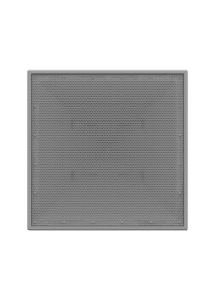

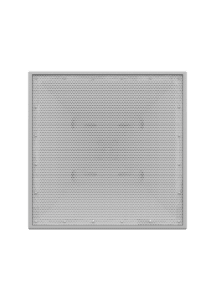

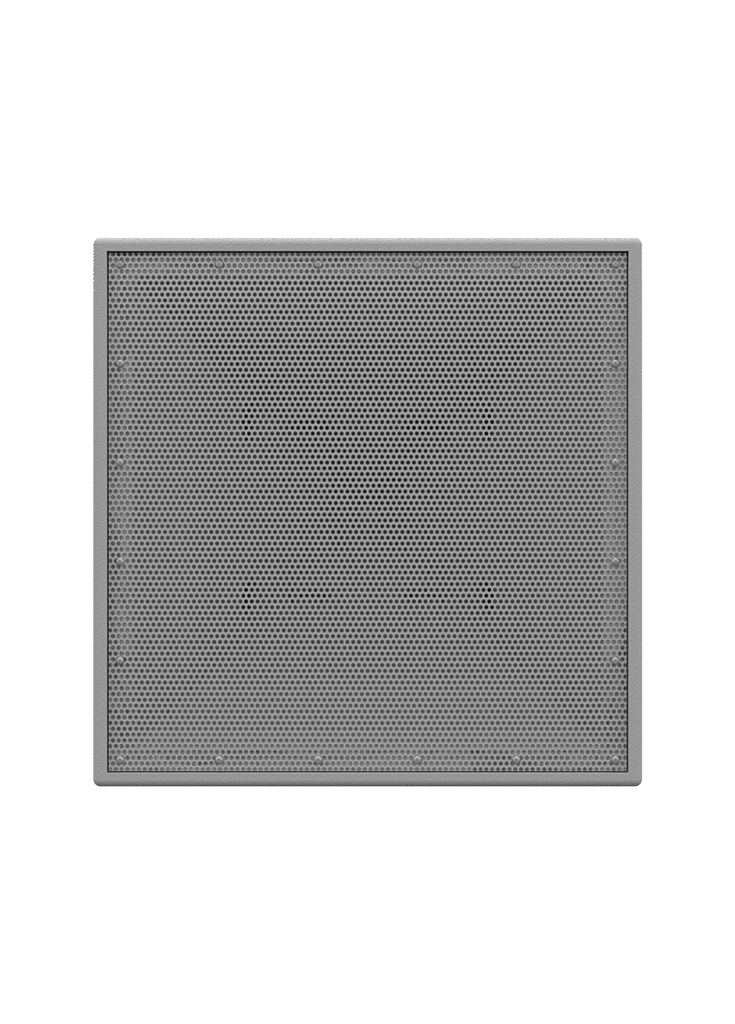

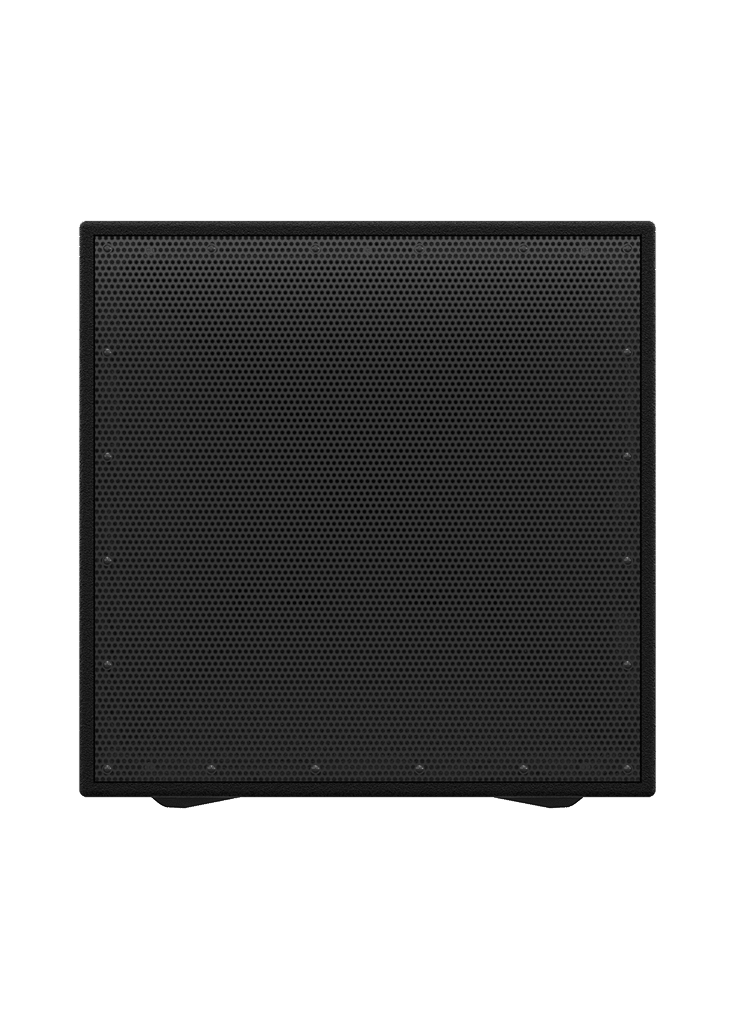

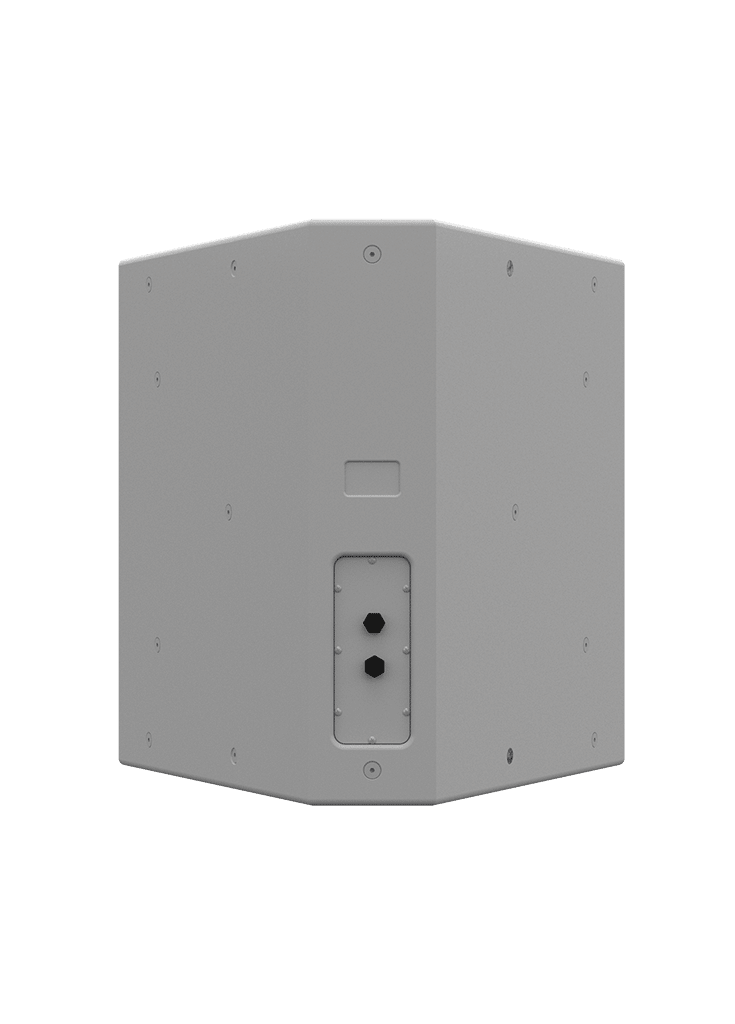

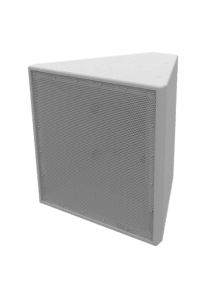

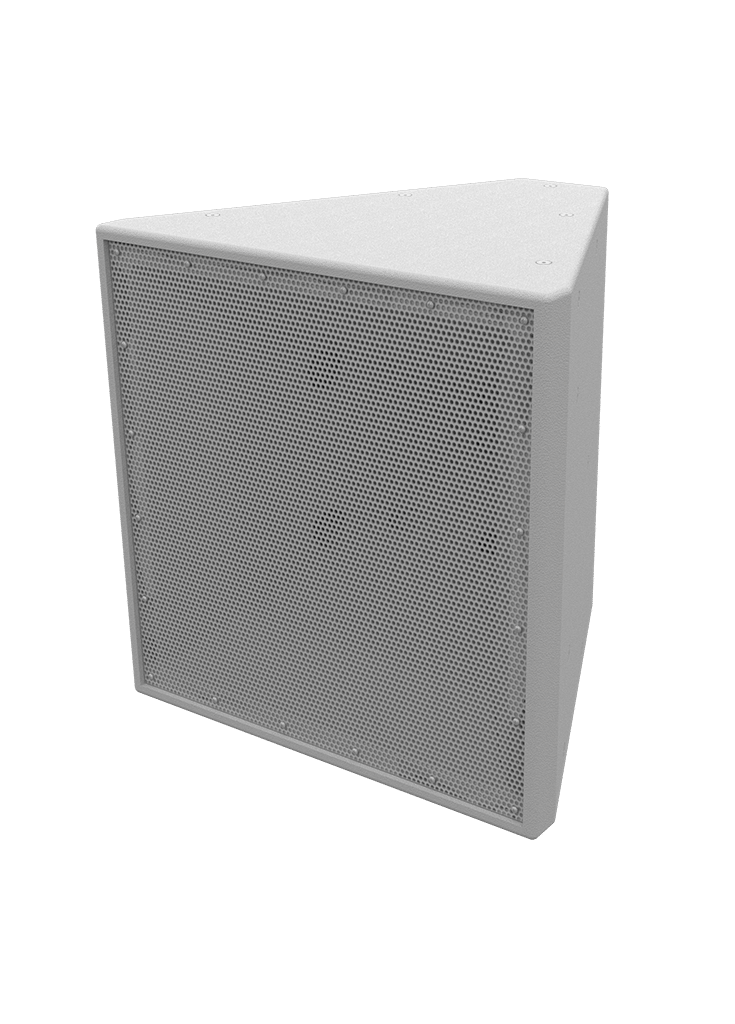

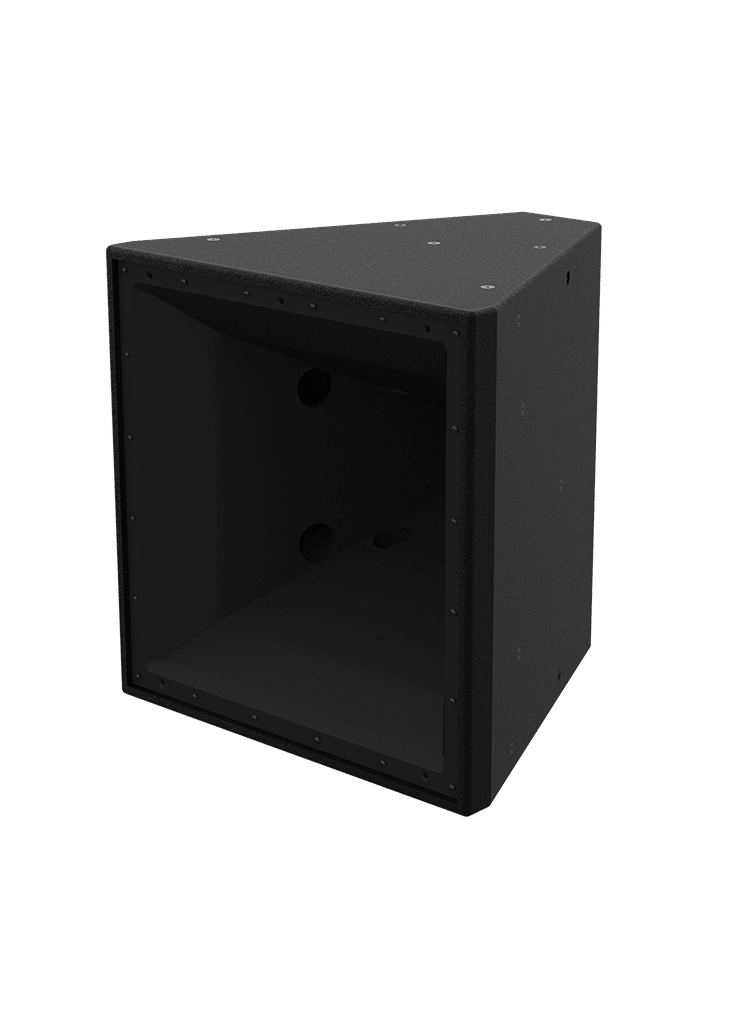

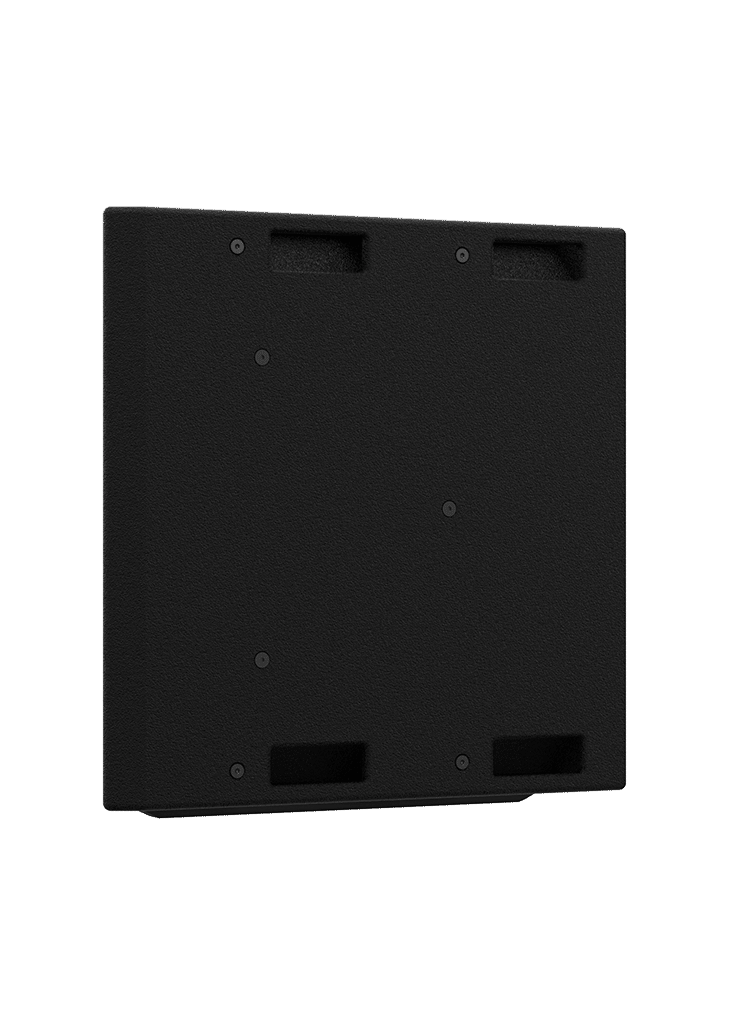

SH50
SH50
The flagship of our Synergy Horn™ line, this loudspeaker provides great fidelity, low frequency pattern control and unrivaled magnitude/phase response in the coverage angle. Like other Synergy Horns™, it has the added benefit of truly modular array-ability, and it also delivers high SPL and low distortion sound reproduction.
Product Specifications
Coverage Pattern
50˚ horizontal
50˚ vertical
50˚ vertical
Operating Frequency Range
50 Hz – 18 kHz +/- 3 dB
37 Hz -24 kHz -10 dB
37 Hz -24 kHz -10 dB
Continuous Output
127 dB SPL
Peak Output
133 dB SPL
Sensitivity
100 dB SPL
(2.83 Volts into
rated Z, at 1 meter)
measured in
whole space
(2.83 Volts into
rated Z, at 1 meter)
measured in
whole space
Magnitude Response
50 Hz – 18 kHz
Driver Complement
Low 2 x 12″
Mid 4 x 4″
High 1 x 1″
Mid 4 x 4″
High 1 x 1″
Dimensions
28 x 28 x 25.5 inches
Weight
133 lbs
Rated Impedance
4 Ohms
Power Rating
1000 Watts Cont.
4000 Watts Peak
4000 Watts Peak
